2014 OKUMA LB3000EX-BB-MYW/800
CNC LATHES MULTI AXIS

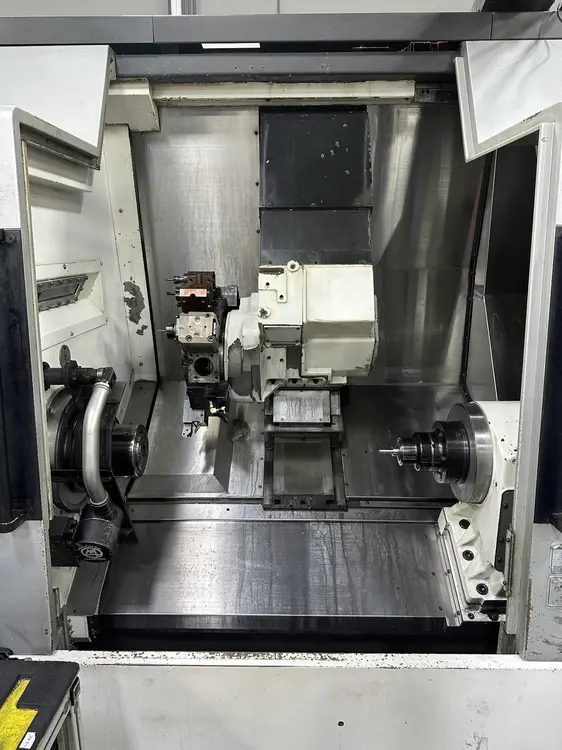

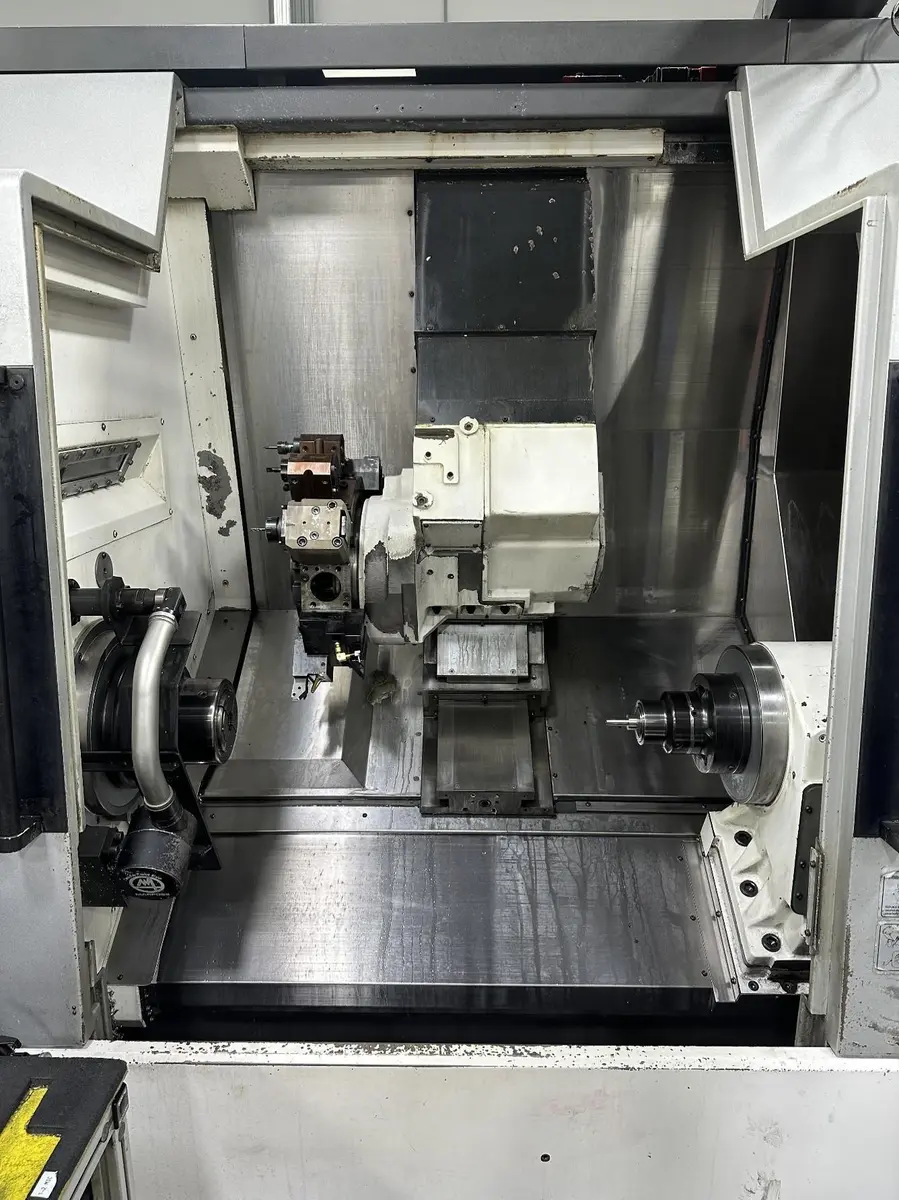

2014 OKUMA LB3000EX-BB-MYW/800 WITH OSP-P300L CONTROL, LNS CHIP CONVEYOR, LIVE TOOLING, SUB SPINDLE AND TOOL PRESETTER.
| Maximum Swing | 22.53" |
| Max Turning Diameter | 13.39" |
| Main Spindle Bore/Max Bar Capacity | 3.25" |
| Tail Stock/Sub Spindle | SUB SPINDLE |
| Distance Between Centers | 42.72" |
| X-Axis Travel (X1, X2, X3) | 10.24" |
| Z-Axis Travel (Z1, Z2, Z3) | 39.76" |
| Y-Axis Travel (Y1, Y2, Y3) | +2.75" > -1.77" |
| C-Axis Indexing (1, 2) | 0.001° |
| W-Axis Travel Sub Spindle | 35.4 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Maximum Bar Work | 3.25" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 9.5 |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Control | CNC (OSP P300L) |
| Dimensions | 151" x 80" x 97" |
| Weight | 15000 lb |
OKUMA OSP-P300L CNC CONTROL
12 POSITION LIVE TOOLING TURRET
LNS CHIP CONVEYOR
COOLANT TANK
LIVE TOOLING
Y-AXIS
SUB SPINDLE
TOOL PRESETTER
