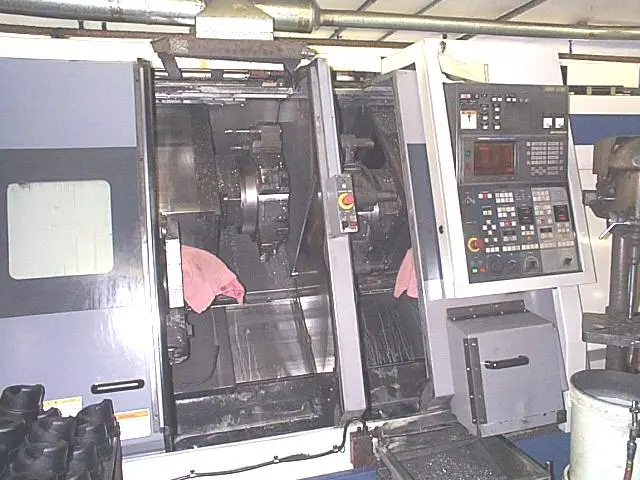

MORI SEIKI DL-25MC TWIN SPINDLE LATHE WITH MILLING
Have one to sell?
ConditionUsed
1 available
THE MORI SEIKI DL-25MC TWIN SPINDLE LATHE WITH MILLING HAS (2) 10" CHUCKS WITH A 2.7" BAR CAP, FANUC MSC 518TC CNC CONTROL, PARTS CATCHER AND BARFEED INTERFACE.
SPECIFICATIONS:
CHUCK SIZE 10" (2)
SWING OVER BED 14.96"
MAX. DISTANCE BETWEEN SPINDLE NOSE 52.76"
MAX TURNING DIAMETER 11.81"
MAX MACHINING LENGTH 11.81"
SPINDLE NOSE A2-8
BORE DIAMETER 3.15"
BAR WORK CAPACITY 2.7"
RANGE OF SPINDLE SPEED (Main & Sub) 35-3500 RPM
C-AXIS INDEXING (Main & Sub) .001 Deg.
CROSS-SLIDE TRAVEL
(X1-AXIS) 8.5"
(X2-AXIS) 10.2"
LONGITUDINAL TRAVEL
(Z1-AXIS) UPPER TURRET 14.6"
(Z2-AXIS) LOWER TURRET 39.4"
RAPID TRAVERSSE SPEED
(X-AXIS) X1, X2, 472 IPM
(Z-AXIS) Z1 590, Z2 787 IPM
TYPE AND NO OF TOOL STATIONS
TURRET NO.1 (12 Rotary) AUTO VERT. V 12
TURRET NO.2 (12 Rotary) AUTO VERT. V 12
SPINDLE DRIVE MOTOR 25 HP
ROTARY TOOL SPINDLE SPEED 100-3000 RPM
ROTARY TOOL HORSE POWER 5 HP
FANUC MSC 518TC CNC CONTROL
(2) TOOL PRESETTERS
BAR FEED INTERFACE
AUTO PARTS CATCHER
AUTO DOOR
AIR BLOW LEFT
COOLANT SYSTEMS
CENTER PARTICIAN
(2) LIVE ROTARY HOLDERS
3000 RPM MILLING SPINDLE
CUSTOM MACRO B
LOAD MONITOR FUNCTION B
TOOL LIFE MANAGEMENT
ADDITIONAL M-FUNCTION CODES 8 SETS
RT & LFT SPINDLE ORIENTATION
CHIP CONVEYOR
ALL AVAILABLE MANUALS
*1/99 MFG DATE*
