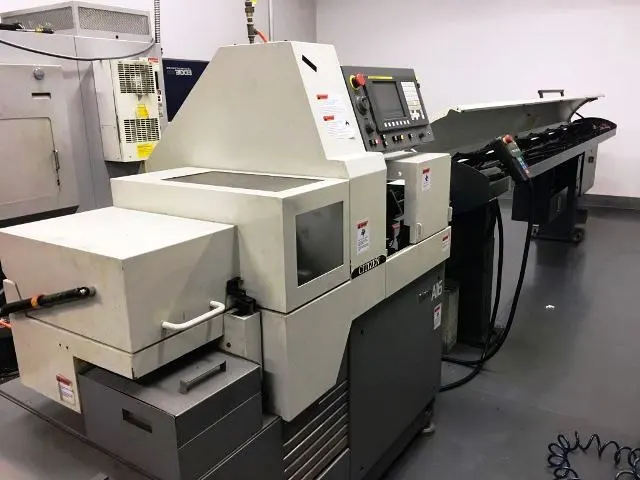

CITIZEN A 16 TYPE IV

SPECIFICATIONS:
MAX. MACHINING DIAMETER .63" (16MM)
MAX. MACHINING LENGTH 5.31"/2.24" (135MM/62MM)
W/ROTARY GUIDE BUSHING DEVICE
MAX. FRONT DRILLING DIAMETER .24" (6MM)
MAX. FRONT TAPPING SIZE (W/TAP & DIE): M6
SPINDLE THROUGH-HOLE DIAMETER .79" (20MM)
MAX. SPINDLE SPEED 10,000 RPM
W/ROTARY GUIDE BUSHING DEVICE 6,000 RPM
MAX. DRILLING DIAMETER .2" (5MM)
ROTARY SPINDLE SPEED 4,500 RPM
MAX. CHUCK DIAMETER->BACK SPINDLE .63" (16MM)
MAX. WORKPIECE LENGTH 3.15" (80MM)
FRONT SIDE FROM BACK SPINDLE
MAX. TAPPING DIAMETER M3 IN BACK MACHINING PROCESS
BACK SPINDLE SPEED 6,000 RPM
# OF TOOLS TO BE MOUNTED 16
TURNING TOOLS ON GANG TOOL POST 5
ROTARY TOOLS ON GANG TOOL POST 3
TOOLS FOR FRONT SPINDLE 4
TOOLS FOR BACK SPINDLE 4
TOOL SIZE:
GANG TOOL POST (TOOL) .39" (10MM)
SLEEVE .75" (19.05 MM)
RAPID FEED RATE:
X1/Y1 AXIS 68.9 FT/MIN
Z1/Z2 AXIS 49.21 FT/MIN
A2 AXIS 39.37 FT/MIN
MOTOR:
MAIN SPINDLE 2.2/3.7 KW
TOOL SPINDLE DRIVE 0.4 KW
BACK SPINDLE DRIVE 1.0 KW
CUTTING OIL 0.18 KW
CENTER HEIGHT 39.37" (1,000 MM)
INPUT POWER CAPACITY 4 KVA
AIR PRESSURE & FLOW RATE 0.5 MPA (10 IN/MIN)
