MAZAK INTEGREX 100 IVS
Have one to sell?
ConditionUsed
1 available
THIS INTEGREX 100S HAS A MATRIX CONTROL, 6" CHUCKS, 213 PSI COOLANT THRU, 2ND SPINDLE .0001 AND PARTS CATCHER.
CHUCK SIZE 6"
MAX MACHINING DIAMETER 21.46"
X AXIS TRAVELS 16.14"
Y AXIS TRAVELS 5.51"
Z AXIS TRAVELS 31.69"
B AXIS TRAVELS 225 DEG
TOOL CAPACITY 40
MAIN SPINDLE 6000 RPM/15 HP
SUB SPINDLE 6000 RPM/15 HP
MILLING SPINDLE 12,000 RPM
FLOOR SPACE 118.9" x 85.04"
MAZATROL MATRIX NEXUS CONTROL
213PSI
40 TOOL ATC KM
AND ADDITIONAL TOOL HOLDERS
BB-06 CHUCK WITH 2 THRU HOLE
2ND SPINDLE C .0001

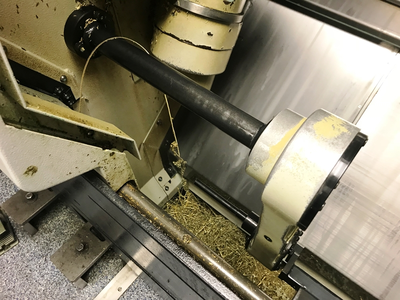

AUTOMATIC PARTS CATCHER
SCALE FEEDBACK SYSTEM FOR X, Y, Z AXIS
C1 C2 SYNCHRONOUS FUNCTION
HIGH SMOOTHING CONTROL
MAZACC 3D HIGH SPEED SOFTWARE PKG
EIA/ISO SIMULTANEOUS 5 AXIS
5 AXIS TOOL RADIUS COMPENSATION
5 AXIS TOOL TIP POINT CONTROL
MAX PROGRAM SIZE 8MB
ETHERNET OPERATION
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
THIS INTEGREX 100S HAS A MATRIX CONTROL, 6" CHUCKS, 213 PSI COOLANT THRU, 2ND SPINDLE .0001 AND PARTS CATCHER.
Imperial
| Maximum Swing | 21.46" |
| Max Turning Diameter | 21.46" |
| Main Spindle Bore/Max Bar Capacity | 2.4/ 2.0 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 13.86" |
| Maximum Cutting Length | 29.65" |
| Distance Between Spindles | 31.18" |
| X-Axis Travel (X1, X2, X3) | 16.14 |
| Z-Axis Travel (Z1, Z2, Z3) | 31.69 |
| Y-Axis Travel (Y1, Y2, Y3) | 5.51 |
| C-Axis Indexing (1, 2) | .0001/ .0001 |
| W-Axis Travel Sub Spindle | 31.3 in |
| Main Spindle Chuck Size | 6" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 6,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 15 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 |
| ATC Magazine Capacity | 40 |
| B-Axis Travel | 225 DEGREES |
| B Axis Rotary Tool Spindle Speed | 12000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 7.5 hp |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | No |
| High Pressure Coolant System (PSI) | 213 |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 118.9" x 85.04" |
CHUCK SIZE 6"
MAX MACHINING DIAMETER 21.46"
X AXIS TRAVELS 16.14"
Y AXIS TRAVELS 5.51"
Z AXIS TRAVELS 31.69"
B AXIS TRAVELS 225 DEG
TOOL CAPACITY 40
MAIN SPINDLE 6000 RPM/15 HP
SUB SPINDLE 6000 RPM/15 HP
MILLING SPINDLE 12,000 RPM
FLOOR SPACE 118.9" x 85.04"
MAZATROL MATRIX NEXUS CONTROL
213PSI
40 TOOL ATC KM
AND ADDITIONAL TOOL HOLDERS
BB-06 CHUCK WITH 2 THRU HOLE
2ND SPINDLE C .0001
AUTOMATIC PARTS CATCHER
SCALE FEEDBACK SYSTEM FOR X, Y, Z AXIS
C1 C2 SYNCHRONOUS FUNCTION
HIGH SMOOTHING CONTROL
MAZACC 3D HIGH SPEED SOFTWARE PKG
EIA/ISO SIMULTANEOUS 5 AXIS
5 AXIS TOOL RADIUS COMPENSATION
5 AXIS TOOL TIP POINT CONTROL
MAX PROGRAM SIZE 8MB
ETHERNET OPERATION
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
