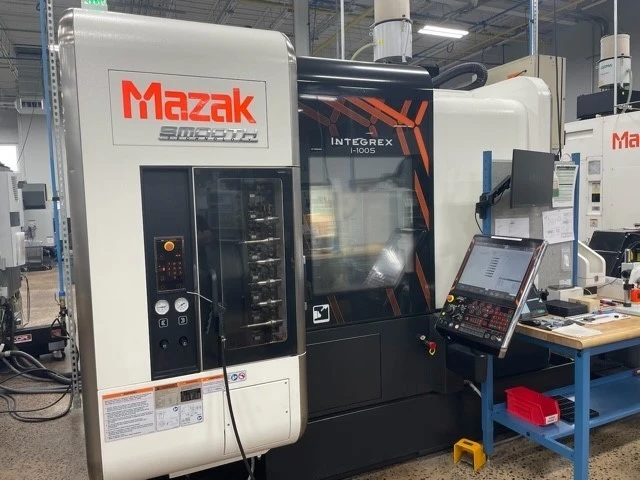

MAZAK INTEGREX i 100S 6-AXIS MULTI-TASKING TURNING CENTER

SPECIFICATIONS:
MAX SWING OVER CARRIAGE          20.9"
MAX MACHINING DIAMETER           19.7"
MAX CUTTING LENGTH               33.6"
MAX DISTANCE BETWEEN CHUCK JAWS  35.55"
X-AXIS STROKE                    17.72"
X-AXIS BELOW SPINDLE CENTER LINE 1.96"
Z-AXIS STROKE                    35.59"
W-AXIS STROKE (2nd SPINDLE)      35.55"
Y-AXIS STROKE                    8.27", +/- 4.13"
B-AXIS STROKE (0.0001 DEG INC)   240 DEGREES
B-AXIS TRAVEL                    -30 TO 210 DEGREES
C-AXIS CONTROL - MAIN/2nd        TRUE C-AXIS
MAIN SPINDLE CHUCK SIZE          6" DIAMETER
MAIN SPINDLE BAR CAPACITY        1.65"
MAIN SPINDLE SPEED               6,000 RPM
MAIN SPINDLE INDEX - PROG TRUE C 0.0001 DEGREE
MAIN SPINDLE MOTOR               10/15 HP
MAIN SPINDLE POWER               105 FT LBS
MAIN SPINDLE C-AXIS CLAMPING TORQUE 1,315 FT LBS
2nd SPINDLE CHUCK SIZE          6" DIAMETER
2nd SPINDLE SPEED               6,000 RPM
2nd SPINDLE INDEX/PROG TRUE C   0.0001 DEGREE
2nd SPINDLE MOTOR               10/15 HP
2nd SPINDLE POWER               105 FT LBS
2nd SPINDLE C-AXIS CLAMPING TORQUE 1,315 FT LBS
TYPE OF TURRET                  1 POSITION
TURRET POSITIONING              0.0001 DEGREE (B-AXIS)
ROTARY TOOL SPINDLE MOTOR       7.5/10/12 HP
ROTARY TOOL SPINDLE SPEED       12,000 RPM
TOOL MAGAZINE CAPACITY          36 TOOLS
TOOL SELECTION METHOD           RANDOM
TOOL-TOOL TIME                  1.3 SEC
MAX TOOL DIAMETER (FULL)        3.54"
MAX TOOL DIAMETER (ADJ EMPTY)   5.12"
MAX TOOL LENGTH                 9.84"
MAXIMUM TOOL WEIGHT             11 LBS
RAPID TRAVERSE -X/Y/Z-AXES      1575 IPM
   W-AXIS                       1181 IPM
   C-AXIS                       555 IPM
   B-AXIS                       40 IPM
