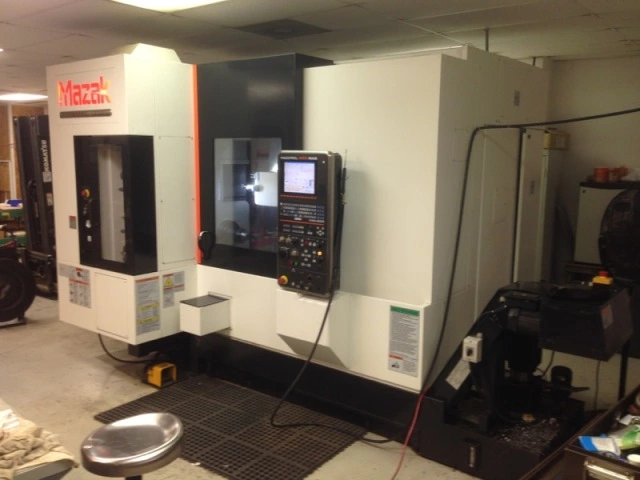

MAZAK INTEGREX J-200

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
INTEGREX J-200
Year:
2011
Stock #:
4126
Status:
For Sale
Serial #:
228328

Description

THIS INTEGREX j-200 HAS A MATRIX NEXUS CONTROL, 8" HYDRAULIC CHUCK WITH 2" BAR CAPACITY, 2 COLLET CHUCKS, Y AXIS, TAILSTOCK, FULL C AXIS AND PARTS CATCHER

Maximum Swing20.87"530.1 mm
Max Turning Diameter19.69"500.13 mm
Main Spindle Bore/Max Bar Capacity2.44/ 2.02.44/ 2.0
Tail Stock/Sub SpindleTail StockTail Stock
Maximum Cutting Length19.69"500.13 mm
X-Axis Travel (X1, X2, X3)17.7217.72
Z-Axis Travel (Z1, Z2, Z3)21.6521.65
Y-Axis Travel (Y1, Y2, Y3)+/- 3.94"+/- 3.94"
C-Axis Indexing (1, 2)0.001 DEGREE/ 360,000 POSITIONS0.001 DEGREE/ 360,000 POSITIONS
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.44"61.976 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)1515
ATC Magazine Capacity3636
B-Axis Travel-30 - 190 (5 DEGREE INCREMENTS)-30 - 190 (5 DEGREE INCREMENTS)
B Axis Rotary Tool Spindle Speed12,000 RPM12000 rpm
B-Axis Rotary Tool Spindle Horsepower10 hp
Parts CatcherYesYes
Chip ConveyorYesYes
High Pressure Coolant System (PSI)213213
ControlCNC (MAZATROL MATRIX NEXUS)CNC (MAZATROL MATRIX NEXUS)
Weight13,530 LBS13,530 LBS

SPECIFICATIONS:
MAX. SWING                             20.87"
MAX. CUTTING DIA.(CHUCKING)            19.69"
MAXIMUM CUTTING LENGTH                 19.69"
SPINDLE BORE                           2.44"
SPINDLE NOSE                           A2-5"
MAXIMUM BAR CAPACITY                   2"
SPINDLE SPEEDS                         5000 RPM
SPINDLE INDEX                          0.001 DEGREE
                                       360,000 POSITIONS
SPINDLE HORSEPOWER                     15 HP AC
TAILSTOCK                              N/C CONTROLED
TYPE OF TURRET                         1 POSITION W/ATC
TOOL SHANK                             KM STYLE
MAGAZINE CAPACITY                      36 ATC
MAX. BORING BAR DIAMETER               1.25"
MAX. TOOL DIAMETER W/ALL POCKETS FULL  2.76"
MAX. TOOL DIAMETER W/ ADJACENT
                POCKETS EMPTY          3.54"
MAX. TOOL LENGTH                       7.87"
MAX. TOOL WEIGHT                       8.8 LBS.
ROTARY TOOL SPINDLE SPEEDS             12,000 RPM
ROTARY TOOL SPINDLE HORSEPOWER         10 HP AC
B-AXIS                                 225 DEGREES
                                       (1 DEG. INCREMENTS)
Y-AXIS                                 +/- 3.94"
TAILSTOCK TRAVEL                       14.14"
TAILSTOCK CENTER                       MT #4
RAPID TRAVERSE RATE (Y/X/Z )           1024/1181/1299 IPM
 C-AXIS                                400 IPM
B-AXIS                                 0.5 SEC./90 DEGREE
MACHINE WEIGHT                         13,530 LBS

MAZATROL MATRIX NEXUS CONTROL
12.1" COLOR LCD
LAN PORT
USB I/F
EIA/ISO LATHE & MILL SPINDLE INDEPENDENT ROTATION
USER MACRO (COMMON VARIABLES:600 PAIRS)
EIA/ISO CODE INPUT FUNCTION (STANDARD)
ADDITIONAL EIA/ISO FUNCTIONS (REQUIRES EIA/ISO)
     THIS PACKAGE INCLUDES THE FOLLOWING:
     MACRO INTERRUPTION
     HELICAL INTERPOLATION (EIA/ISO)
     SELECTION OF WORKPIECE COORDINATE SYSTEM (G54-G59)
     COORDINATE SYSTEM ROTATION (EIA) (B-AXIS)
INVERSE TIME FEED
SEQUENCE NUMBER COMPARISON STOP FUNCTION
3-D COORDINATE CONVERSION
B)G00 SLOPE CONSTANT
B)MAZACC-2D SOFTWARE(SHAPE COMPENSATION)
B)SHAPE COMPENSATION FOR ROTARY AXES
ADD. WORKPIECE COORDINATE SYS. 300-PAIRS
THREAD CUTTING FUNCTION
INCH/METRIC CONVERSION
POLAR COORDINATES INPUT (G122)
DIRECT ENTRY OF DRAWINGS DIMENSIONS
EIA PATTERN CYCLE (GRID, ARC)
B)CYLINDRICAL(G07)&POLAR COORDINATE(G12)
ACTIVE VIBRATION CONTROL
INTELLIGENT THERMAL SHIELD
MAZAK VOICE ADVISER
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
Y-AXIS CONTROL
COOLANT
COOLANT THROUGH MILLING HEAD
CHIP CONVEYOR SIDE DISPOSAL (HINGE TYPE)

8" KITAGAWA CHUCK WITH HARD AND SOFT JAWS
(2) COLLETT CHUCKS
20 HOLDERS (CUSTOMERS CHOICE) SOME VERY EXPENSIVE
36 KM-TOOL MAGAZINE
B-AXIS INDEX 1 DEGREE(COUPLING CLAMP)
AUTO PARTS CATCHER (2.5"DIA. X 4.72"L X 5.5LB)
HIGH PRESSURE 15KG/213 PSI THRU COOLANT/ FLOOD SIMUL-FLOWABLE
ROTARY TOOL MILLING SPINDLE
MAZAK TAPPING/BORING TORNADO (EIA/ISO)
B)MILLING-SPINDLE SYNCHRONOUS TAPPING
ROTARY-TOOL SPINDLE SPEED 12000 RPM

8" THRU-HOLE CHUCK B-208A615 WITH THRU-HOLE CYLINDER S-1552
NOTE: 2" DIA. BAR CAPACITY
C-AXIS 0.0001 DEGREE INCR.
MAIN SPINDLE MOTOR AC 11KW(15HP)
SPINDLE SPEED 5000 RPM

ROLLER GUIDE
ABSOLUTE POSITIONING SYSTEM (LINEAR AXES)
X,Y,Z PITCH ERROR COMPENSATION INPUT
FULL COVERAGE CHIP AND COOLANT GUARD
WORK LIGHT
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
THE SAFETY MEASURES ON WORLDWIDE LEVEL
PROGRAMMABLE TAILSTOCK(DEAD CENTER MT5)
TAILSTOCK THRUST SELECT
LIVE CENTER (5000 RPM) (NSK/LC-5SW)
TOOL EYE (AUTOMATIC)
