MAZAK POWERMASTER 3000U / 12.5" BORE
Have one to sell?
ConditionUsed
1 available

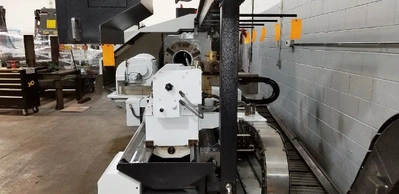

THS POWERMASTER 3000 HAS 120" CENTERS, A 24" AIR CHUCK WITH A 12.5" BORE AND MAZATROL FUSION 640 CONTROL.
SPECIFICATIONS:
SWING OVER BED 34"
MAXIMUM MACHINING DIAMETER 34"
SWING OVER CROSS SLIDE 21.65"
MAX MACHINING DIAM - SHAFT WORK 21.65"
DISTANCE BETWEEN CENTERS 122.5"
SPINDLE BORE DIAMETER 12.5"
SPINDLE NOSE A2 - 20"
SPINDLE SPEEDS 2 - 500 RPM
TURRET CONFIGURATION 8 (OCT) 6 (HEX)
NUMBER OF TOOLS 14
X - AXIS TRAVEL 25.79"
Z - AXIS TRAVEL 123"
RAPID TRAVERSE RATE X, Z 472, 472 IPM
TAIL STOCK QUILL DIAMETER 5.9"
TAILS STOCK QUILL TRAVEL 6.3"
MAIN MOTOR 60/ 40 HP
MAZATROL FUSION 640 PRO CNC CONVERSATIONAL CONTROL
24" 3 JAW AIR CHUCK W/ 12.5'' BORE
TURRET CONFIGURATION - 8 (OCT) 6 (HEX)
600 MACRO VARIABLES
BACKGROUND TOOL PATH CHECK
CHANGE TO EIA
DIRECT DRAWING SIZE INPUT
EAI HELICAL TAP
EIA COORDIANTE ROTATION
EIA HELICAL INTERPOLATION
EIA/ISO PROGRAMMING
PITCH ERROR COMPENSATION
POLAR COODINATES INPUT
RAPID TRAVERSE
REAR CHUCK PREPARATION
RE-THREAD
THREAD START POINT COMPENSATION TRANSFORMER
USER MACRO
USER MACRO INTERUPT
WORK COODINATE SELECT
CHIP CONVEYOR

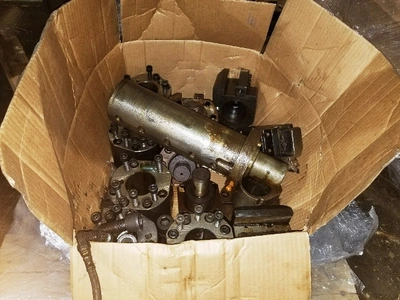

ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
