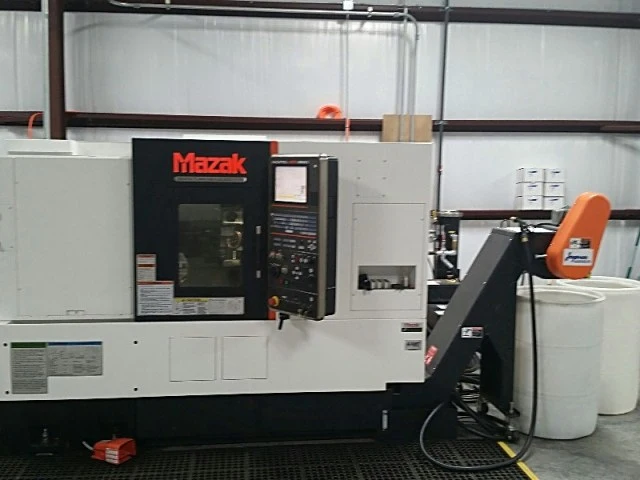

MAZAK QTN 250-II M TURNING AND MILLING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 250-II M
Year:
2014
Stock #:
3883
Status:
For Sale

Description

THIS QTN 250M HAS A MATRIX 2 CONTROL, 12" HYDRAULIC CHUCK WITH 3" THROUGH HOLE, 1000 PSI COOLANT THRU, AND TAILSTOCK.

Maximum Swing26.5"673.1 mm
Max Turning Diameter14.7"373.38 mm
Main Spindle Bore/Max Bar Capacity3.46/ 3.03.46/ 3.0
Tail Stock/Sub SpindleTail StockTail Stock
Maximum Swing Over Cross Slide14"355.6 mm
Distance Between Spindles22"558.8 mm
X-Axis Travel (X1, X2, X3)99
Z-Axis Travel (Z1, Z2, Z3)22.7522.75
C-Axis Indexing (1, 2).0001 N/C CONTOURING.0001 N/C CONTOURING
Main Spindle Chuck Size12"304.8 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.46"87.884 mm
Main Spindle Maximum Bar Work3.03"76.962 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3535
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 27.57.5
Chip ConveyorSideSide
Milling Spindle Synchronous TappingYesYes
Tool Eye Automatic Front SpindleYesYes
High Pressure Coolant System (PSI)10001000
Multi Tap TransformerYesYes
ControlCNC (MAZATROL MATRIX II)CNC (MAZATROL MATRIX II)
Weight13,023 LBS13,023 LBS

 SPECIFICATIONS:
 MAX. SWING                                  26.5"
 SWING OVER CARRIAGE                         14.00"
 MAX. MACHINING DIA.                         14.7"
 MAX. DISTANCE BETWEEN SPINDLES              22"
 SPINDLE BORE                                3.46"
 MAIN SPINDLE CHUCK SIZE                     12"
 MAIN SPINDLE C - AXIS                       .0001 N/C
                                             CONTOURING
 SPINDLE NOSE                                A2-8"
 MAX BAR CAPACITY                            3.03"
 SPINDLE SPEEDS                              4000 RPM
 X - AXIS                                    9"
 Z - AXIS                                    22.75"
 RAPID TRAVERSE X,S,Z                        1181,1181, 1299 I
 C-AXIS                                      555 RPM
 TURRET TYPE                                 12 TRT
 TAILSTOCK TRAVEL                            19.75"
 ROTARY TOOL SPEED                           4500 RPM
 ROTARY TOOL HORSEPOWER                      7.5 HP AC
 MAIN MOTOR                                  35 HP AC
 MACHINE WEIGHT                              13,023 LBS.

MAZATROL MATRIX II W/12.1" COLOR CNC CONTROL
 EIA/ISO INPUT PROGRAMMING
 USB,LAN,WINDOWS 7
 12" 3 JAW HYDRAULIC THRU HOLE
 .0001 C-AXIS
 MT CONNECT (PREP)
 AUTOMATIC TOOL EYE
 SYNC TAP ON MILL HEAD
 HIGH POWER COOLANT THRU MILLING HEAD
 1000 PSI SUPERFLOW COOLANT SYSTEM
 TRANSFORMER
 PROGRAMMABLE TAILSTOCK
 CHUCK OPEN/CLOSE
 USER MACRO 600 VARIABLES
 CHIP CONVEYOR RIGHT SIDE DISCHARGE
 ALL AVAILABLE STANDARD TOOL HOLDERS
 ALL AVAILABLE MANUALS
