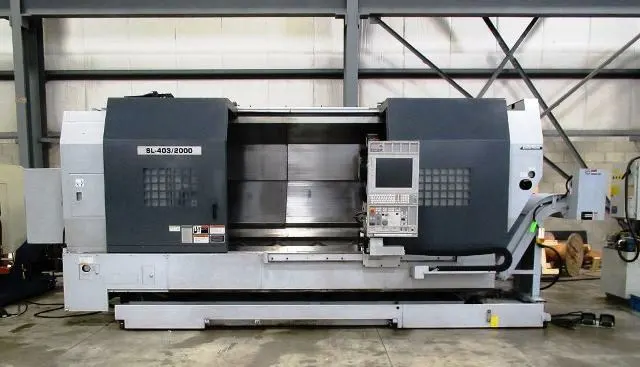

MORI SEIKI MODEL SL-403CMC/2000
Have one to sell?
ConditionUsed
1 available
HARDLY USED 2015 MORI SEIKI MODEL SL-403CMC/2000 SWINGS 37", HAS 91" BETWEEN CENTERS, 1500 RPM SPINDLE, 18" KITAGAWA BB218 BIG BORE (6.55") CHUCK ALONG WITH A FANUC 32iB CONTROL AND LNS STEADY REST.
SPECIFICATIONS
SWING OVER BED 36.8”
SWING OVER CROSS SLIDE 29.1”
DISTANCE BETWEEN CENTERS 91.5”
MAXIMUM TURNING DIAMETER 25.5”
STANDARD TURNING DIAMETER 14.7”
MAXIMUM TURNING LENGTH 77.6”
X-AXIS TRAVELS 13.6”
Z-AXIS TRAVELS 82.7”
MAXIMUM SPINDLE SPEED 1,500 RPM
NUMBER OF SPEED RANGES 2
SPINDLE NOSE JIS A2-15
THROUGH SPINDLE HOLE DIAMETER 7.3”
MAXIMUM SPINDLE INDEXING ANGLE 0.001°
NUMBER OF TOOL STATIONS: 12
SHANK HEIGHT FOR SQUARE TOOL: 1-1/4”
SHANK DIAMETER FOR BORING BAR: 2-1/2”
TURRET INDEXING TIME .04 SECONDS
MAX ROTARY TOOL SPINDLE SPEEDS 3,000 RPM
RAPID TRAVERSE RATE (X-AXIS) 787.4 IPM
RAPID TRAVERSE RATE (Y-AXIS) 944.9 IPM
RAPID TRAVERSE RATE (C-AXIS) 56 MIN-¹
JOG FEED RATE 0 – 197 IPM
TAILSTOCK TRAVEL 78.7”
SPINDLE DIAMETER 5.9”
TAILSTOCK TAPER MT5
TAILSTOCK SPINDLE TRAVEL 5.9”
SPINDLE DRIVE (30 MIN/CONT) 40/30 HP
FEED MOTOR 8/9.3 HP
ROTARY TOOL SPINDLE MOTOR
(30 MIN/CONT) 12/10 HP
COOLANT PUMP MOTOR: .69 HP
FLOOR SPACE 257.7” X 124.6” X 100.1”
WEIGHT (APPROXIMATELY) 33,000 LBS
ELECTRICS 220 VOLT, 3 PH, 60 CYC
COOLANT TANK CAPACITY 87.1 GALLONS
EQUIPPED WITH
FANUC F32iB (MAPPS IV) CONTROL
HIGH-OUTPUT SPINDLE
CHIP BLASTER JV-40 HIGH PRESSURE COOLANT SYSTEM
LNS TURBO RIGHT DISCHARGE, HINGE TYPE CHIP CONVEYOR
18 KITAGAWA BB218 LARGE THRU-HOLE (6.55) POWER CHUCK
VARIABLE SPEED THREAD CUTTING
THREAD RE-CUTTING
LNS AUTOBLOCK K4 1-ZSW AUTOMATIC STEADY REST
(4) ROTARY TOOL HOLDERS
(1) FACE CUTTING POSITIONING BLOCKS
(3) OD CUTTING POSITIONING TOOLS
HARDLY USED 2015 MORI SEIKI MODEL SL-403CMC/2000 SWINGS 37", HAS 91" BETWEEN CENTERS, 1500 RPM SPINDLE, 18" KITAGAWA BB218 BIG BORE (6.55") CHUCK ALONG WITH A FANUC 32iB CONTROL AND LNS STEADY REST.
Imperial
| Maximum Swing | 36.8" |
| Max Turning Diameter | 25.5" |
| Main Spindle Bore/Max Bar Capacity | 7.3/ 6.55 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 29.1" |
| Distance Between Centers | 91.5" |
| Maximum Cutting Length | 77.6" |
| Distance Between Spindles | 91.5" |
| X-Axis Travel (X1, X2, X3) | 13.6 |
| Z-Axis Travel (Z1, Z2, Z3) | 82.7 |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Size | 18" |
| Main Spindle Chuck Type | Air |
| Main Spindle Bore Diameter | 7.3" |
| Main Spindle Maximum Bar Work | 6.55" |
| Main Spindle Speed | 1,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40/ 30 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 3000 |
| Turret Rotary Tool Horse Power 1, 2 | 12 |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| High Pressure Coolant System (PSI) | 1000 |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 18" |
| Control | CNC (FANUC F32iB) |
| Dimensions | 57.7” X 124.6” X 100.1” |
| Weight | 33,000 LBS |
SPECIFICATIONS
SWING OVER BED 36.8”
SWING OVER CROSS SLIDE 29.1”
DISTANCE BETWEEN CENTERS 91.5”
MAXIMUM TURNING DIAMETER 25.5”
STANDARD TURNING DIAMETER 14.7”
MAXIMUM TURNING LENGTH 77.6”
X-AXIS TRAVELS 13.6”
Z-AXIS TRAVELS 82.7”
MAXIMUM SPINDLE SPEED 1,500 RPM
NUMBER OF SPEED RANGES 2
SPINDLE NOSE JIS A2-15
THROUGH SPINDLE HOLE DIAMETER 7.3”
MAXIMUM SPINDLE INDEXING ANGLE 0.001°
NUMBER OF TOOL STATIONS: 12
SHANK HEIGHT FOR SQUARE TOOL: 1-1/4”
SHANK DIAMETER FOR BORING BAR: 2-1/2”
TURRET INDEXING TIME .04 SECONDS
MAX ROTARY TOOL SPINDLE SPEEDS 3,000 RPM
RAPID TRAVERSE RATE (X-AXIS) 787.4 IPM
RAPID TRAVERSE RATE (Y-AXIS) 944.9 IPM
RAPID TRAVERSE RATE (C-AXIS) 56 MIN-¹
JOG FEED RATE 0 – 197 IPM
TAILSTOCK TRAVEL 78.7”
SPINDLE DIAMETER 5.9”
TAILSTOCK TAPER MT5
TAILSTOCK SPINDLE TRAVEL 5.9”
SPINDLE DRIVE (30 MIN/CONT) 40/30 HP
FEED MOTOR 8/9.3 HP
ROTARY TOOL SPINDLE MOTOR
(30 MIN/CONT) 12/10 HP
COOLANT PUMP MOTOR: .69 HP
FLOOR SPACE 257.7” X 124.6” X 100.1”
WEIGHT (APPROXIMATELY) 33,000 LBS
ELECTRICS 220 VOLT, 3 PH, 60 CYC
COOLANT TANK CAPACITY 87.1 GALLONS
EQUIPPED WITH
FANUC F32iB (MAPPS IV) CONTROL
HIGH-OUTPUT SPINDLE
CHIP BLASTER JV-40 HIGH PRESSURE COOLANT SYSTEM
LNS TURBO RIGHT DISCHARGE, HINGE TYPE CHIP CONVEYOR
18 KITAGAWA BB218 LARGE THRU-HOLE (6.55) POWER CHUCK
VARIABLE SPEED THREAD CUTTING
THREAD RE-CUTTING
LNS AUTOBLOCK K4 1-ZSW AUTOMATIC STEADY REST
(4) ROTARY TOOL HOLDERS
(1) FACE CUTTING POSITIONING BLOCKS
(3) OD CUTTING POSITIONING TOOLS
