DMG-MORI NLX-2500MC/ 700

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DMG-MORI
Model:
NLX-2500MC/ 700
Year:
2014
Stock #:
4865
Status:
For Sale
Serial #:
NL256141002

Description

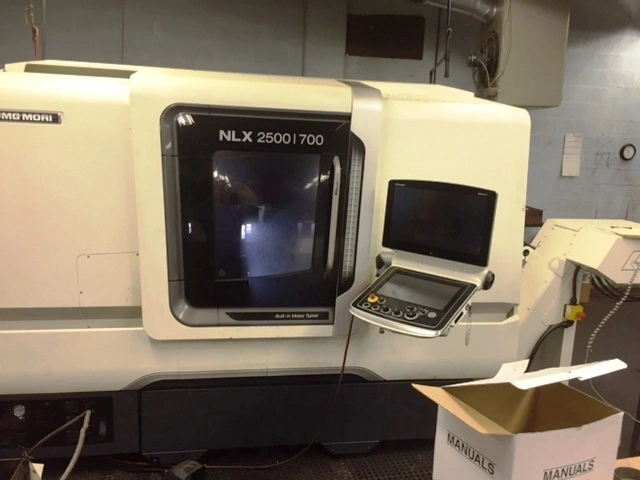

THIS SUPER CLEAN DMG-MORI NLX-2500MC/ 700 CNC LATHE, 3" BAR WORK, CELOS CONTROL, 10" KITAGAWA CHUCK AND FULL C-AXIS, 2014.

Maximum Swing31"787.4 mm
Max Turning Diameter14.4"365.76 mm
Main Spindle Bore/Max Bar Capacity3.6/ 3.03.6/ 3.0
Tail Stock/Sub SpindleTail StockTail Stock
Maximum Swing Over Cross Slide21.3"541.02 mm
Maximum Cutting Length27.7"703.58 mm
X-Axis Travel (X1, X2, X3)10.2"10.2"
Z-Axis Travel (Z1, Z2, Z3)31.3"31.3"
C-Axis Indexing (1, 2).001.001
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.6"91.44 mm
Main Spindle Maximum Bar Work3"76.2 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)24.7/ 2024.7/ 20
Turret Tool Positions 1, 21212
B-Axis Milling Spindle Horse Power7.57.5
B Axis Rotary Tool Spindle Speed6,000 RPM6000 rpm
Chip ConveyorYesYes
Chip ConveyorSideSide
Tool Eye Automatic Front SpindleYesYes
ControlCNC (CELOS)CNC (CELOS)
Dimensions156.3" X 82.9" X 86.6"156.3" X 82.9" X 86.6"
Weight12,804 LBS12,804 LBS

SPECIFICATIONS:
CHUCK SIZE                            10"
MAX DIAMETER BAR CAPACITY             3.1"
MAX SWING OVER BED / COVER / CARRIAGE 31" / 23" / 21.3"
MAX TURNING DIAMETER (MAX / STD)      14.4" / 10.6"
MAX MACHINING LENGTH                  27.7"
SPINDLE MOTOR                         24.7 / 20 HP
SPINDLE SPEED                         4000 RPM
SPINDLE BORE                          3.6"
SPINDLE NOSE                          A2-8
SPINDLE TORQUE                        441.8 FT. LBS.
TOOLS                                 12 (ALL LIVE)
MILLING MOTOR                         7.5 HP
MILLING SPEED                         6000 RPM
RAPID TRAVERSE RATES                  1181 IPM
X-AXIS TRAVEL                         10.2"
Z-AXIS TRAVEL                         31.3"
C-AXIS INDEX                          .001 DEGREE
TURRET INDEX (SINGLE STEP)            0.27 SECONDS
TAILSTOCK TAPER                       MT#5
MACHINE DIMENSIONS (L X W X H)        156.3" X 82.9" X 86.6"
MACHINE WEIGHT                        12,804 LBS.

CELOS CONTROL
10.4" COLOR TFT
(2) USB PORTS
MAPPS IV PROGRAMMING
C-AXIS MILLING CAPABILITY
10" KITAGAWA BB210 HYDRAULIC CHUCK
DIGITAL TAILSTOCK
BUILT-IN INTEGRAL MILLING SPINDLE MOTOR
SERVO DRIVEN TURRET
TOOL PRESETTER
TURBO CHIP CONVEYOR (SIDE EXIT)
SLANT BED BOX WAY CONSTRUCTION
