OKUMA CADET L1420/1250 CNC LATHE
Have one to sell?
ConditionUsed
1 available

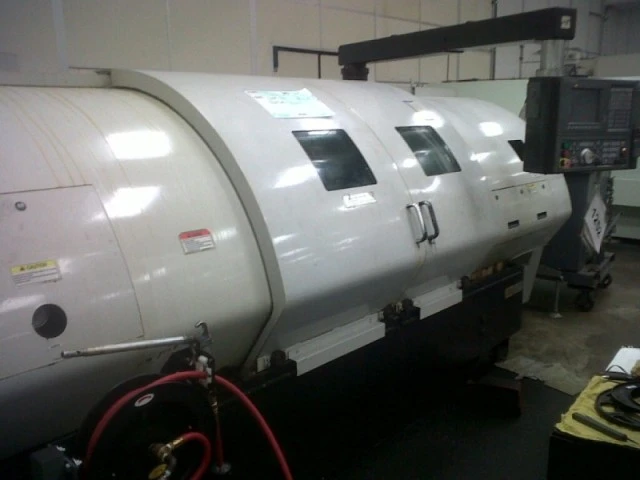

THIS OKUMA CADET-L1420/1250 CNC TURNING CENTER INCLUDES A 15" CHUCK, A MANUAL STEADY REST, 3500 RPM SPINDLE, TAILSTOCK AND AN OKUMA OSP CONTROL.
SPECIFICATIONS:
MAX SWING OVER BED 28"
MAX SWING OVER SADDLE 18.9"
MAX TAIL STOCK POSITION 48.78"
SPINDLE BORE 3.15
CHUCK SIZE 15"
CROSS TRAVEL (X-AXIS) 9.05"
LONGITUDINAL TRAVEL (Z-AXIS) 25.59"
RAPID TRAVERSE RATE (X-AXIS) 472 IPM
RAPID TRAVERSE RATE (Z-AXIS) 591 IPM
TOOL POSITIONS V 12
SPINDLE NOSE A2-8
SPINDLE SPEED RANGE 52-3500 RPM
SPINDLE DRIVE MOTOR 30/20 HP
HYDRAULIC TAILSTOCK STROKE 4.72"
HYDRAULIC TAILSTOCK TAPER #5 MT
APPROXIMATE MACHINE DIMENSIONS 135" X 72"
APPROXIMATE MACHINE WEIGHT 17,500 LBS
OSP U10L CNC CONTROL
CHIP CONVEYOR
ANIMATION
15" HYDRUALIC CHUCK
MANUAL STEADY REST
RS-232 PORT
FLOPPY DISK DRIVE
CYCLE TIME MONITOR
12 POSITION TURRET
HYDRAULIC TAILSTOCK
WITH PROGRAMMABLE QUILL
MULTI-TAP TRANSFORMER FOR 220 OR 480 VOLT
COOLANT SYSTEM
MACHINE CAME OUT OF AN AIRCRAFT FACILITY CUT ONLY ALUM AND STNLS
