MAZAK FH 4800 W/24 PALLET PALLETECH
MACHINING CENTERS, HORIZONTAL

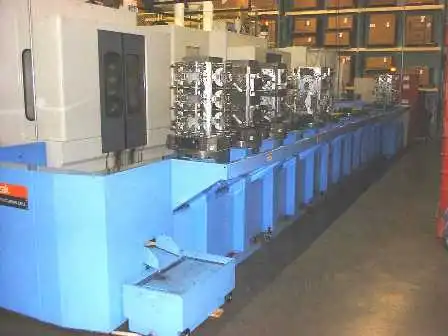

THIS FH 4800 CONSISTS OF 3 MACHINES WITH A TOTAL OF 24 PALLETS, FULL 4TH AXIS, FUSION 640M CONTROL, 213 PSI COOLANT THRU AND 120 STATION ATC.
| X-AXIS TRAVEL | 22.04" |
| PALLET SIZE | 15.75" x 15.75" |
| 4 AXIS PALLET TABLE INDEXING | N/C Contouring |
| TOOL CAPACITY (ATC) | 120 |
| SPINDLE TAPER | CAT 40 |
| NUMBER OF PALLETS | 24 |
| PALLET SIZE (W) | 15.75" |
| PALLET SIZE (L) | 15.75" |
| PALLET LOAD CAPACITY | 880 lb |
| Y-AXIS TRAVEL | 24.02" |
| Z-AXIS TRAVEL | 22.04" |
| SPINDLE SPEED | 12000 rpm |
| SPINDLE DRIVE MOTOR | 30 hp |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 213 psi |
| PALLETECH SYSTEM NUMBER OF PALLETS | 24 |
| CHIP CONVEYOR | Yes |
| Control | CNC (MAZATROL FUSION 640M) |
SPECIFICATIONS:
PALLET SIZE 15.75" X 15.75"
PALLET LOAD CAPACITY 880 LBS
DISTANCE FROM SPINDLE CENTER TO TOP OF PALLET 1.97” - 25.98”
DISTANCE FROM SPINDLE NOSE TO PALLET CENTER 5.91” - 27.95”
X AXIS TRAVEL 22.04"
Y AXIS TRAVEL 24.02"
Z AXIS TRAVEL 22.05"
SPEED 12,000 RPM
SPINDLE TAPER NO. 40
RAPID TRAVERSE RATE 1968 IPM
TOOL TAPER CAT #40
MAX. TOOL LENGTH / WEIGHT 14.17” / 26.4 LBS
TOOL CHANGE TIME (TOOL TO TOOL)/(CHIP TO CHIP) 1.3 S / 3.0 S
SPINDLE MOTOR 30 HP
3 MACHINES TOTAL - 24 PALLETS
MACHINE #1:
APRIL 1999
EQUIPPED WITH:
FUSION 640M CNC CONTROL
120 ATC
CHIP CONVEYOR CONCEP 2000
HIGH PRESSURE COOLANT 213 PSI
FULL 4-AXIS
WORK PIECE AIR BLAST
CONDITION LIGHTS
MMSB PROBE MP10
INSPECTION PLUS SOFTWARE EAI/ISO
CAMWARE EXPERT (TURNING)
OPTIMIZER 3D ROM
12,000 RPM SPINDLE
MACHINE #2
AUGUST 1999
EQUIPPED WITH:
FUSION 640M CNC CONTROL
120 ATC
CHIP CONVEYOR CONCEP 2000
HIGH PRESSURE COOLANT 213 PSI
FULL 4-AXIS
WORK PIECE AIR BLAST
CONDITION LIGHTS
MMSB PROBE MP10
INSPECTION PLUS SOFTWARE EAI/ISO
CAMWARE EXPERT (MILLING)
OPTIMIZER 3D ROM
12,000 RPM SPINDLE
MACHINE #3
MARCH 2002
EQUIPPED WITH:
FUSION 640M CNC CONTROL
40 ATC
CHIP CONVEYOR CONCEP 2000
HIGH PRESSURE COOLANT 213 PSI
FULL 4-AXIS
WORK PIECE AIR BLAST
CONDITION LIGHTS
MMSB PROBE MP10
INSPECTION PLUS SOFTWARE EAI/ISO
CAMWARE EXPERT (MILLING)
OPTIMIZER 3D ROM
12,000 RPM SPINDLE
