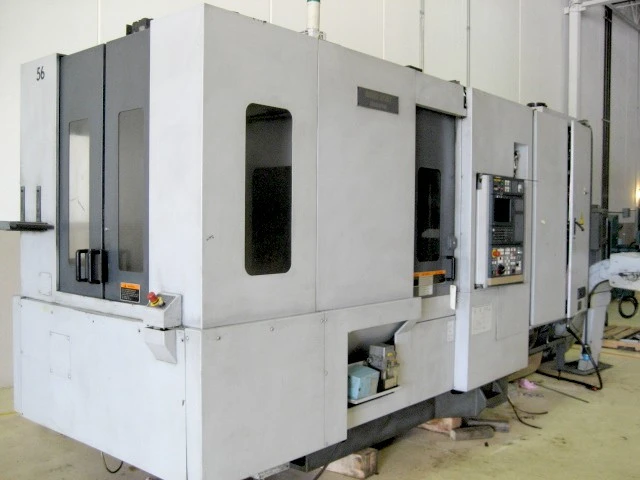

MORI SEIKI NH-5000/50 CNC HORIZONTAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
THE MORI SEIKI NH-5000/50 IS EQUIPPED WITH A MORI SEIKI MSC-502 CNC CONTROL,1000 PSI COOLANT THRU, 60 STATION ATC AND A CAT 50/ 8000 RPM SPINDLE.
SPECIFICATIONS:
PALLET SIZE 19.7" x 19.7"
MAXIMUM PALLET LOAD 1,100 LBS
NUMBER OF PALLETS 2
PALLET SURFACE TO SPINDLE CENTER 2.0" - 25.6"
TABLE CENTER TO SPINDLE GAUGE PLANE 3.1" - 19.7"
X AXIS TRAVEL 25.6"
Y AXIS TRAVEL 27.6"
Z AXIS TRAVEL 28.7"
B AXIS INDEXING 1 DEGREE
RAPID TRAVERSE RATE X, Y & Z AXIS 1968 IPM
SPINDLE TAPER CAT 50
SPINDLE SPEEDS 8,000 RPM
SPINDLE MOTOR 30/25 HP
TOOL CHANGER CAPACITY 60 STATION ATC
TOOL CHANGE TIM (TOOL TO TOOL) 2.5 SECONDS
MAXIMUM TOOL WEIGHT 66 LBS
MAXIMUM TOOL LENGTH 19.6"
MACHINE WEIGHT (APPROXIMATE) 29,500
MORI SIEKI MSC-502 (FANUC 18iM) CNC CONTROL
MAPPS CONVERSATIONAL PROGRAMMING
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
COOLANT THROUGH THE SPINDLE 1000 PSI-CHIPBLASTER
RENISHAW TOUCH PROBE
FLOOD COOLANT SYSTEM,
TURBO EXTERNAL LIFT-UP TYPE CHIP CONVEYOR
DAIKIN SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM)
FULLY ENCLOSED GUARDING
ALL AVAILABLE MANUALS
