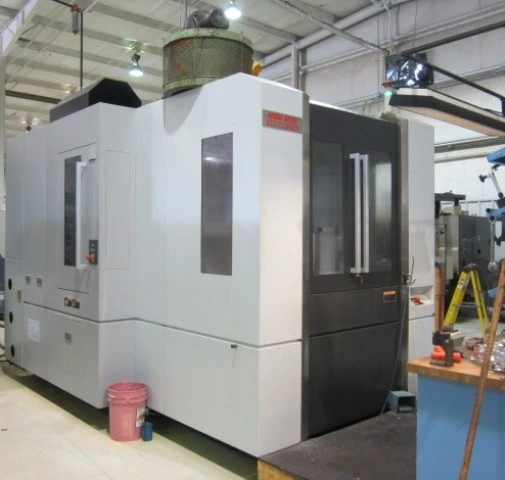

MORI SEIKI NH 5000/40DCG 4 AXIS
Have one to sell?
ConditionUsed
1 available
THE MORI SEIKI NH 5000/40DCG 4 AXIS HAS A FANUC MSX 701 CNC CONTROL WITH MAPPS, FULL CONTOURING 4TH AXIS ROTARY TABLE, 60 ATC AND A CAT 40/ 14000 RPM SPINDLE.
SPECIFICATIONS:
NUMBER OF PALLETS 2
PALLET SIZE 19.7" X 19.7"
X - AXIS TRAVELS 28.7"
Y - AXIS TRAVELS 28.7"
Z - AXIS TRAVELS 33.5"
B - AXIS TRAVELS .001 N/C ROTORY
TABLE SURFACE TO SPINDLE CENTER 2.0" - 30.7"
TABLE CENTER TO SPINDLE 3.9" - 37.4"
MAX. TABLE LOAD 2200 LBS.
RAPID TRAVERSE RATE X,Y,Z AXES 1968 IPM
SPINDLE SPEED RANGE 14,000 RPM
SPINDLE TAPER CAT# 40
SPINDLE MOTOR 30 HP AC
AUTO TOOL CHANGE 60 ATC
MAX TOOL LENGTH 15.7"
MAX TOOL DIA. (ADJ.) 3.1"/7.0"
MAX TOOL WEIGHT 17.6 LBS"
TOOL CHANGE TIME (TOOL TO TOOL) 1.0 SEC.
PALLET CHANGE TIME 3.2 SEC.
MACHINE WEIGHT 27,800 LBS.
FANUC MSX 701 III CNC CONTROL
MORI MAPPS CONVERSATIONAL PROGRAMMING
HELICAL INTERPOLATIOM
FULL CONTOURING 4TH AXIS .001 N/C ROTARY TABLE
HIGH SPEED SKIP
CUSTOM MACRO B
A1 CONTOUR CONTROL
RIGID TAPPING
EXTENDED PART PROGRAM EDITING
COOLANT THRU THE SPINDLE
WORK OFFSETS 48 PAIRS
TOOL OFFSETS 200 PAIRS
AUTO TOOL LENGTH MEASUREMENT
MAINTANENCE NAVIGATION WITH ANIMATION
CHIP CONVEYOR & FILTERING SYSTEM
ALL AVAIALBLE MANUALS
