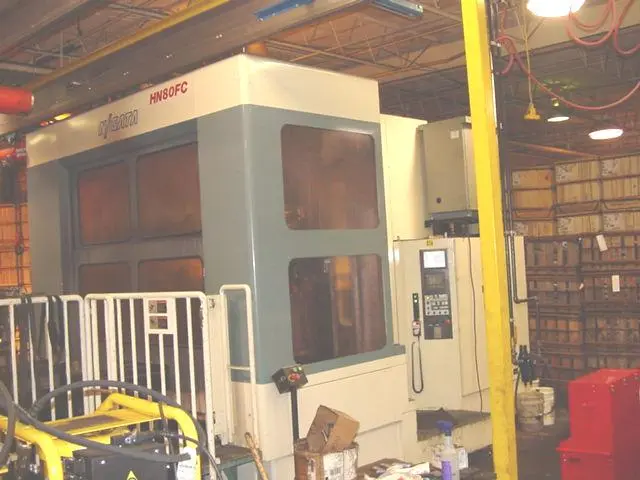

SPECIFICATIONS:
PALLET SIZE 31.5" X 31.5"
NUMBER OF PALLETS 2
TABLE LOAD CAPACITY 4460 LBS.
AXIS TRAVEL X - AXIS 50"
Y - AXIS 33.5"
Z - AXIS 43.3"
W - AXIS QUILL TRAVEL 11.8"
U - AXIS FACING HEAD TRAVEL 5.1"
RAPID TRAVERSE RATES X, Z AXES 551 IPM
Y - AXIS 394 IPM
W , U AXES 198 IPM
CUTTING FEEDRATES ALL AXES 0.04-158 IPM
PALLET TOP TO SPINDLE CENTER 5.9"-49.2"
PALLET CENTER TO SPINDLE NOSE 3.9"-37.4"
MAXIMUM SWING DIAMETER IN ALL STROKE AREA 50"
MAXIMUM HEIGHT OF WORK PIECE 47.2"
TABLE INDEXING 1 DEGREE
SPINDLE HORSEPOWER 35/30 HP AC
SPINDLE SPEEDS (3 GEAR RANGES) 1,800 RPM
FACING HEAD SPEED 20-600 RPM
SPINDLE TAPER CAT 50
SPINDLE QUILL DIAMETER 5.1"
FACING HEAD DIAMETER 27.6"
SPINDLE MAX. TORQUE 487 FT/LBS
FACING HEAD MAX. TORQUE 1,098 FT/LBS.
AUTO TOOL CHANGE CAPACITY 90 ATC 60 W-AXIS 30-U
MAX. TOOL WEIGHT 77 LBS.
MACHINE WEIGHT 59,600 LBS
