HAAS VF5SS/ 50 5 AXIS VERTICAL
Have one to sell?
ConditionUsed
1 available

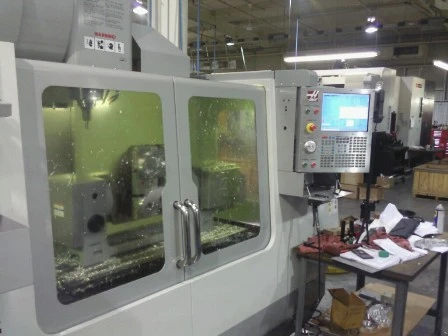

THIS HAAS VF-5/ 50 5 AXIS VERTICAL MACHINING CENTER HAS TRAVELS OF 50 X 26 X 25 AND A CAT 50/ 10000 RPM SPINDLE, 300 PSI COOLANT THRU, TOOLING AND A TILTING 2 AXIS TRUNION TABLE.
SPECIFICATIONS:
TRAVELS (XYZ) 50 X 26 X 25
TOOL CHANGER 30 TOOL SIDE-MOUNT
RAPIDS 710 IPM (18.0/MIN)
SPINDLE CAT 50
HAAS CNC CONTROL
REMOTE JOG HANDLE
PROGRAMMABLE COOLANT NOOZLE
VISUAL QUICK CODE
CHIP AUGER SYSTEM
USB PORT, 1MB
RIGID TAPPING
55 GALLON (208 LITER) FLOOD COOLANT SYSTEM.
4TH-AXIS DRIVE AND WIRING ONLY, FOR BRUSHLESS TYPE ROTARY TABLES.
5TH-AXIS DRIVE AND WIRING, FOR BRUSHLESS TYPE ROTARY TABLES.
AUXILLARY COOLANT FILTER SYSTEM FOR TSC-EQUIPPED VMCS 25-MICRON FILTER
HARD DISK DRIVE (40GB) AND ETHERNET INTERFACE
HIGH-SPEED MACHINING WITH LOOK-AHEAD
THROUGH SPINDLE COOLANT, 300 PSI, 10,000 MAX RPM WITH TSC ENABLED.
10,000-RPM 50 TAPER SPINDLE, 30-HP (22.4KW)
DUAL DRIVE (Y-DELTA), GEARED HEAD.
210MM (8.27) TILTING 2-AXIS TRUNNION ROTARY TABLE
TOOLING:
CAT40, 5 SOLID HOLDER 1/4-1, (2)ER16 COLLET CHUCKS, (2)ER 32 COLLET CHUCKS, 5 PIECES ER 16 COLLET SET AND 6 PIECES ER32 COLLET SET.
CAT50, 5 SOLID HOLDER 1/2-1 1/4, (2)ER32 COLLET CHUCKS, (2)ER40 COLLET CHUCKS, (1) 1 ¼ SHELL.
6 VISE WITH 7.5 OPENING.
6 VISE WITH 8.8 OPENING.
6 VISE WITH 10 OPENING.
