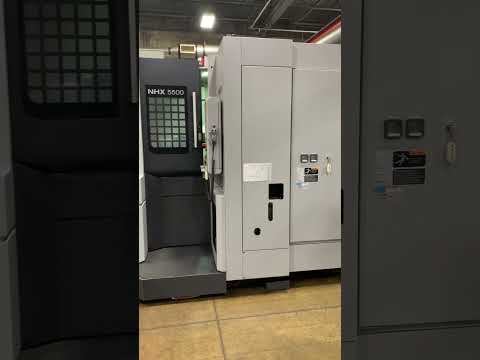

DMG MORI NHX 5500/ 4 AXIS HORIZONTAL
MACHINING CENTERS, HORIZONTAL.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
THIS 2016 NHX 5500 HAS A FULL 4TH AXIS, 4 CHANNEL 4000 PSI HYDRAULICS HI-FLOW OVERHEAD WORK HOLDING, BIG PLUS CAT 50/ 8000 RPM SPINDLE, AND CHIP BLASTER HIGH PRESSURE COOLANT.
| PALLET SIZE | 19.7" X 19.7" |
| 4 AXIS PALLET TABLE INDEXING | .001 |
| TOOL CAPACITY (ATC) | 60 |
| SPINDLE TAPER | CAT 50 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE (W) | 19.7" |
| PALLET SIZE (L) | 19.7" |
| PALLET LOAD CAPACITY | 1100 lb |
| X-AXIS TRAVEL | 28.7" |
| Y-AXIS TRAVEL | 28.7" |
| Z-AXIS TRAVEL | 28.7" |
| SPINDLE SPEED | 8000 rpm |
| SPINDLE DRIVE MOTOR | 50 hp |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| CHIP CONVEYOR | Yes |
| Control | CNC (MORI SEIKI M730BM) |
| Weight | 24,420 LBS |
SPECIFICATIONS:
PALLET SIZE 19.7" X 19.7"
NUMBER OF PALLETS 2
PALLET WEIGHT CAPACITY 1100 LBS.
PALLET SURFACE TO SPINDLE CENTER 3.1" ~ 31.9"
PALLET CENTER TO SPINDLE GAGE LINE 2.8" ~ 37.4"
WORKPIECE DIMENSIONS 31.4" X 39"
X - AXIS TRAVEL 28.7"
Y - AXIS TRAVEL 28.7"
Z - AXIS TRAVEL 28.7"
B - AXIS TRAVEL .001 DEGREE
RAPID TRAVERSE RATES X, Y, Z 2362, 2362, 2362 IPM
CUTTING FEED RATE 2362 IPM
SPINDLE SPEED 8,000 RPM
SPINDLE TAPER 50 CT
MAIN MOTOR 50 HP

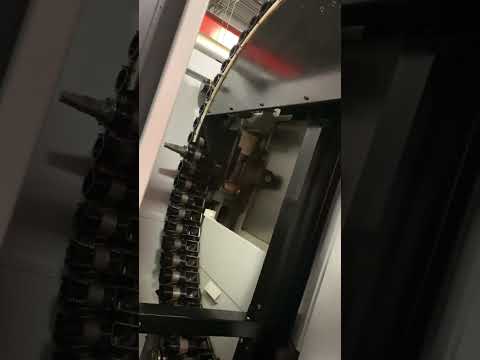

AUTOMATIC TOOL CHANGER 60 ATC
TOOL DIAMETER 2.7", 6.6"
TOOL LENGTH 21.6"
TOOL WEIGHT 26.4 LBS.
TOOL CHANGE TIME 3.3 SECONDS
MACHINE WEIGHT 24,420 LBS.
MORI SEIKI M730BM CNC CONTROL
MAPPS CONVERSATIONAL PROGRAMMING

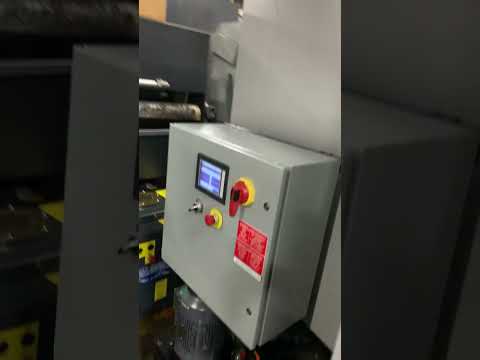

4 CHANNEL 4000 PSI HYDRAULICS HI-FLOW OVERHEAD WORK HOLDING
8000 RPM HI TORQUE OPTION
CABIN CURTAIN FLUSH
CHIP BLASTER HIGH PRESSURE COOLANT
CHIP CONVEYOR

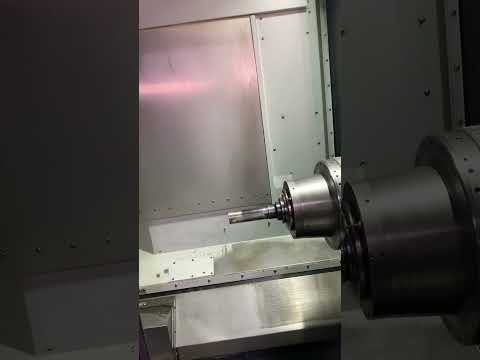

CT 50 BIG PLUS SPINDLE
CUSTOM MACROS
ECOPAC HYDRAULICS TO THE PALLET SYSTEM
ETHERNET FUNCTION & DATA SERVER FUNCTION
FULL 4TH AXIS
HELICAL INTERPOLATION
HPCC V2 HIGH PRECISION CONTOUR CONTROL
PROTOTYPE SHOP FOR ALUMINUM VALVES
RIGID TAPPING
SPINDLE CHILLER
4729 CUTTING HOURS
