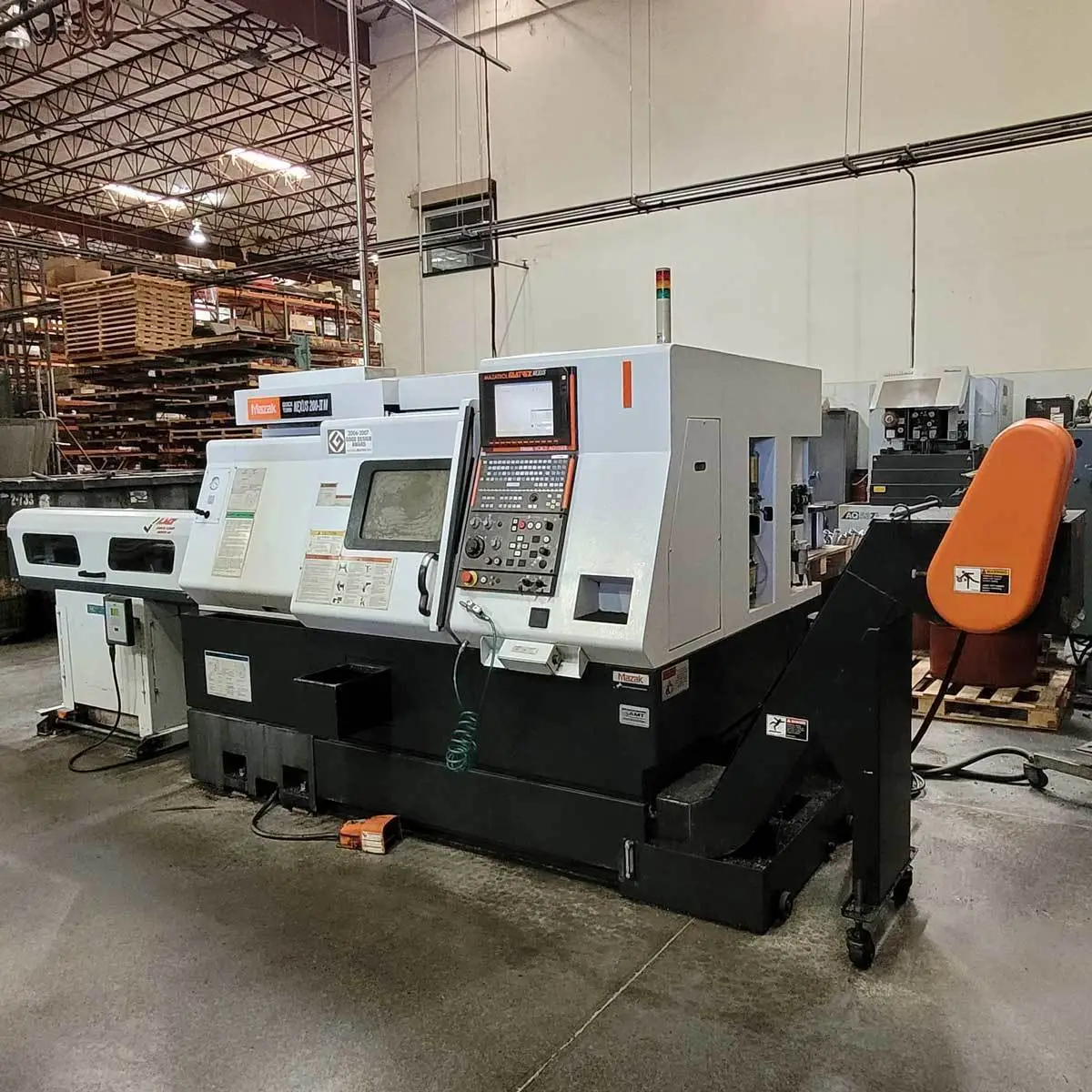

MAZAK QTN 200M CNC LATHE WITH MILLING
CNC LATHES MULTI AXIS
THIS 2008 QTN 200M HAS A MATRIX CONTROL, 213 PSI CTS, PARTS CATCHER, LNS BARFEEDER, SYNCH TAP, 8 MB PROGRAM, 7 SPINDLE LINERS, 4 STANDARD TURNING TOOLS, 1 BORING BAR HOLDER, 1 VERTICAL & 1 HORIZONTAL MILLING HOLDERS.
| Maximum Swing | 26.5" |
| Max Turning Diameter | 14.75" |
| Main Spindle Bore/Max Bar Capacity | 3.0"/ 2.0" |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Cutting Length | 21.28" |
| X-Axis Travel (X1, X2, X3) | 9.05" |
| Z-Axis Travel (Z1, Z2, Z3) | 22.75" |
| C-Axis Indexing (1, 2) | 0.001 DEGREE |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Available Live Tool Holders | 2 |
| Control | CNC (MAZATROL MATRIX NEXUS) |
MATRIX NEXUS
213 HIGH PRESSURE COOLANT
AUTOMATIC PARTS CATCHER
AUTOMATIC FRONT DOOR
AUTO POWER OFF
3 LIGHT SIGNAL TOWER
CHUCK AIR BLAST
TURRET AIR BLAST
CHIP CONVEYOR
AUTO PECK CYCLE WITH LOAD DETECTION
MILL SPINDLE SYNCHRONOUS TAPING
POLYGON MACHINING
8MB PROGRAM SIZE
LNS SERVO S65 BAR FEEDER
7 SPINDLE LINERS
4 STANDARD TURNING TOOLS
1 BORING BAR HOLDER
1 VERTICAL MILLING HOLDER
1 HORIZONTAL MILLING HOLDER
