DMG SEIKI 2011 NZ 1500 T2Y
CNC LATHES MULTI AXIS.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

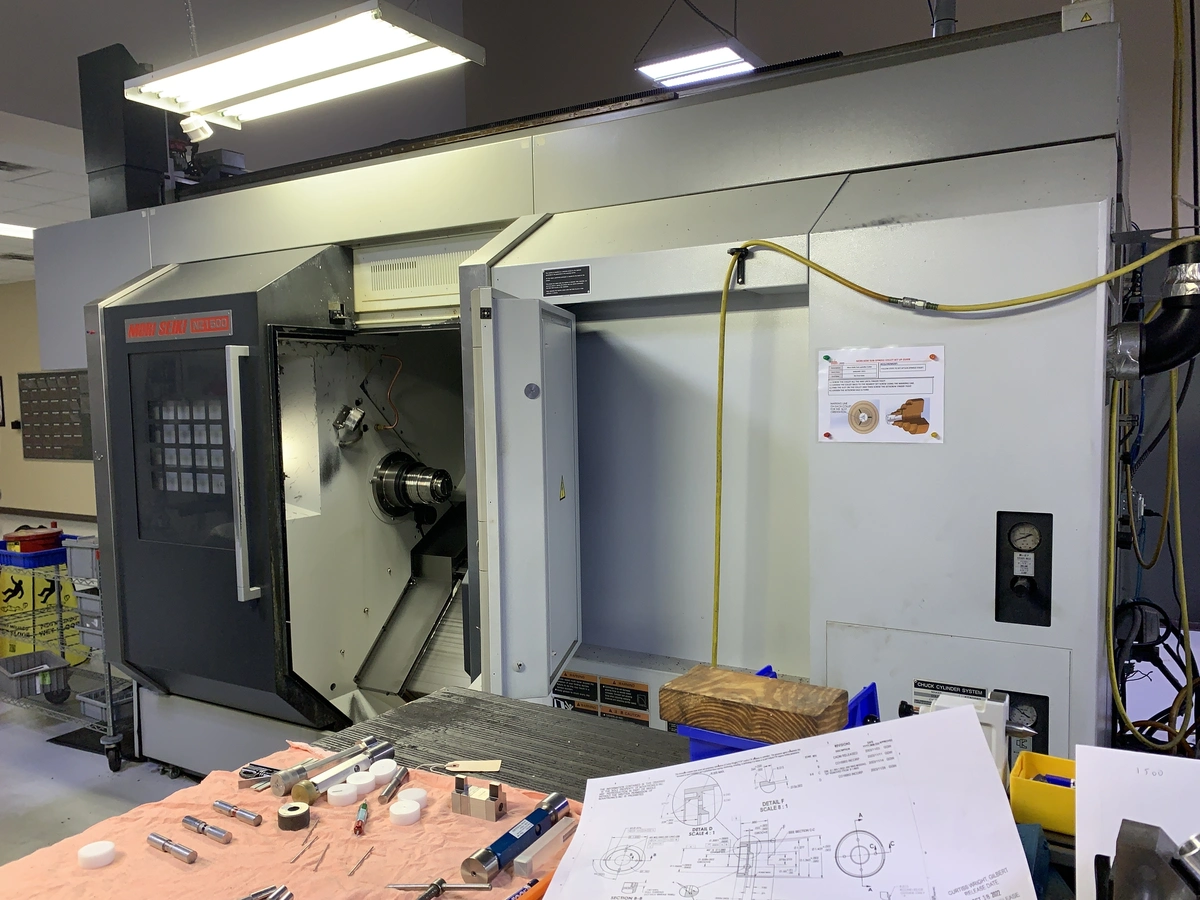

THIS 2011 DMG MORI NZ 1500 T2Y HAS 2 - 16 STATION TURRETS, TWIN SPINDLES WITH 8" CHUCKS, Y-AXIS, AND GANTRY SYSTEM..THE MACHINE IS IN EXTREMELY NICE CONDITION. SEE PICS
| Maximum Swing | 31.5" |
| Max Turning Diameter | 12.5" |
| Tail Stock/Sub Spindle | Sub |
| Distance Between Centers | 44.4" |
| Maximum Cutting Length | 31.9" |
| X-Axis Travel (X1, X2, X3) | 8.3 |
| Z-Axis Travel (Z1, Z2, Z3) | 31.9 |
| Y-Axis Travel (Y1, Y2, Y3) | 4.3 |
| C-Axis Indexing (1, 2) | Yes |
| W-Axis Travel Sub Spindle | 35.4 in |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Collet |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 6,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 29.5 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Chuck Type | Collet |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 29.5 |
| Main & Sub Spindle Synchronization | Yes |
| Number of Turrets | 2 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Bar Feed | No |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Tool Eye Measurement Upper Turret | Yes |
| Tool Eye Measurement Lower Turret | Yes |
| Available Live Tool Holders | 0 |
| Gantry System | Yes |
| Hobbing Function | Yes |
| Sub spindle indexing increment | 0.001 |
| Upper Turret Positions | 12 |
| Lower Turret Positions | 12 |
| Y-Axis | Upper Turret |
| Driven Tool Positions | Upper Turret Only |
| Rapid Traverse, X-Axis | 1181.1 |
| Rapid Traverse, Y-Axis | 787.4 |
| Rapid Traverse, Z-Axis | 1968.5 |
| Additional Chucks | Two 8" 3 Jaw |
| Additional Tooling | Large Amount of Tooling |
| Control | CNC (MSX 701 IV) |
Mori Seiki MSX-701-III CNC Control
Main Spindle With C-Axis
(2) 16-Station Upper & Lower Turrets
Y-Axis Upper Turret
Live Milling Upper Turret
Sub-Spindle With C-Axis
Tool Presetter
Parts Conveyor
LNS Turbo Chip Conveyor
