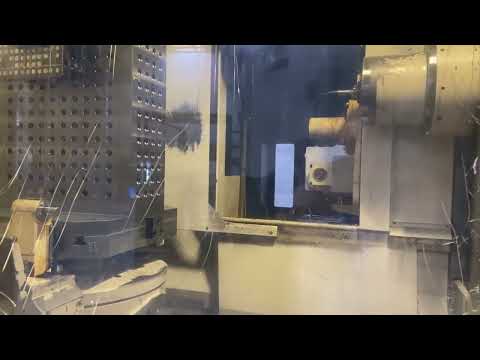

MAZAK HCN 6800-II 4 AXIS
Have one to sell?
ConditionUsed
1 available
WELL-MAINTAINED 2014 HCN 6800 HAS (2) 24.8" PALLETS, MATRIX 2 CONTROL, 80 ATC, 1 DEGREE 4TH AXIS, OMP60 RENISHAW OPTICAL PROBE, 1000 PSI COOLANT THRU, AND CAT 50/ HIGH-TORQUE 8000 RPM SPINDLE.
MAZATROL MATRIX NEXUS II CNC CONTROL
80 TOOL CHAIN MAGAZINE (CAT50) (FACTORY INSTALL ONLY)
PREP. FOR VISUAL TOOL ID/DATA MANAGEMENT (EUCHNER)
MANUAL PULSE GENERATOR 1 (DETACHABLE)
CHIP COVENYOR REAR DISP (HINGE/FOR STEEL)
THRU MILL-SPINDLE COOLANT 8KG/113PSI W/ PREP. FOR 1000 PSI
NIAGARA COOLANT
SIGNAL TOWER (3 COLORS LIGHTS, SQUARE)
LARGE CHIP BUCKET (SWING TYPE)
SPINDLE SHAPING FUNCTION G41/1/G42.1
HI-TORQUE 8000 RPM SPINDLE WITH HIGH ACCURACY SCALE
MOD KIT FOR HINGE CONVEYOR PREP TO CONSEP1 CONVEYOR PREP
MIST COLLECTOR (LOSMA G1000)
MT CONNECT ADAPTER SOFTWARE DPT#3
WORKPIECE AIR BLAST
AIR THRU SPINDLE WHILE RUNNING WITH LUBRICATION
RENISHAW OMP60M OPTICAL PROBE SYSTEM WITHOUT PREPARATION
AUTO PECKING CYCLE WITH LOAD DETECTION
MAZACC-3D HIGH-SPEED SOFTWARE PACKAGE (G61.1 & G05P2)
ETHERNET OPERATION FUNCTION
D) HIGH SMOOTHING CONTROL (REQUIRES MAZACC-3D)
PRESSURE SWITCH FOR SPINDLE THRU-COOLANT
QUICK COOLANT STOP SYSTEM DEPT. 13
MAXIMUM TOOL UPGRADE DIAMETER TO 12” IN FIELD
MAZAK SUPER FLOW V8A VARIABLE HIGH PRESSURE COOLANT UNIT
MACHINE VOLTAGE IS 480V
NOTE: MACHINE TRANSFORMER SIZE IS 75KVA
CSA CERTIFICATION 480V
CHIP CONVEYOR MUST HAVE INDEPENDENT E-STOP MOUNTED
150KVA 3PHASE 600-277/480 ISO
4 TAPS, CU TRANSFORMER
480VOLT SUPPLY MAIN BREAKER
WELL-MAINTAINED 2014 HCN 6800 HAS (2) 24.8" PALLETS, MATRIX 2 CONTROL, 80 ATC, 1 DEGREE 4TH AXIS, OMP60 RENISHAW OPTICAL PROBE, 1000 PSI COOLANT THRU, AND CAT 50/ HIGH-TORQUE 8000 RPM SPINDLE.
Imperial
| X-AXIS TRAVEL | 41.34" |
| Y-AXIS TRAVEL | 35.43" |
| Z-AXIS TRAVEL | 38.58" |
| SPINDLE TAPER | CAT 50 |
| SPINDLE DRIVE MOTOR | 50 hp |
| SPINDLE SPEED | 8000 rpm |
| TOOL CAPACITY (ATC) | 80 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 24.8" x 24.8" |
| PALLET SIZE (W) | 24.8" |
| PALLET SIZE (L) | 24.8" |
| PALLET LOAD CAPACITY | 3307 lb |
| 4 AXIS PALLET TABLE INDEXING | 1 Degree Index |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 1000 psi |
| CHIP CONVEYOR | Yes |
| Control | CNC (Mazatrol Matrix 2) |
| Dimensions | 130" X 248" X 134" |
| Weight | 41,800 |
MAZATROL MATRIX NEXUS II CNC CONTROL
80 TOOL CHAIN MAGAZINE (CAT50) (FACTORY INSTALL ONLY)
PREP. FOR VISUAL TOOL ID/DATA MANAGEMENT (EUCHNER)
MANUAL PULSE GENERATOR 1 (DETACHABLE)
CHIP COVENYOR REAR DISP (HINGE/FOR STEEL)
THRU MILL-SPINDLE COOLANT 8KG/113PSI W/ PREP. FOR 1000 PSI
NIAGARA COOLANT
SIGNAL TOWER (3 COLORS LIGHTS, SQUARE)
LARGE CHIP BUCKET (SWING TYPE)
SPINDLE SHAPING FUNCTION G41/1/G42.1
HI-TORQUE 8000 RPM SPINDLE WITH HIGH ACCURACY SCALE
MOD KIT FOR HINGE CONVEYOR PREP TO CONSEP1 CONVEYOR PREP
MIST COLLECTOR (LOSMA G1000)
MT CONNECT ADAPTER SOFTWARE DPT#3
WORKPIECE AIR BLAST
AIR THRU SPINDLE WHILE RUNNING WITH LUBRICATION
RENISHAW OMP60M OPTICAL PROBE SYSTEM WITHOUT PREPARATION
AUTO PECKING CYCLE WITH LOAD DETECTION
MAZACC-3D HIGH-SPEED SOFTWARE PACKAGE (G61.1 & G05P2)
ETHERNET OPERATION FUNCTION
D) HIGH SMOOTHING CONTROL (REQUIRES MAZACC-3D)
PRESSURE SWITCH FOR SPINDLE THRU-COOLANT
QUICK COOLANT STOP SYSTEM DEPT. 13
MAXIMUM TOOL UPGRADE DIAMETER TO 12” IN FIELD
MAZAK SUPER FLOW V8A VARIABLE HIGH PRESSURE COOLANT UNIT
MACHINE VOLTAGE IS 480V
NOTE: MACHINE TRANSFORMER SIZE IS 75KVA
CSA CERTIFICATION 480V
CHIP CONVEYOR MUST HAVE INDEPENDENT E-STOP MOUNTED
150KVA 3PHASE 600-277/480 ISO
4 TAPS, CU TRANSFORMER
480VOLT SUPPLY MAIN BREAKER
