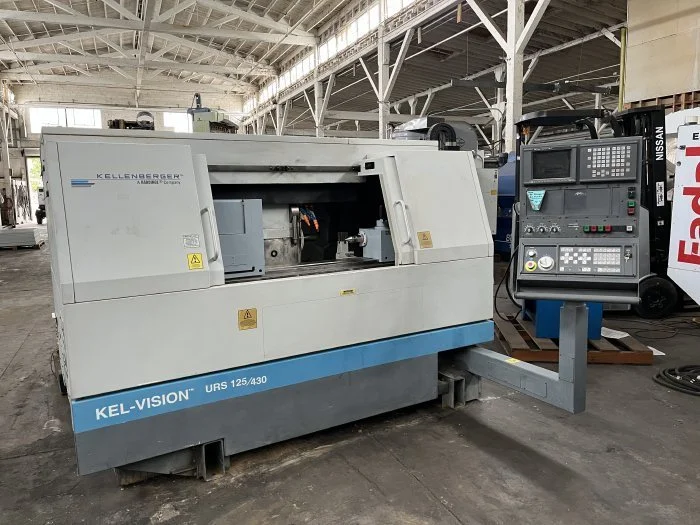

THIS KEL-VISION URS 125/430 CNC OD/ ID GRINDER CAME OUT OF A GOVERNMENT R&D FACILITY, HAS A FANUC 18T CONTROL, 16" GRINDING WHEEL, TAILSTOCK AND THERE'S NOT A CRACH ON THE WAY COVERS.
SWING: 9.8"
CENTERS: 16.9"
GRINDING WHEEL: 16"
SWING: 9.8"
CENTER HEIGHT: 4.92"
DISTANCE BET CENTERS: 29.92"
SWING LENGTH: 16.92"
WORKPIECE WEIGHT ON CENTERS MAX: 100KG/ 220LBS
GRINDING WHEEL STANDARD DIAMETER:16" X WIDTH: 2.5" X BORE: 5"
INDEXING MANUALLY: 2.5 DEGREE
LONGITUDIANAL SLIDE:Z MAX.TRAVEL:25.59"
TRANSVERSAL SLIDE: X MAX. TRAVEL:12.59"
WORK PIECE SPINDLE HEAD: FROM 8 RPM UP TO 800 RPM
TAPER IN SPINDLE: 5 MT
TAILSTOCK TAPER IN TAILSTOCK: 4 MT
TAILSTOCK TRAVEL OF BARREL: 2"
TABLE SPEED: RAPID MOTION: 12/6 M/MIN
GRINDING SPINDLE MOTOR: 7.5 / 10KW
***HAS CNC CONTROL B AXIS OF THE GRINDING WHEEL HEAD
***CONDITION: SHOW LITTLE USE NOT A SCRATCH ON THE WAY COVERS
