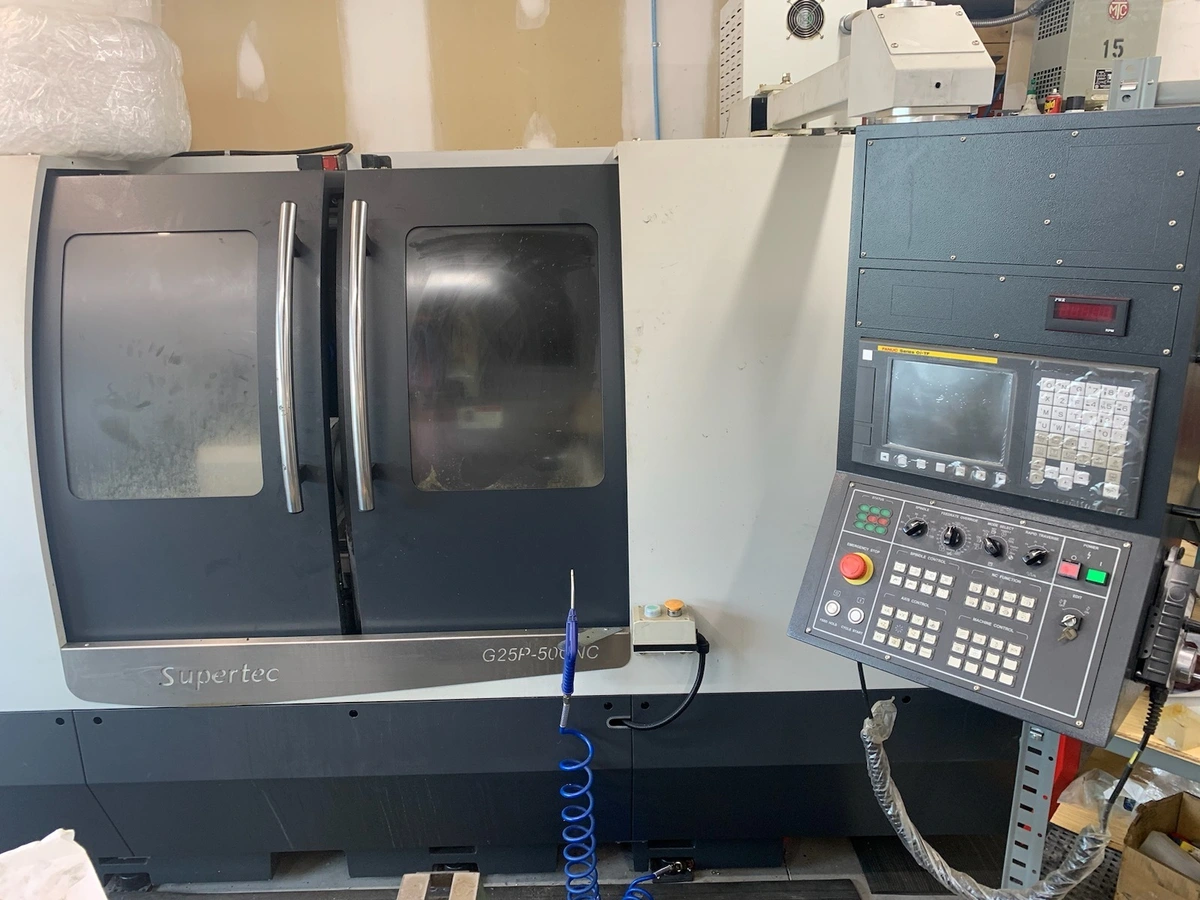

2021 SUPERTEC G25P-50CNC CYLINDRICAL GRINDER

SWING OVER TABLE: 10"
DISTANCE BETWEEN CENTERS: 20"
MAX GRINDING DIAMETER: 9"
MAX LOAD BETWEEN CENTERS: 176LBS
DIAMETER X WIDTH X BORE: 16" X 2" X 5"
WHEEL SPEED: 1650 RPM
MAX PERIPHERAL SPEED: 118 FT/SEC
SLIDING ANGLE: 90 DEGREES
AUTOMATIC RAPID TRAVERSE: 236 IPM
INFEED TRAVEL: 6.3"
LEAST INPUT INCREMENT: 0.000040"
TAILSTOCK QUILL TRAVEL: 1" TAILSTOCK TAPER: MT#3
SPINDLE SPEED: 500 RPM
SWIVELING ANGLE (C.C.W.): 7 DEGREES
RAPID FEEDERATE: 0-315 IPM
LEAD INPUT INCREMENT: 0.000040"
WHEEL SPINDLE MOTOR: 5 HP
WORKHEAD MOTOR: 1/2 HP
HYDRAULIC PUMP: 1 HP
LUBRICATION PUMP: 1/4 HP
COOLANT PUMP: 1/8 HP
WHEELHEAD MOTOR: 1.2 KW
TABLE MOTOR: 1.2 KW
