MAZAK QTN 450-II MY
CNC LATHES MULTI AXIS
.jpg)
THIS QTN 450MY HAS A MATRIX NEXUS CONTROL, 80" CENTERS, 213 PSI CTS, 18" BIG BORE CHUCK WITH 6.5" BAR CAP, RENISHAW LP2 PROBE KIT AND CHIP CONVEYOR.
| Maximum Swing | 29.5" |
| Max Turning Diameter | 22.8" |
| Main Spindle Bore/Max Bar Capacity | 7.23/ 6.5 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 22.8" |
| Maximum Cutting Length | 82.6" |
| X-Axis Travel (X1, X2, X3) | 13.375 |
| Z-Axis Travel (Z1, Z2, Z3) | 82.25 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 5.9" |
| C-Axis Indexing (1, 2) | 0.0001 |
| Main Spindle Chuck Size | 18" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 7.23" |
| Main Spindle Maximum Bar Work | 6.5" |
| Main Spindle Speed | 2,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 50 |
| Rear Chuck Prep | Yes |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Measurement Lower Turret | Yes |
| Coolant Thru Milling Head | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Work Measuring System (Probe) | YES |
| Y-Axis | Upper Turret |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Z-Axis | 1299 |
| Additional Tooling | Some |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 301” x 108” f-b x 106” High including the Chip conveyor |
| Weight | 42,417 LBS |
MAZATROL MATRIX CONTROL
12.1" COLOR LCD
USER MACROS - 600 PAIR
EIA/ ISO INPUT FUNCTION - MXN-001MT
SEQUENCE NUMBER COMPARISON STO FUNCTION
ABSOLUTE POSITIONING
AUTOMATIC TOOL EYE
213 PSI HIGH-POWER COOLANT - 10GPM
OPERATOR DOOR INTERLOCK
Y-AXIS CONTROL
12 POSITION VDI TURRET ROTARY TOOL SPEED - 4000 RPM/ 9.4KGM
MILLING SPINDLE SYNCHRONOUS TAPPING
C-AXIS 0.0001 DEGREE
MANUAL REARCHUCK PREP/ A2-15 NOSE

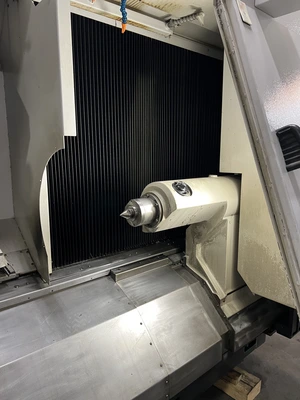

PROGRAMMABLE TAILSTOCK BUILT-IN LIVE CENTER
RELOCATION DEVICE
18" BIG BORE THRU-HOLE CHUCK PKG - 2000 RPM (6.5" BAR CAP)
OVERLOAD DETECTION SYSTEM
HANDHELD COOLANT NOZZLE
MAX PROGRAM SIZE: 8MB (STANDARD - 2MB)
RE-THREADING
RENISHAW LP2 PROBE KIT FOR SHAFT WORK
CHIP CONVEYOR - SIDE EXIT 2000U/ 80"------???????
CONFIRMING TOOLING
