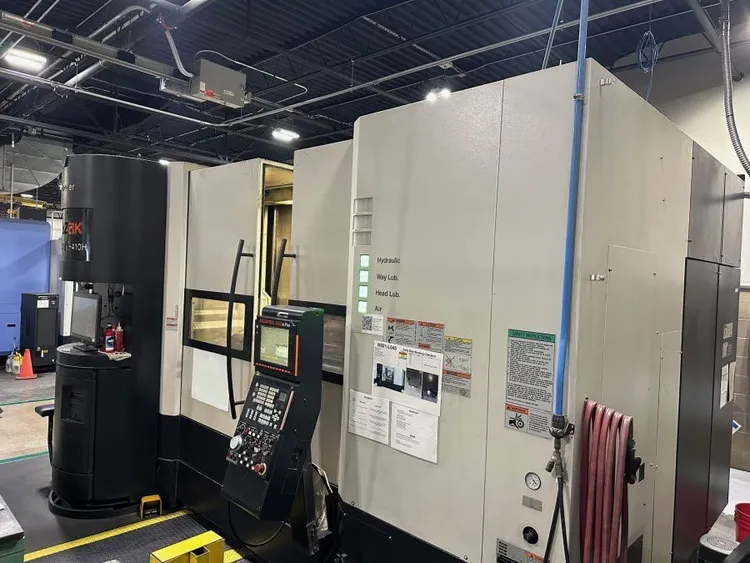

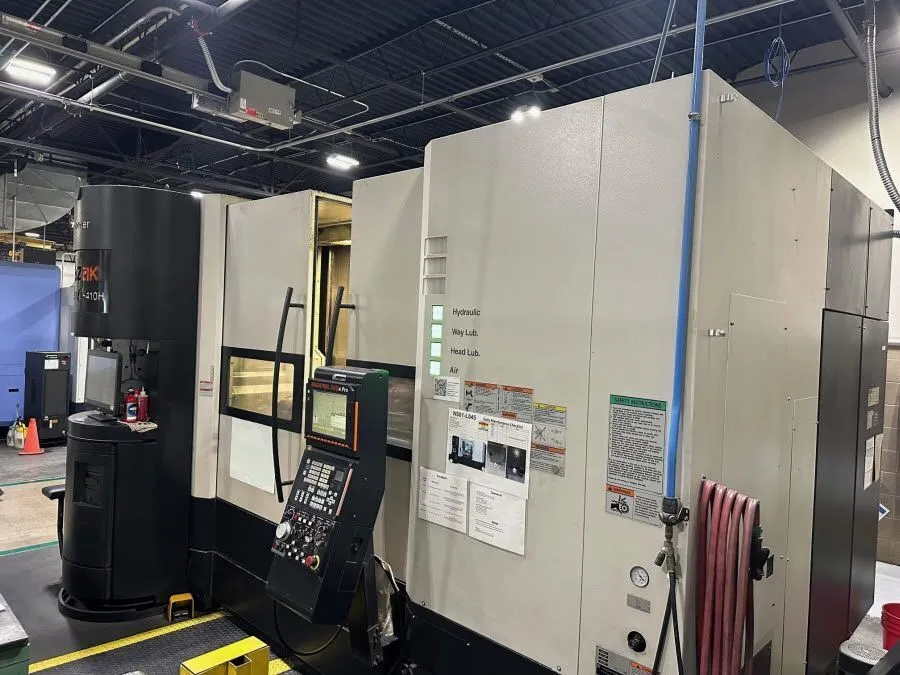

2006 Mazak Integrex e-410HS x 1500U
Multi-Axis CNC Lathe
Specifications (subject to buyer verification):
Maximum Swing........................... 24.01"
Maximum Swing over Carriage............. 24.01"
Maximum Cutting Diameter: Chucking...... 24.01"
Maximum Cutting Length 60".............. 53.30"

MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose............................ A2-8
Spindle Bore............................ 3.46"
Maximum Bar Diameter ................... 3.03"
Spindle Speed/Ranges.................... 4000 RPM / 1
Spindle Index (Programmable)............ 0.0001 Degree
Spindle Horsepower (Cont./30 Mins.)..... 30/35 H.P. (A.C.)
Spindle Torque.......................... 470 ft/lbs

SECOND SPINDLE SPECIFICATIONS (R):
Spindle Nose............................ A2-8
Spindle Bore............................ 3.46"
Maximum Bar Diameter.................... 3.03"x 2.46" Deep
Spindle Speed/Ranges.................... 4000 RPM/1
Spindle Index (Programmable)............ 0.0001 Degree
Spindle Horsepower (Cont./30 Mins.)..... 30/35 H.P. (A.C.)
Spindle Torque.......................... 470 ft-lbs

TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... 1 Position, w/ATC
Tool Shank Height....................... 1.0"
Tool Size (Boring Bar Max. Dia.)........ 1.5"
Magazine Capacity....................... 80 Tools
Tool Selection Method................... Random – Shortest Path
Tool to Tool ATC Time................... 1.3 Sec.
Max. Tool Dia. w/All Pockets Full....... 3.74"
Max. Tool Dia. w/Adjacent Pockets Empty. 5.9"
Max. Tool Length (From Gage-Line)....... 15.74"
Maximum Tool Weight..................... 26.5 lbs.
ATC Tool Shank.......................... CAT40

ROTARY SPINDLE:
Motor Type.............................. IM
Spindle Speed/Ranges.................... 12,000 RPM / 1
Spindle Horsepower (15 Min.)............ 29.3 H.P. (A.C.)
Torque (15% ED)......................... 200.5 ft-lbs

AXIS TRAVELS:
Rotary Tool Coupling Clamp.............. 15 Deg./24 Pos.
B-Axis.................................. 240 Deg.
(0.0001 Deg. increments, -30 Deg. to +210 Deg.)
B-Axis Coupling Clamp................... 5 Deg. Index
Y-Axis.................................. +/- 8.07"
X-Axis.................................. 28.97"
Z-Axis 60".............................. 54.64"
Second Headstock W-Axis 60"............. 54.13"

AXIS RAPID RATES:
X, Y and Z-Axis......................... 1969 IPM
Z-Axis 120"............................. 1575 IPM
Second Headstock W-Axis 60"............. 1181 IPM
B-Axis.................................. 50 RPM
C-Axis.................................. 555 RPM

GENERAL SPECIFICATIONS:
Floor Space (WxL) 60"................... 175.51" x 199.61"
Machine Height.......................... 116.14"
Total Power Required (60" Machine Only). 78 KVA
Air Requirements........................ 70 PSI / 18.73 CFM
Machine Weight 60"...................... 41,800 lbs.

Equipped With (subject to buyer verification):
Mazatrol Fusion 640M Pro Control
E-Tower
N2 E-MACHINE PERFORMANCE CNC OPTIONAL PACKAGE (THIS SOFTWARE PACKAGE INCLUDES THE FOLLOWING SOFTWARE:)
ADDITIONAL VARIABLES (TOTAL 600 PAIRS)
MAZAK TAPPING / BORING TORNADO (EIA/ISO)
MILL-SPINDLE SYNCHRONOUS TAPPING WITHOUT TOOL
EIA/ISO CODE INPUT FUNCTION
EIA/ISO FUNCTION SIMULTANEOUS 5 AXES
TOOL TIP POINT CONTROL / SIMULTANEOUS 5 AXES
INCLINED (TILTED) PLANE COMMAND / 5 AXIS
ADDITIONAL EIA/ISO FUNCTIONS (REQ. EIA/ISO)
* SPIRAL INTERPOLATION (EIA)
* PATTERN ROTATION (EIA)
* 3 DIMENSIONAL CUTTER COMPENSATION (EIA)
* GEOMETRIC COMMAND (EIA)
* SCALING (EIA)
* EXTERNAL DATA INPUT / OUTPUT (EIA)
INVERSE TIME FEED
G37. AUTOMATIC TOOL-LENGTH MEASURMENT.
SEQUENCE NUMBER COMPARISON STOP FUNCTION.
G00 SLOPE CONSTANT
MAZACC-2D FOR ROTARY AXIS
MAZACC-2D SOFTWARE (SHAPE COMPENSATION)
ADDITIONAL WORKPIECE COORDINATE SYSTEM (G54.1)
THREAD CUTTING FUNCTION.
CYLINDRICAL (GO7) & POLAR COORDINATE (G12)
INTERPOLATION FUNCTIONS

PCMCIA I/F (2-SLOT,CARD BUS)
Network Interface (For LAN & Modem)
Coolant Through Milling Head
213 PSI Thru Coolant/Flood Coolant Simul-Flowable
1st Spindle 35 HP / 4000 RPM
1st Spindle C-Axis Contouring 0.0001 Degree Increment
2nd Lathe Spindle 35HP / 4000 RPM
2nd Spindle C-Axis Contouring 0.0001 Degree Increment
1st Spindle Bore 3.46”
80 Tool Magazine
Milling Spindle Speed 12,000 RPM
B-Axis 0.0001 Deg / Contouring (Req. EIA/ISO)
B-Axis Index 5 Degree (Coupling Clamp)
Chip Conveyor Side Disposal (Hinge Type) 1500U (60”)
Automatic Tool Eye
Hyd. Chuck Open/Close Confirm (1 & 2 Lathe Spindle)
Prep Only for MMS-B Optical Probe
Mill-spindle Synchro. Tapping (W/o Tool)
Windows 2000 Operating Sywstem for Mazak Machine Control
Overload Detection System
Auto Power On/Off + Warm-up
Tool Radius Compensation / 5-Axis (EIA Simultaneous)
CAT40

12” Thru-Hole Chuck B-212A0815 (1st Lathe Spindle)
12” Thru-Hole Chuck B-212A0815 (2nd Lathe Spindle)
