Equipment
B5400

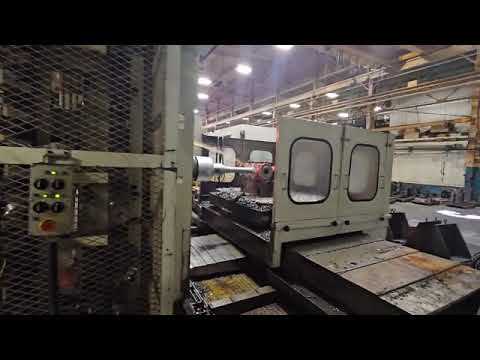

NOMURA HBA-110T-R3 HORIZONTAL BORING MILL (2008)

NOMURA HBA-110T-R3 HORIZONTAL BORING MILL (2008)

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
B5400
Manufacturer:
NOMURA
Model:
HBA-110T-R3
Condition:
Good
Year:
2008
Stock #:
210629
Status:
For Sale

Description

Explore precision with the 2008 NOMURA HBA-110T-R3 Horizontal Boring Mill. Features include 4.33" spindle, 30 hp power, 2500 RPM, and a full B-axis rotary table. Equipped with FANUC CNC control, Renishaw probe, and through spindle coolant for optimal performance.

Spindle Size4.33"109.98 mm
X-Horiz Tvl of Table78.7"1,999 mm
Y-Vert Tvl of Head60.2"1,529.1 mm
Power30 hp22.4 kW
RPM2,500 RPM2,500 RPM
Table-W55"1,397 mm
Table-L63"1,600.2 mm
Spindle Tvl.19.7"500.38 mm
ControlCNC (FANUC 16i-MB 5-AXIS CNC CONTROL)CNC (FANUC 16i-MB 5-AXIS CNC CONTROL)
Dimensions173" x 238" x 141"173" x 238" x 141"
Weight61,600 LBS61,600 LBS

TAPER IN SPINDLE #50
VERTICAL HEAD TRAVEL, Y-AXIS 60.2"
TABLE CROSS TRAVEL, X-AXIS 78.7"
SPINDLE TRAVEL, Z-AXIS 19.7"
SADDLE TRAVEL, W-AXIS 55.1"
TABLE SIZE, BUILT-IN ROTARY 55" X 63"
TABLE INDEXING 0.001 DEGREE
TABLE LOAD CAPACITY 15400 LBS
MAX. SPINDLE SPEED 5-3200 RPM
SPINDLE MOTOR 30 HP
ATC 40 POSITION
POWER REQUIREMENTS 200/220 V/3 PH/60 HZ, 67 KVA

FANUC 16i-MB 5-AXIS CNC CONTROL
FULL B-AXIS ROTARY TABLE
RENISHAW PARTS PROBE
THROUGH SPINDLE COOLANT
CHIP AND SPLASH ENCLOSURE
STEEL SLIDING WAY COVERS
CHILLER
CHIP CONVEYOR
