2023 UMC-750SS Super-Speed 5-Axis Vertical Machining Center;
Have one to sell?
ConditionUsed
1 available

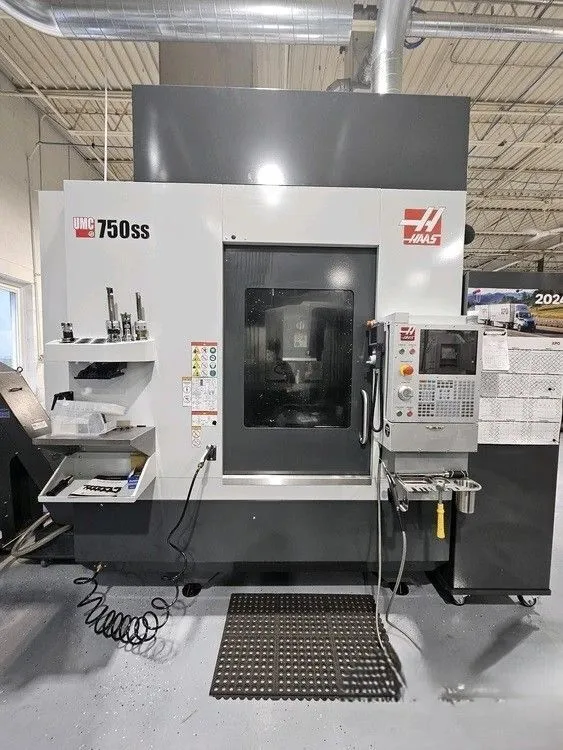

2023 HAAS UMC-750SS Super-Speed 5-Axis Vertical Machining Center with 30"x20"x20" range, 15,000 RPM, and CAT 40 taper. Equipped with advanced features like HAAS NextGen Control, 300 PSI coolant, and a high-speed tool changer. Approx. 1200 cutting hours.
B AXIS ROTATE OF TRUNNION -35 DEGREES TO 110 DEGREES
C AXIS TABLE ROTATION .001 DEGREE POSITIONING
MAXIMUM TOOL DIAMETER / LENGTH / WEIGHT 5" / 12" / 12 LBS.
RAPID TRAVERSE RATES 1200 IPM
MAXIMUM FEED RATES 650 IPM
DISTANCE SPINDLE NOSE TO TABLE TOP 4" - 24"
HAAS NEXTGEN CONTROL
STANDARD LOW-VOLT TRANSFORMER INCLUDED
CHIP TRAY FILTER KIT INCLUDED
*15,000-RPM SPINDLE $ 14,395.00
*HIGH-SPEED 50+1 SIDE-MOUNT TOOL CHANGER $ 19,895.00
THROUGH-SPINDLE COOLANT, 300 PSI (21 BAR) $ 6,295.00
CHIP-DISK FILTRATION CHIP CONVEYOR $ 16,795.00
ENCLOSURE EXHAUST SYSTEM $ 1,995.00
HIGH-PRESSURE FLOOD COOLANT $ 1,595.00
PROGRAMMABLE COOLANT NOZZLE $ 2,095.00
THROUGH-TOOL AIR BLAST $ 1,395.00
95-GALLON COOLANT TANK $ 2,795.00
AUXILIARY COOLANT FILTER $ 2,795.00
24V WORK TABLE LIGHT $ 195.00
MACHINE & OPTIONS TOTAL $ 276,240.00
CAT-40 TAPER.
1 OWNER MACHINE WITH APPROX. 1200 CUTTING HOURS:
