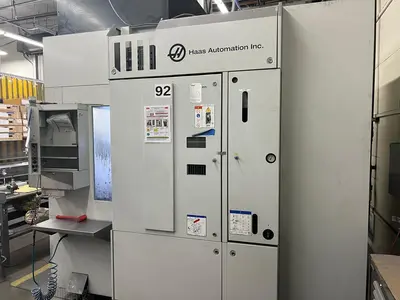

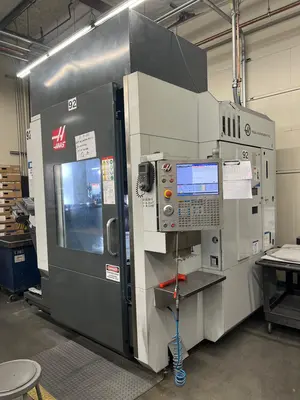

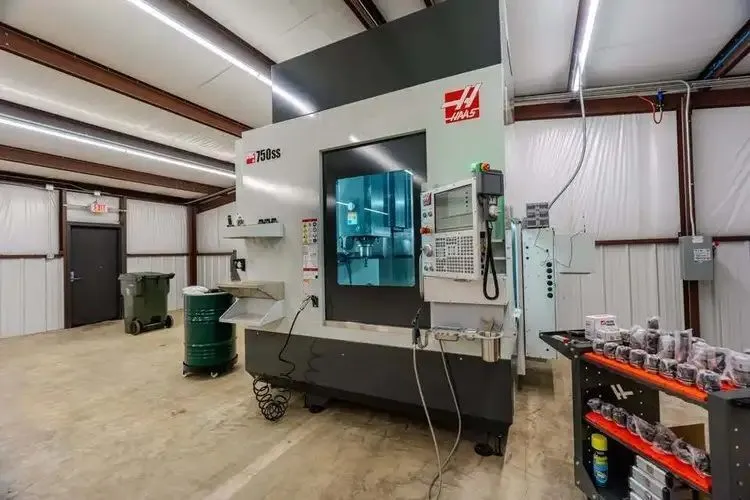

2022 UMC-750SS Super-Speed 5-Axis Vertical Machining Center;
Have one to sell?
ConditionUsed
1 available
5-axis machining is an effective means to reduce setups and increase accuracy for multi-sided and complex parts. The Haas UMC Series universal machining centers are cost-effective solutions for 3+2 machining and simultaneous 5-axis machining. The UMC-750SS has an integrated high-speed, dual-axis trunnion table with a 500 mm diameter platter with standard T-slots and a precision pilot bore for fixturing versatility. The trunnion provides +120 and -35 degrees of tilt and 360 degrees of rotation to provide excellent tool clearance and large part capacity. Comes with a roller-tray full of tooling.
B AXIS - TILT
TRAVEL: 120° TO 35-°
MAX SPEED: 170°/SEC
TORQUE (CONTINUOUS): 2240 FT-LBF
BRAKE TORQUE: 2,000 FT-LBF
C AXIS - ROTATION
TRAVEL: 360°
MAX SPEED: 179 °/SEC
TORQUE (CONTINUOUS): 1854 FT-LBF
BRAKE TORQUE: 900 FT-LBF
MAX PART SWING: 27 IN
PLATTER
PLATTER DIAMETER: 19.70 IN
MAX WEIGHT ON PLATTER: 660 LB
T-SLOT WIDTH: .626 IN TO .630 IN
NUMBER OF STD T-SLOTS: 7
T-SLOT CENTER DISTANCE: 2.48 IN
FEEDRATES -
MAX CUTTING: 650 IPM
RAPIDS ON X: 1200 IPM
RAPIDS ON Y: 1200 IPM
RAIPDS ON Z: 1200 IPM
AXIS MOTORS -
MAX THRUST X: 2750 LBF
MAX THRUST Y: 2750 LBF
MAX THRUST Z: 3400 LBF

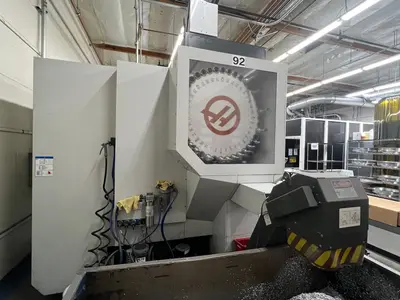

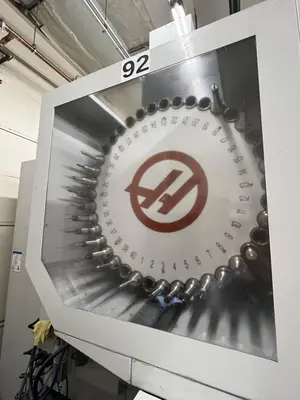

TOOL CHANGER -
TYPE: SMTC
CAPACITY: 30+1
MAX TOOL DIAMETER (FULL): 2.5 IN
MAX TOOL DIAMETER (ADJACENT EMPTY): 5 IN
MAX TOOL LENGTH (FROM GAGE LINE): 12 IN
MAX TOOL WEIGHT: 12 LB
TOOL-TO-TOOL (AVG): 1.80 S
CHIP-TO-CHIP (AVG): 2.40 S
GENERAL -
COOLANT CAPACITY: 55 GAL
HAAS NEXTGEN CONTROL
5 AXIS TRUNNION
HIGH SPEED 30+1 ATC SIDE MOUNT
THROUGH SPINDLE COOLANT HIGH PRESSURE

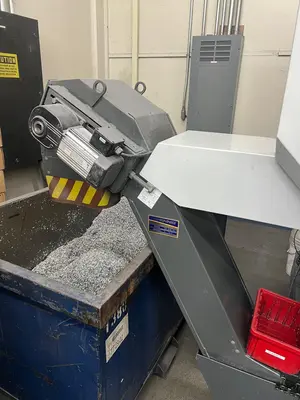

CHIP CONVEYOR
ENCLOSURE EXHAUST
PROGRAMMABLE COOLANT NOZZLE
12000 RPM, 40 TAPER, 30 HP, VECTOR, INLINE DIRECT DRIVE,

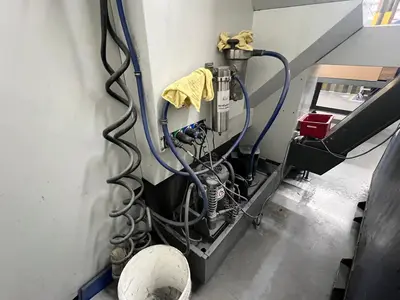

AUXILIARY FILTER
A TON OF TOOLING - MANY NEVER USED
FULL ENCLOSURE TOP COVERED
WIRELESS INTUITIVE PROBING
VISUAL PROGRAMING SYSTEM, RENISHAW
MACROS, SPINDLE ORIENTATION, COORDINATE ROTATION, AND SCALING
HIGH SPEED MACHINING
55 GALLON, 208 LITER COOLANT TANK

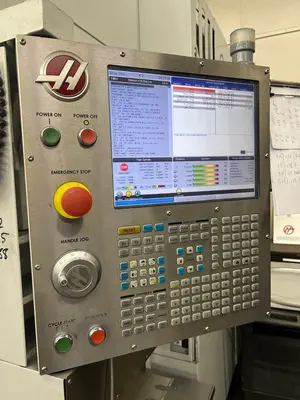

TOUCH SCREEN CONTROL WIDESCREEN MONITOR
LARGE REMOTE JOG HANDLE WITH TOUCHSCREEN DISPLAY
ETHERNET INTERFACE
WIFI CONNECTION FOR THE HAAS CONTROL, HAAS DROP WIRELESS TRANSFER
EARLY POWER-FAILURE DETECTION MODULE
ETHERNET INTERFACE
HAASCONNECT REMOTE MONITORING
SAFE RUN
1GB MEMORY
CNC CABINET COOLER
DYNAMIC WORK OFFSETS AND TOOL CENTER POINT CONTROL
MEDIA DISPLAY M-CODE M130
POSITION SCALE FEEDBACK ON B AND C ROTARY AXES
RIGID TAPPING, SYNCHRONIZED TAPPING, BUILT-IN TAP CYCLES AND UP TO 8X RETRACT SPEED.
CNC CONTROL CABINET COOLER
POWER SURGE PROTECTION
EARLY POWER-FAILURE DETECTION MODULE
SECOND HOME POSITION
ADVANCED TOOL MANAGEMENT
MEDIA DISPLAY M-CODE; M130
HAASCONNECT: REMOTE MONITORING
SAFE RUN
HAASDROP
HIGH-SPEED MACHINING
DYNAMIC WORK OFFSETS AND TOOL CENTER POINT CONTROL
RIGID TAPPING
STANDARD PROGRAM MEMORY, 1 GB
