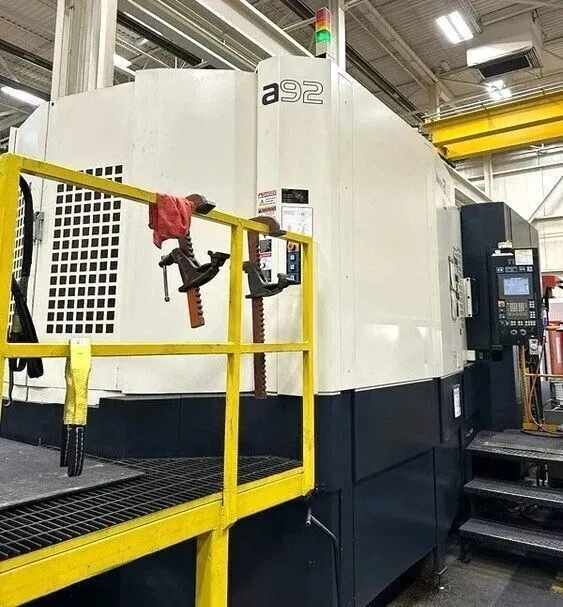

Makino A92 4 Axis Horizontal Machining Center (2012)
Have one to sell?
ConditionUsed
1 available
SPINDLE CENTER TO TOP OF PALLET 100-1350 MM 3.9" – 53.15"
SPINDLE NOSE TO CENTER OF PALLET 150-1500 MM 5.9 " – 59"
SPINDLE DRIVE MOTOR (15 MIN / CONTINUOUS) 35 / 25 KW 46.9 / 33.5
TIME TO FULL RAPID 280 MSEC
DISTANCE TO FULL RAPID 117 MM 4.6”
RAPID TRAVERSE 50 M/MIN. 1,969 IPM
FEEDRATE 50 M/MIN. 1,969 IPM
AXIS THRUST CAPACITY (CONTINUOUS / MAX) 1600 / 4900 KG 3250 / 10780 LBS.
TYPE OF DRIVE: AC DIGITAL SERVO MOTOR
BALL SCREW DIAMETER #45 TWIN BALL SCREW (CORE COOLING)
AXIS MOTOR 7 KW X 2 9.4 HP
LINEAR GUIDE PROTECTION ONE–PIECE STAINLESS STEEL COVERS
MAKINO PROFESSIONAL 5 CNC CONTROL
92 POSITION ATC
HIGH PRESSURE COOLANT THROUGH SPINDLE
CHIP CONVEYOR
COOLANT TANK
RENISHAW PROBING
CHIP BLASTER
SPINDLE CHILLER
AIR DRYER
TWO-POSITION PALLET CHANGER W/ ENCLOSED WORK SETTING STATION
LIFT-UP CHIP CONVEYOR
BALL SCREW CORE COOLING
PROFESSIONAL 5 CONTROL W/ 4MB DATA SERVER, USB SPINDLE LOAD MONITOR
92 TOOL ATC, SERVO DRIVEN WITH TOOL LOADING STATION
TABLE WASHING COOLANT (WASH UNDER PALLET)
AUTOMATIC AIR BLOWER NOZZLE
1000 PSI CHIP BLASTER THROUGH SPINDLE COOLANT
AIR DRYER
INCREASE PROGRAM STORAGE TO 640M
500 REGISTERED PROGRAMS
HIGH SPEED SKIP FUNCTION
600 MACRO COMMON VARIABLES
ENHANCED SGI
TOOL OFFSET PAIRS (ADD BY CAV)
TOOL OFFSET MEMORY TYPE C (ADD BY CAV)
48 WORK OFFSET (ADD BY CAV)
ADDITIONAL BLOCK SKIP (ADD BY CAV)
HANDLE INTERRUPTION (ADD BY CAV)
PROGRAM RESTART (ADD BY CAV)
AUTOMATIC Z AXIS RETRACT AND RESTART (ADD BY CAV)
TOOL CENTER POINT CONTROL FOR 5 AXIS MACHINING (ADD BY CAV)
TILTED WORKING PLANE COMMAND (ADD BY CAV)
2GM MEMORY UPGRADE
AIR/OIL MIST UNIT
HYDRO MODIFICATION & INSPECTIONS
UPGRADE TO 6,600 LBS TABLE CAPACITY
INSTALLED NEW IN 2012
