2012 HAAS VF-6/40 TR 5-AXIS
Have one to sell?
ConditionUsed
1 available

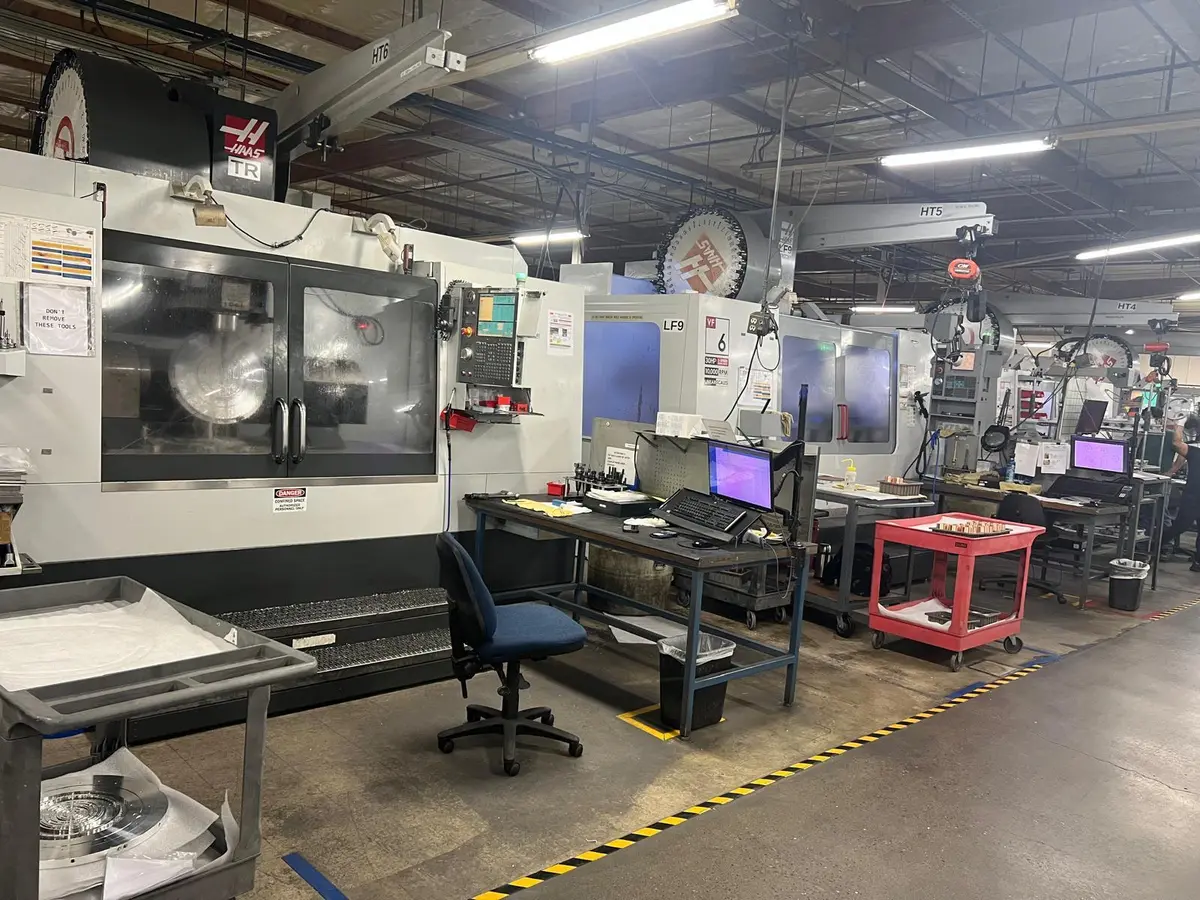

2012 Haas 5-Axis Vertical Machining Center
Qty Stock No. Description of Merchandise COST $169,995.00
1 VF-6/40TR Haas 5-Axis Vertical Machining Center, 64" x 32" x 30" (1626 x 813 x 762 mm), with integrated 12.2" (310
mm) 2-axis trunnion rotary table, 40 taper, 30 hp (22.4 kW) vector drive, 8100 rpm, inline direct-drive,
24+1 side-mount tool changer, 540 ipm (13.7 m/min) X rapids, 600 ipm (15.2 m/min) Y & Z rapids, automatic

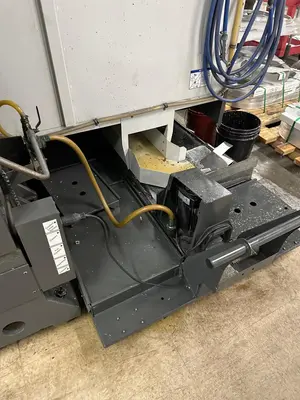

chip auger, programmable coolant nozzle, 750 MB program memory, coordinate rotation & scaling, color
remote jog handle, macros, high-speed machining, 15" color LCD monitor, USB port, memory lock keyswitch,
rigid tapping and 95-gallon (360 liter) flood coolant system.
1 10K-40T-IN 10,000-rpm Spindle, Inline Direct-Drive, 30 hp (22.4 kW), 40-Taper COST $2,995.00
1 HIL High-Intensity Lighting COST $695.00
1 SMTC-40-UP Side-Mount Tool Changer, 40 taper, 40+1 tools COST $8,095.00
1 VPH-6 Overhead Crane Arm ,1000 lb (454 kg) capacity; does not include lifting hoist COST $2,295.00
1 WIPS-R Wireless Intuitive Probing System; Renishaw COST $5,195.00
1 TR310 sn 904766 310 mm (12.2") Tilting 2-Axis Trunnion Rotary Table, with scale feedback on the A (tilting) axis. Requires COST $46,495.00
TR310 sn 904766 Haas mill with 4th-and 5th-axis drives for true 4th- and 5th-axis operation. Scale feedback functional
TR310 sn 904766 only on Haas mills with software version 18.xx or later. Scale feedback does not function with rotary
TR310 sn 904766 control box.
2 5th Axis for Two existing Haas Machines $0.00
1 5AXBL 5th-Axis Drive and Wiring sn 1075921 (4th-axis drive not included) COST $5,895.00
1 5AXBL 5th-Axis Drive and Wiring sn 1075922 (4th-axis drive not included) COST $5,895.00
Total for page 2 $35,600.00
Subtotal $283,155.00
Sales Tax To be billed
Approx Freight To be billed
Approx Rigging To be billed
Less Down Payment $0.00
Total $283,155.00
Qty Stock No. Description of Merchandise
1 Special Discount ($10,895.00)
1 CT40 CT Option $0.00
1 Option Discount $0.00
1 The VF-6 that will be running the new trunnions are serial #s 1075921 and 1075922 $0.00
1 TR310 sn 904974 310 mm (12.2") Tilting 2-Axis Trunnion Rotary Table, with scale feedback on the A (tilting) axis. Requires COST $46,495.00
TR310 sn 904974 Haas mill with 4th-and 5th-axis drives for true 4th- and 5th-axis operation. Scale feedback functional only on Haas mills with software version 18.xx or later. .
1 COR10100 ROTARY, REPLACE SIGMA 5 WITH SIGMA 1 $0.00
1 COR10100 ROTARY, REPLACE SIGMA 5 WITH SIGMA 1 $0.00
1 Install SRID# 306280 $0.00
1 TR310 PO#12077731 Yellow Tracking # 830-358543-2 $0.00
Total $283,155.00
Feed Cutting Hours 1224
.

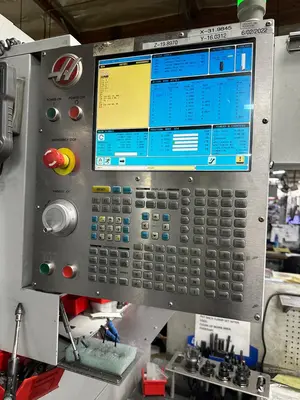

HAAS CNC CONTROL
10,000-RPM SPINDLE, INLINE DIRECT-DRIVE, 30 HP (22.4 KW), CAT40-TAPER
HIGH-INTENSITY LIGHTING
SIDE-MOUNT TOOL CHANGER, 40 TAPER, 40+1 TOOLS $8,095.00
OVERHEAD CRANE ARM, 1000 LB (454 KG) CAPACITY; DOES NOT INCLUDE LIFTING HOIST
WIPS-R WIRELESS INTUITIVE PROBING SYSTEM; RENISHAW
1 TR310 S/N 904766 310 MM (12.2") TILTING 2-AXIS TRUNNION ROTARY TABLE, WITH SCALE FEEDBACK ON THE A (TILTING) AXIS. REQUIRES HAAS MILL WITH 4TH AND 5TH-AXIS DRIVES FOR TRUE 4TH AND 5TH-AXIS OPERATION. SCALE FEEDBACK IS FUNCTIONAL ONLY ON HAAS MILLS WITH SOFTWARE VERSION 18.XX OR LATER. SCALE FEEDBACK DOES NOT FUNCTION WITH THE ROTARY CONTROL BOX.
1007 CUT HOURS
Equipment, descriptions, and specifications are intended only as a guide.
Item(s) are sold "As Is, Where Is" As inspected, unless otherwise stated and conveyed in writing.
Please feel free to contact us for any service requests and requirements, as we have service techs available.
