Equipment
CNC Lathes 2-Axis, Multi-Axis, & Swiss
CNC LATHES 2 AXIS
MAZAK QTN 450-II/ 80" WITH STEADY REST (2012)

MAZAK QTN 450-II/ 80" WITH STEADY REST (2012)

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MAZAK
Model:
QTN 450-II
Condition:
Excellent
Year:
2012
Stock #:
210919
Status:
For Sale

Description

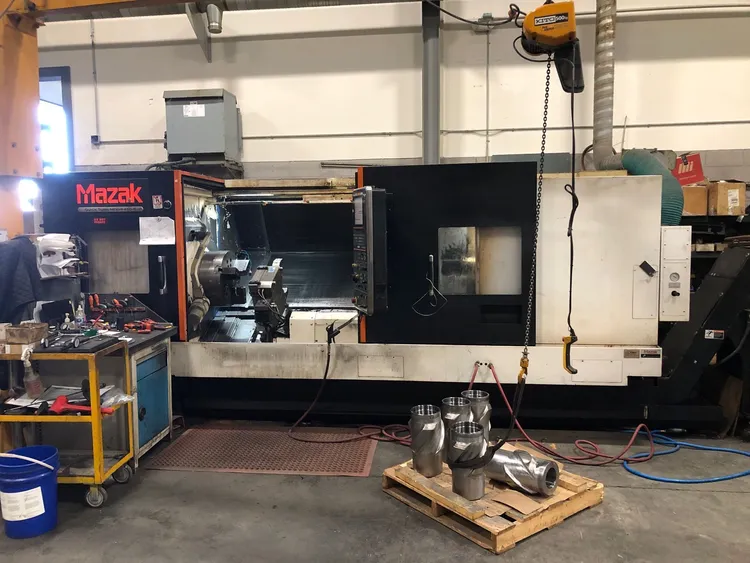

2012 MAZAK QTN 450-II CNC Lathe features a max swing of 33.26", 22.8" max turning diameter, 80" between centers, hydraulic chuck, tailstock, and equipped with MAZATROL MATRIX NEXUS, tool presetter, and hydraulic steady rest. 50 hp spindle with 2000 RPM.

Max. Swing33.26"844.8 mm
Max Turning Diameter22.8"579.12 mm
Spindle Bore/Max Bar Capacity7.24"/ 6.5"7.24"/ 6.5"
Z Travel83.5"2,120.9 mm
X Travel12.13"308.1 mm
Distance Between Centers8080
Chuck Size20"508 mm
Chuck TypeHydraullicHydraullic
Spindle Motor50 hp
Spindle Speeds (RPM)20002000
Spindle Bore/Bar Capacity7.24 in
Max. Bar Capacity6.5"165.1 mm
Turret Tool Positions1212
TailstockYesYes
Chip ConveyorYesYes
Chip ConveyorSideSide
Steady RestYesYes
Rear Chuck PrepNoNo
Rear ChuckNoNo
ControlCNC (MAZATROL MATRIX NEXUS)CNC (MAZATROL MATRIX NEXUS)
Dimensions264" x 104" x 84"264" x 104" x 84"
Weight25,910 LBS25,910 LBS

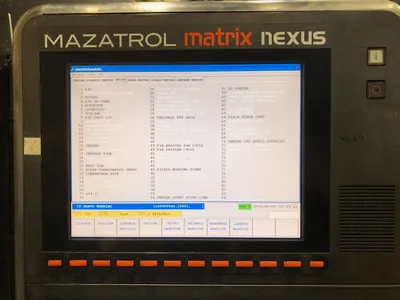

MAZATROL MATRIX NEXUS CONTROL
CHIP CONVEYOR
COOLANT TANK
TOOL PRESETTER
TAILSTOCK

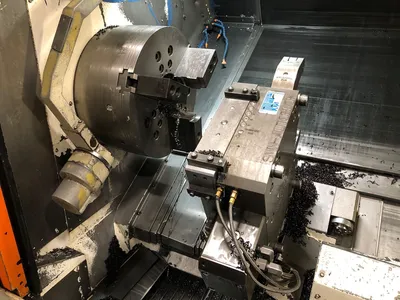

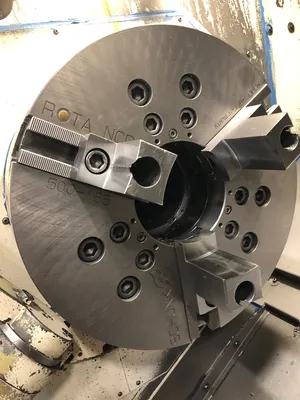

SCHUNK ROTA NCD-500-165 HYDRAULIC CHUCK
SMW AUTOBLOK SLU-X-4-ZS HYDRAULIC STEADY REST, 30-245 MM CAPACITY
CONTROL OPTIONS LIST ON REQUEST
