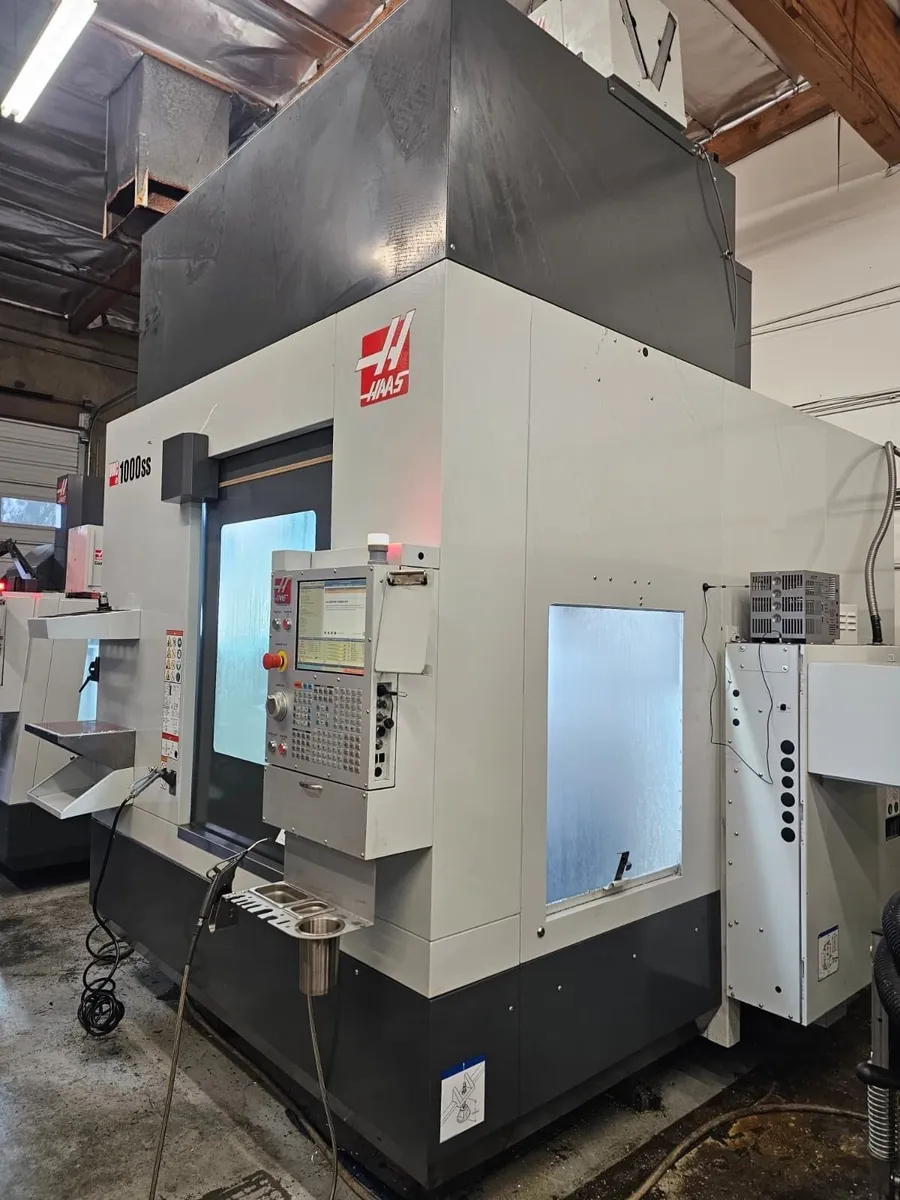

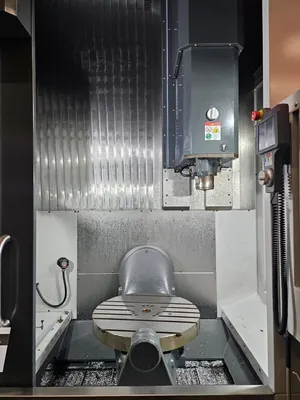

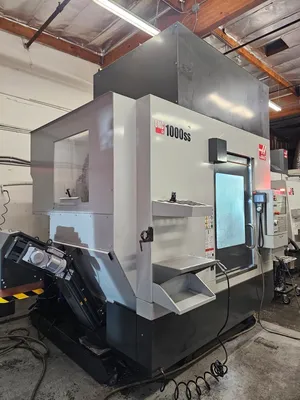

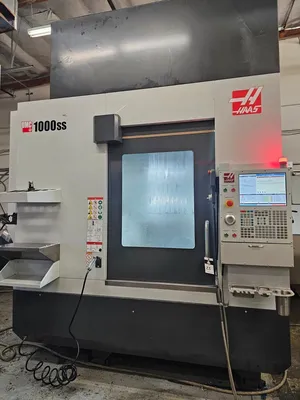

Used 2023 HAAS UMC-1000SS | Universal Machining Centers

Travel 120 ° to 35- °
Max Speed 170 °/sec
Torque (Continuous) 2240 ft-lbf
Brake Torque 2000 ft-lbf
C Axis - Rotation S.A.E
Travel 360 °
Max Speed 179 °/sec
Torque (Continuous) 1854 ft-lbf
Brake Torque 900 ft-lbf
Max Part Swing 34.0 in.

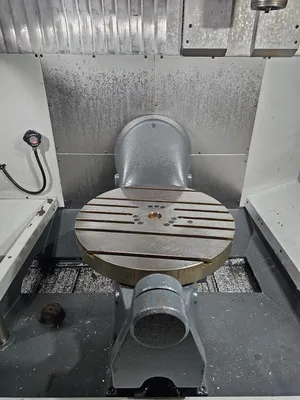

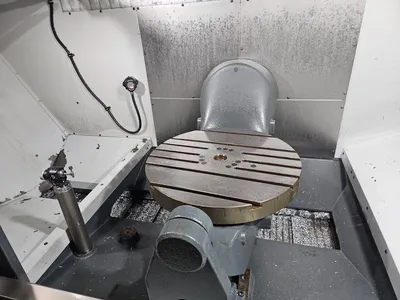

Platter S.A.E
Platter Diameter 25.00 in
Max Weight on Platter 1000 lb
Max Weight on Platter
w/Pallet Pool 200 lb
T-Slot Width 0.626 in to 0.630 in
Number of Std T-Slots 7
Feedrates S.A.E
Max Cutting 833 ipm
Rapids on X 1200 ipm
Rapids on Y 1200 ipm
Rapids on Z 1200 ipm
Axis Motors S.A.E
Max Thrust X 3300 lbf
Max Thrust Y 3300 lbf
Max Thrust Z 4050 lbf
Tool Changer S.A.E
Type SMTC
Capacity 30+1
Max Tool Diameter (full)** 2.5 in
Max Tool Diam. (adj. empty)** 5.0 in
Max Tool Length (from gage line) 12.00 in
Max Tool Weight 12.0 lb
Tool-to-Tool (avg) 1.80 s
Chip-to-Chip (avg) 2.40 s
General S.A.E
Coolant Capacity 55 gal
Air Required† 4 scfm @ 100 psi
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi

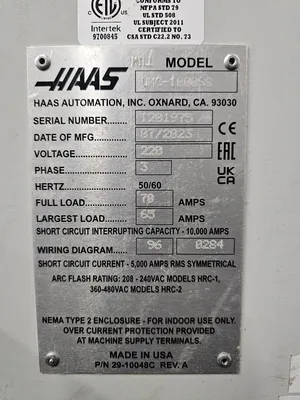

Electrical Specification S.A.E
Spindle Speed 12000 rpm
Drive System Inline Direct-Drive
Spindle Power 30.0 hp
Input AC Volt (3 Phase) - Low 220 VAC
Full Load Amps (3 Phase) - Low 70 A
Input AC Volt (3 Phase) - High* 440 VAC
Full Load Amps (3 Phase) - High* 35 A
