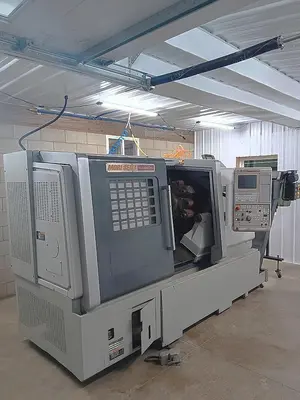

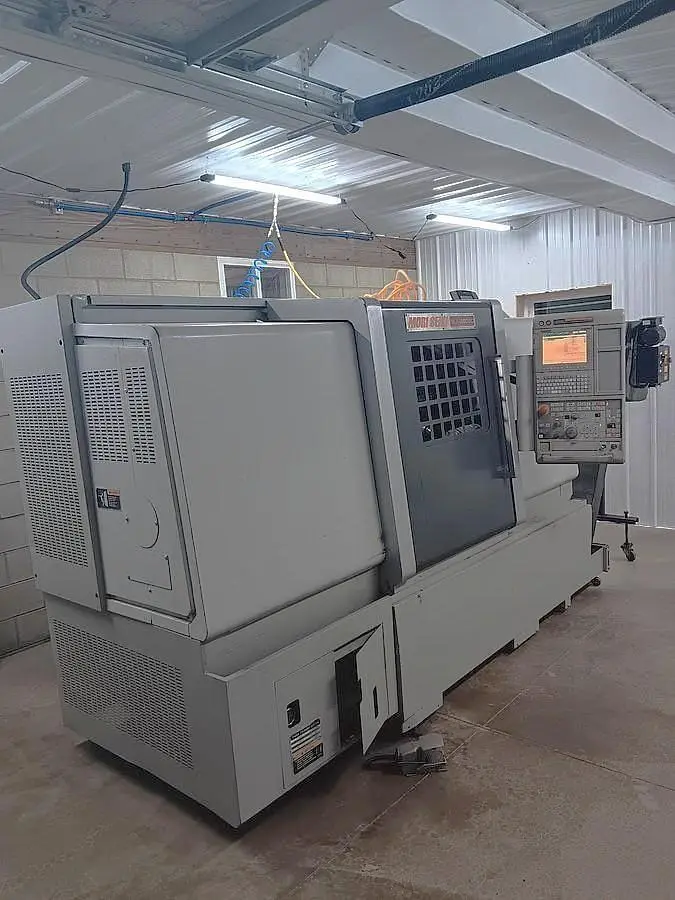

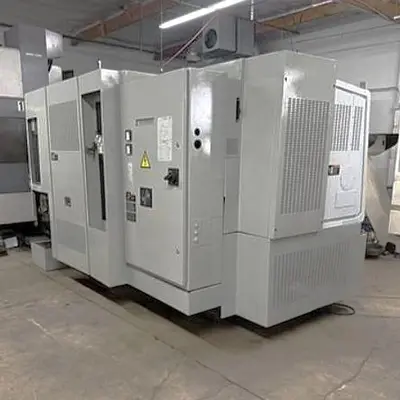

DMG-MORI NLX-2500MC/ 700

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DMG-MORI
Model:
NLX-2500MC/ 700
Year:
2012
Stock #:
210986
Status:
For Sale

Description

Explore precision with the used 2012 DMG-MORI NLX-2500MC/700 CNC Lathe. Featuring full C-axis rotation, live milling/drilling, 12" hydraulic chuck, and extensive tooling, this workhorse supports advanced machining with integrated chip conveyor and tool presetter.

Maximum Swing36.4"924.56 mm
Max Turning Diameter14.4"365.76 mm
Main Spindle Bore/Max Bar Capacity3.6/ 3.13.6/ 3.1
Tail Stock/Sub SpindleTail StockTail Stock
Maximum Swing Over Cross Slide23.2"589.28 mm
Maximum Cutting Length27.7"703.58 mm
X-Axis Travel (X1, X2, X3)10.2"10.2"
Z-Axis Travel (Z1, Z2, Z3)31.3"31.3"
C-Axis Indexing (1, 2).001 DEGREES.001 DEGREES
Main Spindle Chuck Size12"304.8 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.6"91.44 mm
Main Spindle Maximum Bar Work3.1"78.74 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)25 HP25 HP
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 260006000
Turret Rotary Tool Horse Power 1, 27.07.0
Chip ConveyorYesYes
Chip ConveyorSideSide
Tool Eye Automatic Front SpindleYesYes
Rapid Traverse, X-Axis11811181
Rapid Traverse, Z-Axis11811181
ControlCNC (MORI MITSUBISHI 730BM)CNC (MORI MITSUBISHI 730BM)
Dimensions122" x 80" x 84"122" x 80" x 84"
Weight12,804 LBS12,804 LBS

SPINDLE NOSE                          A2-8
SPINDLE TORQUE                        441.8 FT. LBS.

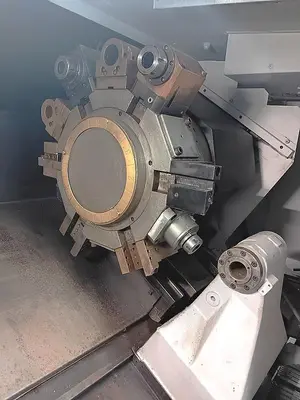

TOOLS                                 12 (ALL LIVE)
TURRET INDEX (SINGLE STEP)            0.27 SECONDS
TAILSTOCK TAPER                       MT#5

MORI/ MITSUBISHI 730BM

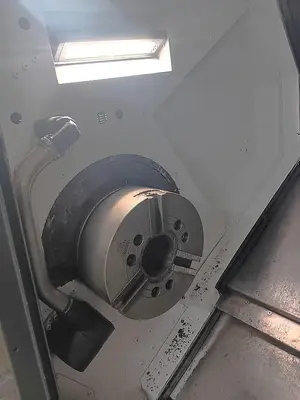

12" 3 JAW HYDRAULIC CHUCK
FULL C AXIS SPINDLE ROTATION
LIVE MILLING/DRILLING CAPABILITY
CHIP CONVEYOR
TAILSTOCK
TOOL PRESETTER
RS 232 PORT INTERFACE
COOLANT SYSTEM WITH TANK & PUMP
WIRED 220V ELECTRICS
ALL AVAILABLE TOOLING INCLUDING LIVE HOLDERS
