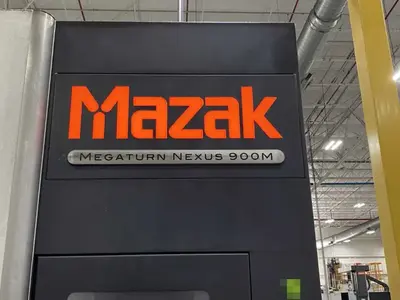

MAZAK MEGATURN NEXUS 900M CNC VTL w/ 36" CHUCK - 2 MACHINES AVAILABLE
Have one to sell?
ConditionUsed
1 available

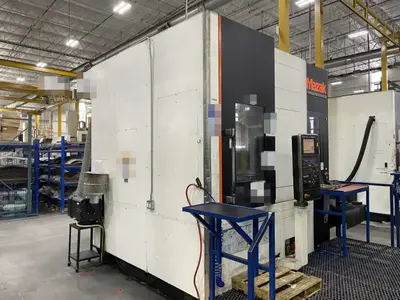

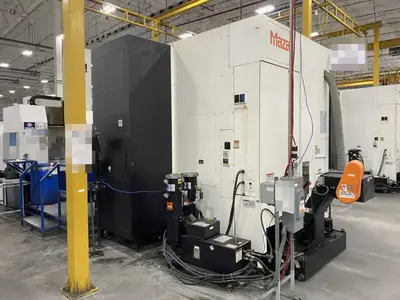

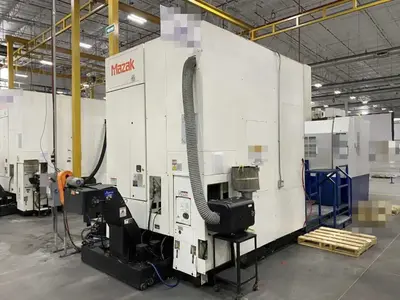

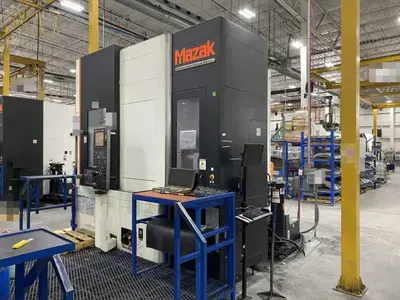

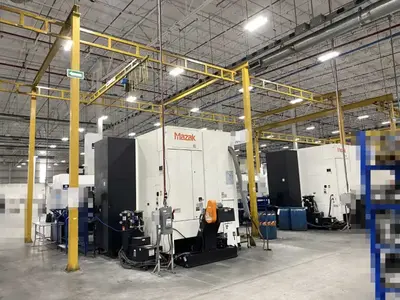

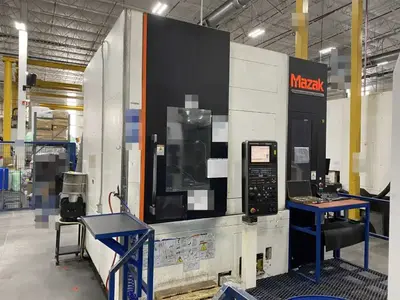

2013 Mazak MEGATURN NEXUS 900M CNC vertical turning center with live-tool milling, C-axis contouring, 36" chuck, MAZATROL MATRIX NEXUS 2, chip conveyor and coolant filtration. Two machines available.
Maximum spindle torque: 2,696 ft-lb
Turret 12-position VDI turret
Live-tool torque 70 ft-lb
Additional features
- Heavy-duty vertical turning spindle.
- Live-tool milling, drilling, and tapping.
- C-axis contouring and positioning.
- 12-station VDI live-tool turret.
The 900M is capable of drilling approximately 1-inch holes,
milling 1-inch end mills, and tapping M24 × 3 threads
under the manufacturer's stated milling capability

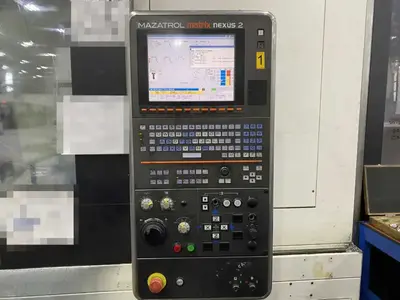

MAZATROL MATRIX NEXUS 2
36" CHUCK

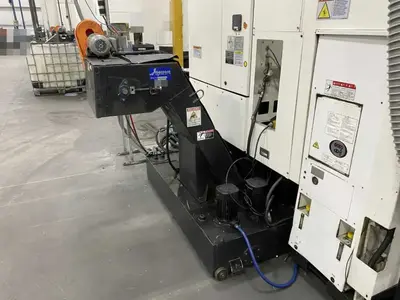

JORGENSEN CONVEYORS HINGED-BELT CHIP CONVEYOR WITH COOLANT TANK AND THREE-PUMP COOLANT ASSEMBLY
STEEL OPERATOR WORK TABLE / STAND

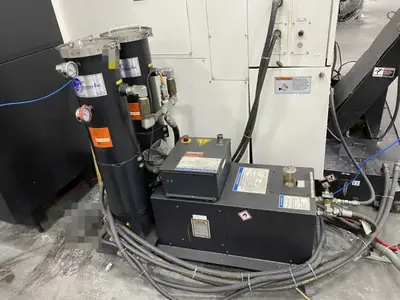

MAZAK SUPERFLOW COOLANT FILTRATION SYSTEM

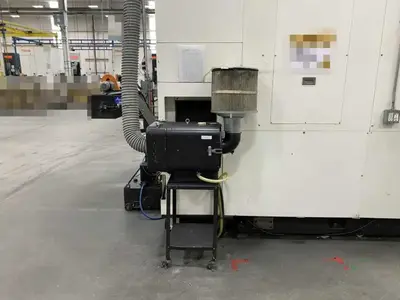

OIL-MIST EXTRACTION UNIT (MIST COLLECTOR WITH CARTRIDGE FILTER AND BLOWER)
PM Work Checklists:
Daily (~10 min): Guard/interlock inspection, indicator lamp check, air pressure (80-90 PSI), coolant supply and reservoir level, way lube oil level, chuck pressure regulator, extraction hose (if applicable), exterior cleaning.
Weekly (~25 min): Coolant and hydraulic hose inspection, hydraulic fluid level, chip conveyor operation/hardware/covers (if equipped), flexible electrical conduit (if applicable), extractor fan operation.
Annual (21-point inspection): Spindle belts/gears/couplings, spindle runout, spindle drive system, axis backlash, ball screws/bearings, way covers/gibs, turret operation and alignment, tool positions, lubrication system and grease points, hydraulic system, coolant system, air system leaks, electrical wiring/connectors, machine leveling, filters, optional equipment (conveyor, feeder, bar loader).
This is the 900M model, equipped with live milling tooling (driven tools and C-axis), giving it full milling and drilling capability in addition to vertical turning. This makes it a true multitasking turning and milling center, not a standard turning-only unit.
2013 Mazak MEGATURN NEXUS 900M CNC vertical turning center with live-tool milling, C-axis contouring, 36" chuck, MAZATROL MATRIX NEXUS 2, chip conveyor and coolant filtration. Two machines available.
Imperial
| Table Dia | 36" |
| Maximum Swing | 39.37" |
| Maximum Turning Diameter | 36.22" |
| Maximum Turning Height | 31.5 |
| Table Weight Capacity | 6,614 lb |
| Vertical Travel of Ram, Z-Axis | 34.49" |
| Horizontal Railhead Travel, X-Axis | 18.5 |
| Chuck size | 36 |
| Main Table Motor | 40/ 30 |
| Table RPM | 1,250 RPM |
| Live Spindle Motor | 10 |
| Live Spindle Speed, 2-Ranges | 4000 |
| C-Axis Contouring | 360,000 POSITION |
| Automatic Tool Changer | 12 |
| Rapid Traverse X/Z | 945 |
| Feed Rate "C" Axis | 0.0001 deg |
| Control | CNC |
| Dimensions | 152" X 134" X 134" |
| Weight | 32,000 |
Maximum spindle torque: 2,696 ft-lb
Turret 12-position VDI turret
Live-tool torque 70 ft-lb
Additional features
- Heavy-duty vertical turning spindle.
- Live-tool milling, drilling, and tapping.
- C-axis contouring and positioning.
- 12-station VDI live-tool turret.
The 900M is capable of drilling approximately 1-inch holes,
milling 1-inch end mills, and tapping M24 × 3 threads
under the manufacturer's stated milling capability
MAZATROL MATRIX NEXUS 2
36" CHUCK
JORGENSEN CONVEYORS HINGED-BELT CHIP CONVEYOR WITH COOLANT TANK AND THREE-PUMP COOLANT ASSEMBLY
STEEL OPERATOR WORK TABLE / STAND
MAZAK SUPERFLOW COOLANT FILTRATION SYSTEM
OIL-MIST EXTRACTION UNIT (MIST COLLECTOR WITH CARTRIDGE FILTER AND BLOWER)
PM Work Checklists:
Daily (~10 min): Guard/interlock inspection, indicator lamp check, air pressure (80-90 PSI), coolant supply and reservoir level, way lube oil level, chuck pressure regulator, extraction hose (if applicable), exterior cleaning.
Weekly (~25 min): Coolant and hydraulic hose inspection, hydraulic fluid level, chip conveyor operation/hardware/covers (if equipped), flexible electrical conduit (if applicable), extractor fan operation.
Annual (21-point inspection): Spindle belts/gears/couplings, spindle runout, spindle drive system, axis backlash, ball screws/bearings, way covers/gibs, turret operation and alignment, tool positions, lubrication system and grease points, hydraulic system, coolant system, air system leaks, electrical wiring/connectors, machine leveling, filters, optional equipment (conveyor, feeder, bar loader).
This is the 900M model, equipped with live milling tooling (driven tools and C-axis), giving it full milling and drilling capability in addition to vertical turning. This makes it a true multitasking turning and milling center, not a standard turning-only unit.
