2013 MAZAK MEGATURN 900 VTL
Have one to sell?
ConditionUsed
1 available

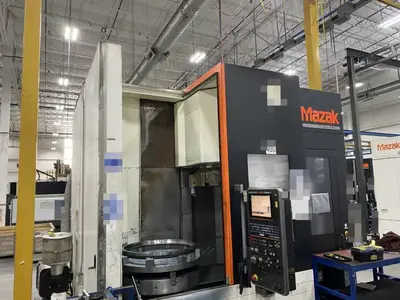

2013 MAZAK MEGATURN 900 vertical CNC lathe with MAZATROL MATRIX NEXUS control, 36" table, 39.37" swing, 40 hp motor and 12-position tool changer. Includes chip conveyor, coolant filtration and mist collector. Used.
Tool shank height 1.26" (32 mm)
Boring bar diameter 1.97" (50 mm)
Turret indexing time 0.40 sec per station
PM Work Checklists:
Daily (~10 min): Guard/interlock inspection, indicator lamp check, air pressure
(80-90 PSI), coolant supply and reservoir level, way lube oil level, chuck pressure regulator, extraction hose (if applicable), exterior cleaning.
Weekly (~25 min): Coolant and hydraulic hose inspection, hydraulic fluid level, chip conveyor operation/hardware/covers (if equipped), flexible electrical conduit (if applicable), extractor fan operation.
Annual (21-point inspection): Spindle belts/gears/couplings, spindle runout, spindle drive system, axis backlash, ball screws/bearings, way covers/gibs, turret operation and alignment, tool positions, lubrication system and grease points, hydraulic system, coolant system, air system leaks, electrical wiring/connectors,
machine leveling, filters, optional equipment (conveyor, feeder, bar loader).

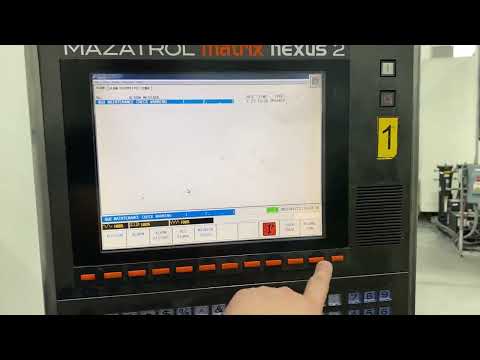

MAZATROL MATRIX NEXUS CONTROL

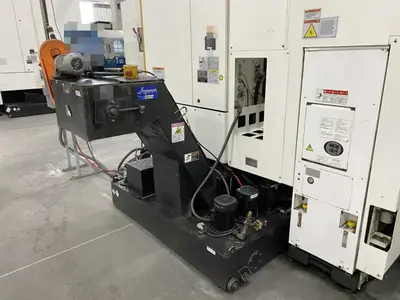

JORGENSEN CONVEYORS HINGED-BELT CHIP CONVEYOR WITH COOLANT TANK AND THREE-PUMP COOLANT ASSEMBLY
STEEL OPERATOR WORK TABLE / STAND
MAZAK SUPERFLOW COOLANT FILTRATION SYSTEM
OIL-MIST EXTRACTION UNIT (MIST COLLECTOR WITH CARTRIDGE FILTER AND BLOWER
2013 MAZAK MEGATURN 900 vertical CNC lathe with MAZATROL MATRIX NEXUS control, 36" table, 39.37" swing, 40 hp motor and 12-position tool changer. Includes chip conveyor, coolant filtration and mist collector. Used.
Imperial
| Table Dia | 36" |
| Table Load Capacity | 6,614 lb |
| Swing | 39.37" |
| Turning Height | 31.49" |
| Main Motor | 40 hp |
| X-Axis Travel | 18.5" |
| Z-Axis Travel | 34.49" |
| Automatic Tool Changer | 12 POSITION |
| Rapid Traverse X, Z | 945 IPM |
| Table Speed | 1,250 RPM |
| Power | 40 hp |

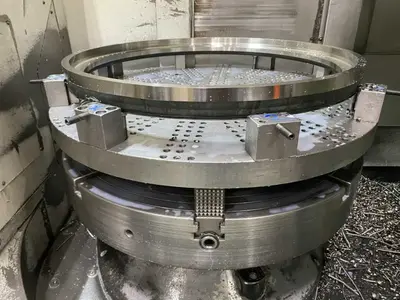

| Chuck Size | 36 in |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 95" x 138.4" x 134"' |
| Weight | 30,865 LBS |
Tool shank height 1.26" (32 mm)
Boring bar diameter 1.97" (50 mm)
Turret indexing time 0.40 sec per station
PM Work Checklists:
Daily (~10 min): Guard/interlock inspection, indicator lamp check, air pressure
(80-90 PSI), coolant supply and reservoir level, way lube oil level, chuck pressure regulator, extraction hose (if applicable), exterior cleaning.
Weekly (~25 min): Coolant and hydraulic hose inspection, hydraulic fluid level, chip conveyor operation/hardware/covers (if equipped), flexible electrical conduit (if applicable), extractor fan operation.
Annual (21-point inspection): Spindle belts/gears/couplings, spindle runout, spindle drive system, axis backlash, ball screws/bearings, way covers/gibs, turret operation and alignment, tool positions, lubrication system and grease points, hydraulic system, coolant system, air system leaks, electrical wiring/connectors,
machine leveling, filters, optional equipment (conveyor, feeder, bar loader).
MAZATROL MATRIX NEXUS CONTROL
JORGENSEN CONVEYORS HINGED-BELT CHIP CONVEYOR WITH COOLANT TANK AND THREE-PUMP COOLANT ASSEMBLY
STEEL OPERATOR WORK TABLE / STAND
MAZAK SUPERFLOW COOLANT FILTRATION SYSTEM
OIL-MIST EXTRACTION UNIT (MIST COLLECTOR WITH CARTRIDGE FILTER AND BLOWER
