Makino MCC2013-VG
Have one to sell?
ConditionUsed
1 available

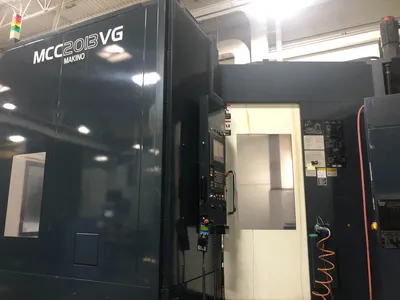

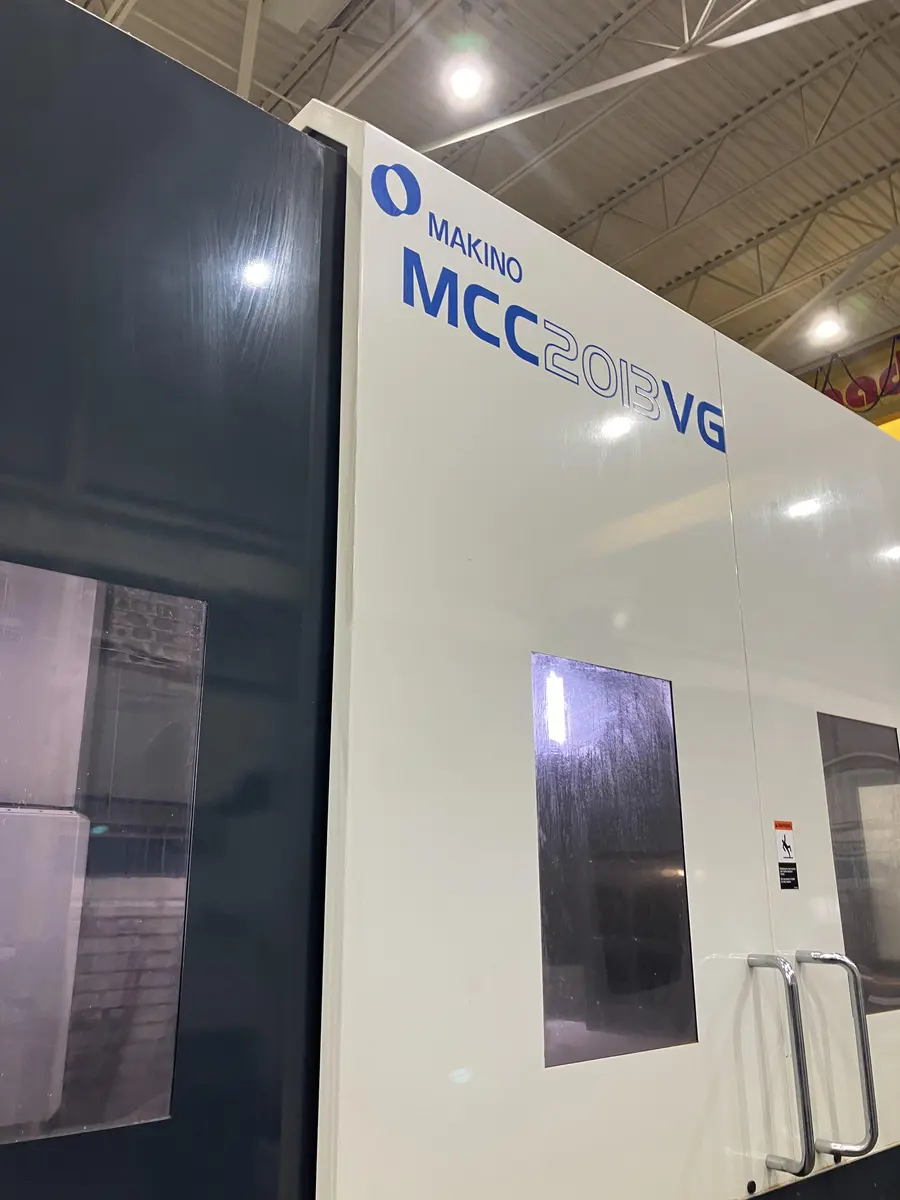

MAKINO MCC 2013 VG (6) AXIS HORIZONTAL/VERTICAL MACHINING CENTER
SPECIFICATIONS:
MAKINO MCC 2013 VG (6) AXIS HORIZONTAL/VERTICAL MACHINING CENTER
NEW 2014
CONTROL: MAKINO PRO 5 (FANUC SERIES 30i)

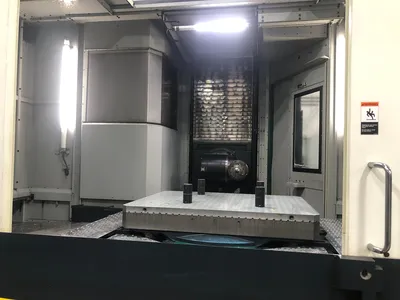

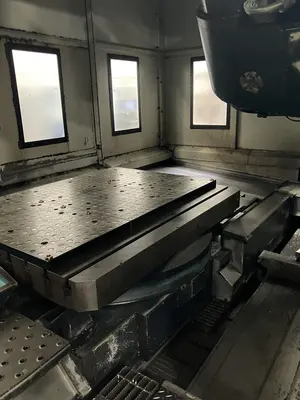

INDEXING ROTARY TABLE SIZE...................: 59" X 47"
TABLE MAX. LOAD .............................: 22,000 Lbs.
CROSS TRAVEL (X).............................: 80"
VERTICAL TRAVEL (Y)..........................: 51.5"
LONGITUDINAL TRAVEL (Z)......................: 51.5"
SPINDLE SPEEDS...............................: 5 TO 12,000 RPM
SPINDLE DRIVE................................: 40/29 HP
SPINDLE TAPER................................: HSK 100/A
MAX. MACHINING DIMENSIONS L x W x H..........: 80" X 51.5" X 51.5"
DISTANCE TABLE TOP TO SPINDLE CENTER LINE....: 10" TO 61"
A AXIS ROTATION .............................: -30 DEG. TO +30 DEGREE
A AXIS MINIMUM INDEXING ANGLE................: 1 DEGREE
C AXIS ROTATION .............................: +/- 185 DEGREE
C AXIS MINIMUM INDEXING ANGLE ...............: 1 DEGREE
RAPID TRAVERSE X,Y,Z AXIS ...................: 787 IPM
TOOL CHANGER.................................: 120 ATC
CUTTIG FEED RATE ............................: 787 IPM
LEAST INPUT ANGLE INCREMENTS X,Y,Z,B AXIS....: .0001 DEGREE
MAX. TOOL DIA EVERY POSITION/ADJACENT .......: 4"/8" DIA.
3 PLUS 2 SPINDLE INDEXING HEAD (1) DEGREE INCREMENTS A & C AXIS
(2) SPINDLE SPEED ELECTRIC RANGES FOR HIGH TORQUE AND HIGH SPEED
OPERATION
COOLANT THROUGH SPINDLE
MOIRE SCALE FEED BACK SYSTEM X,Y,Z AXIS (0.1 MICRON RESOLUTION)
FULL 4TH AXIS BUILT IN ROTARY TABLE 0.0001 DEGREE
SUPER GI MAKINO CONTROL FUNCTION
MIST COLLECTOR
LIFT UP TYPE CHIP CONVEYOR
FLOOD COOLANT
DATA SERVER
2 RANGE SPINDLE GEAR SELECTION
RENISHAW PROBE SOFTWARE
AUTOMATIC NON-CONTACT BLUM TOOL LASER PICK-UP (POP UP TYPE)
PORTABLE MANUAL PULSE GENERATOR
(600) MACRO COMMON VARIABLES
HIGH SPEED SMOOTH TCP
DATA CENTER STORAGE 360MB
99 TOTAL TOOL OFFSETS
INCH METRIC SELECTION
RIGID TAPPING STANDARD
MAKINO MCC 2013 VG (6) AXIS HORIZONTAL/VERTICAL MACHINING CENTER
Imperial
| Table Size | 59" X 47" |
| Table Load Capacity | 22 |
| Spindle Diameter | 4" |
| X-Axis Travel | 80" |
| Y-Axis Travel | 51.5" |
| Z-Axis Travel | 51.5" |
SPECIFICATIONS:
MAKINO MCC 2013 VG (6) AXIS HORIZONTAL/VERTICAL MACHINING CENTER
NEW 2014
CONTROL: MAKINO PRO 5 (FANUC SERIES 30i)
INDEXING ROTARY TABLE SIZE...................: 59" X 47"
TABLE MAX. LOAD .............................: 22,000 Lbs.
CROSS TRAVEL (X).............................: 80"
VERTICAL TRAVEL (Y)..........................: 51.5"
LONGITUDINAL TRAVEL (Z)......................: 51.5"
SPINDLE SPEEDS...............................: 5 TO 12,000 RPM
SPINDLE DRIVE................................: 40/29 HP
SPINDLE TAPER................................: HSK 100/A
MAX. MACHINING DIMENSIONS L x W x H..........: 80" X 51.5" X 51.5"
DISTANCE TABLE TOP TO SPINDLE CENTER LINE....: 10" TO 61"
A AXIS ROTATION .............................: -30 DEG. TO +30 DEGREE
A AXIS MINIMUM INDEXING ANGLE................: 1 DEGREE
C AXIS ROTATION .............................: +/- 185 DEGREE
C AXIS MINIMUM INDEXING ANGLE ...............: 1 DEGREE
RAPID TRAVERSE X,Y,Z AXIS ...................: 787 IPM
TOOL CHANGER.................................: 120 ATC
CUTTIG FEED RATE ............................: 787 IPM
LEAST INPUT ANGLE INCREMENTS X,Y,Z,B AXIS....: .0001 DEGREE
MAX. TOOL DIA EVERY POSITION/ADJACENT .......: 4"/8" DIA.
3 PLUS 2 SPINDLE INDEXING HEAD (1) DEGREE INCREMENTS A & C AXIS
(2) SPINDLE SPEED ELECTRIC RANGES FOR HIGH TORQUE AND HIGH SPEED
OPERATION
COOLANT THROUGH SPINDLE
MOIRE SCALE FEED BACK SYSTEM X,Y,Z AXIS (0.1 MICRON RESOLUTION)
FULL 4TH AXIS BUILT IN ROTARY TABLE 0.0001 DEGREE
SUPER GI MAKINO CONTROL FUNCTION
MIST COLLECTOR
LIFT UP TYPE CHIP CONVEYOR
FLOOD COOLANT
DATA SERVER
2 RANGE SPINDLE GEAR SELECTION
RENISHAW PROBE SOFTWARE
AUTOMATIC NON-CONTACT BLUM TOOL LASER PICK-UP (POP UP TYPE)
PORTABLE MANUAL PULSE GENERATOR
(600) MACRO COMMON VARIABLES
HIGH SPEED SMOOTH TCP
DATA CENTER STORAGE 360MB
99 TOTAL TOOL OFFSETS
INCH METRIC SELECTION
RIGID TAPPING STANDARD
