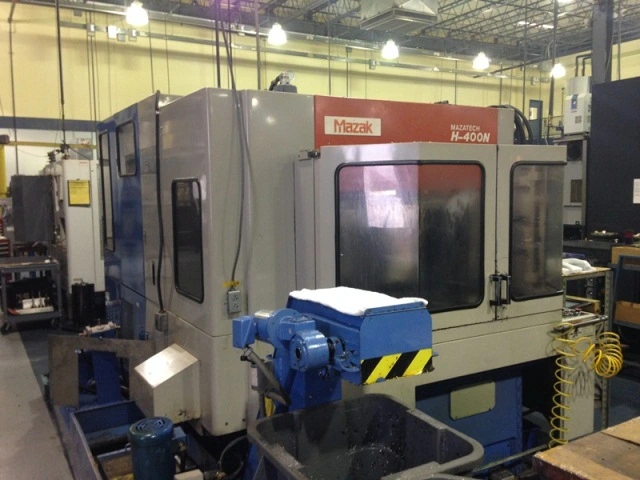

MAZAK H-400N

SPECIFICATIONS:
PALLET SIZE                                   15.75" X 15.75"
NUMBER OF PALLETS                             2
MAX. WEIGHT ON PALLET                         880 LBS.
INDEX POSITIONS                               360
MAX. WORKPIECE DIAMETER                       20.2"
MAX. WORKPIECE HEIGHT                         19.29"
X-AXIS TRAVELS                                22.05"
Y-AXIS TRAVELS                                18.11"
Z-AXIS TRAVELS                                12.08"
DISTANCE FROM SPINDLE CENTER TO PALLET TOP    1.18"-19.30"
DISTANCE FROM SPINDLE END OF PALELT CENTER    3.94"-24.02"
SPINDLE SPEEDS                                7000 RPM
SPINDLE TAPER                                 CAT 40
SPINDLE MOTOR                                 15 HP
FEED RATE (XYZ)                               945 IPM
NUMBER OF TOOLS                               60 ATC
MAX. TOOL DIAMETER (NOT ADJACENT)             5.91"
MAX. TOOL DIAMETER (ADJACENT)                 3.74"
MAX. TOOL WEIGHT                              26.4 LBS
MAX. TOOL LENGTH                              11.8"
