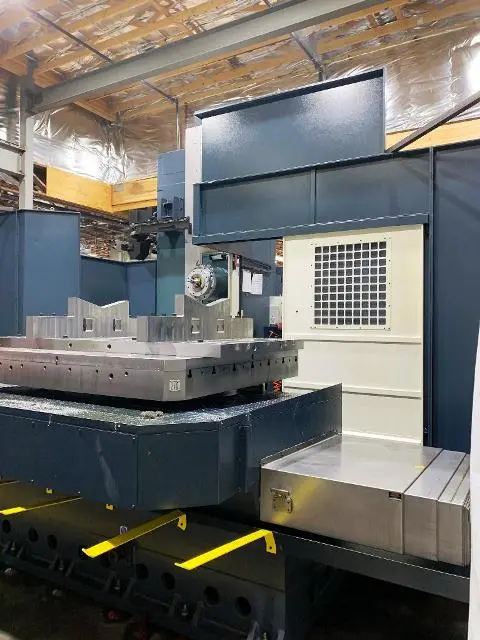

2019 JOHNFORD BMC-130 MOVING COLUMN ROTARY TABLE HORIZONTAL BORING MILL
Have one to sell?
ConditionUsed
1 available
THE 2019 JOHNFORD BMC-130 CNC MOVING COLUMN ROTARY TABLE HORIZONTAL BORING MILL HAS TRAVELS OF 118" X 90.5" X 63", 60 ATC CAT 50/ 2500 RPM SPINDLE RENISHAW OMP-60 PROBE AND FANUC 31iM-B CNC CONTROL.
SPECIFICATIONS:
SPINDLE DIAMETER 5.12"
MILLING SPINDLE DIAMETER 10.24"
SPINDLE MOTOR 50 HP
SPINDLE TAPER CAT 50
SPINDLE SPEED UP TO 2,500 RPM
TABLE WORKING SURFACE 70.86" X 62.99"
MAXIMUM WORKLOAD ON TABLE 33,000 LBS.
TABLE SWING DIAMETER 94.49"
X-AXIS TRAVELS 118"
Y-AXIS TRAVELS 90.5"
Z-AXIS TRAVELS 63"
SPINDLE TRAVEL, W-AXIS 27.5"
SPINDLE CENTER TO TABLE TOP 0" - 90.5"
SPINDLE NOSE TO TABLE CENTER 27.5" / 90.5" QUILL RETRACTED
SPINDLE NOSE TO TABLE CENTER 0" / 63" QUILL EXTENDED
NUMBER OF TOOLS 60
TOOL CHANGE TIME 12 SECONDS
MAXIMUM TOOL DIAMETER 4.9" W/ADJACENT TOOLS 9.8" WITHOUT
MAXIMUM TOOL WEIGHT 55 LBS.
MAXIMUM TOOL LENGTH 15.7"
RAPID TRAVERSE RATE X,Y,Z,W 472 IPM
RAPID TRAVERSE RATE B-AXIS 4 RPM (ROTARY TABLE)
CUTTING FEED RATE 0.01 TO 236 IPM
MACHINE WEIGHT, APPROX. 88,000 LBS
FANUC 31iM-B CNC CONTROL
FLOOD COOLANT SYSTEM WITH PROGRAMMABLE AIR BLAST
AIR BLAST FOR SPINDLE
CHIP CONVEYORS, SCREW TYPE & CATERPILLAR TYPE
2-SPEED GEARED HEADSTOCK
REMOTE HANDWHEEL
HEAT EXCHANGERS FOR CONTROL CABINETS
RIGID TAPPING
B-AXIS ROTARY TABLE .001 DEGREE
60 TOOL AUTOMATIC TOOL CHANGER
300 PSI COOLANT THRU SPINDLE
LINEAR SCALES
B-AXIS ROTARY SCALE
RS232-C PORT
RIGHT ANGLE HEAD WITH 50 TAPER
AUTO TOOL PRESETTER
RENISHAW OMP-60 PROBE
MACHINE BASE EXTENSION
CONTOURING & FACING HEAD
EXTENDED ROTARY COUPLING
CAPTO C6 TOOL SLIDE ADAPTER
SPECIAL EXTENDED BONNET 690MM
FACING & GENERATING HEAD WITH EXTENDED SHANK
