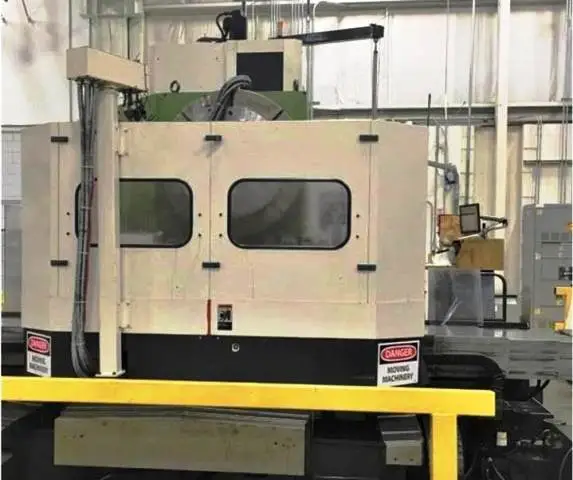

TOSHIBA BTD 110-R16/ 4 AXIS

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
BORING MILL VERTICAL/HORIZONTAL, TABLE & FLOOR TYPE CNC
Manufacturer:
TOSHIBA
Model:
BTD 110-R16/ 4 AXIS
Year:
1999
Stock #:
5309
Status:
For Sale

Description

THIS TOSHIBA BTD 110-R16 VERTICAL BORING MILL HAS BUILT IN ROTARY TABLE, FULL 4TH, A 55.1 X 63" TABLE, COOLANT THRU AND A 38 STATION ATC.

Table Size63" X 55.1"63" X 55.1"
Table Load Capacity1386013860
Spindle Diameter4.3"109.22 mm
X-Axis Travel70.9"1,800.9 mm
Y-Axis Travel70.9"1,800.9 mm
Z-Axis Travel57"1,447.8 mm
W-Axis Travel19.71"500.63 mm
Spindle Speed3,000 RPM3,000 RPM
Spindle Taper5050
Main Motor30 hp
Automatic Tool Changer3838
Rapid Traverse XYZ/W394/197394/197
ControlCNC (FANUC)CNC (FANUC)
Dimensions201" X 237" X 156"201" X 237" X 156"
Weight62,800 LBS.62,800 LBS.

TOSHIBA BTD-110-R16 - FULL 4TH
NEW 1999

SPECIFICATIONS:
X-AXIS TRAVEL (TABLE CROSS)         78.74"
Y-AXIS TRAVEL (SPINDLE-HEAD VERT.)  70.9"
Z-AXIS TRAVEL                       57"
W-AXIS TRAVEL (SADDLE)              19.71"
TABLE SIZE                          63" X 55.1"
TABLE INDEXING INCREMENT            .001 DEGREE ROTARY
DIAMETER OF SPINDLE BAR             4.3"
MAXIMUM WEIGHT ON TABLE             13,860 LBS.
TAPER IN SPINDLE                    CAT #50 TAPER
SPINDLE SPEEDS - 3 RANGES           5 - 3,000 RPM
SPINDLE MOTOR                       30 HP
NUMBER OF TOOL POSITIONS            38 ATC
RAPID TRAVERSE X, Y, Z / W          394 / 197 IPM
MACHINE DIMENSIONS                  201"X237"X156"
MACHINE WEIGHT                      62,800 LBS.

FANUC CONTROL
BUILT IN ROTARY TABLE 55.1" X 63" FULL 4TH AXIS
39.4" DIAMETER  HAWE ROTARY TABLE MOUNTED ON TABLE
COOLANT THROUGH THE SPINDLE - 140 PSI
38 STATION TOOL CHANGER
CHIP CONVEYOR
RS 232 PORT INTERFACE
REMOVABLE CHIP/ SPLASH GUARDS AROUND TABLE
ALL AVAILABLE MANUALS
STEEL WAY GUARDS
APPROXIMATELY 200 CAT 50 TOOL HOLDERS
