**SOLD HANKOOK MODEL VTC-30/40 CNC VERTICAL BORING MILL WITH LIVE TOOLING **SOLD**
Have one to sell?
ConditionUsed
1 available

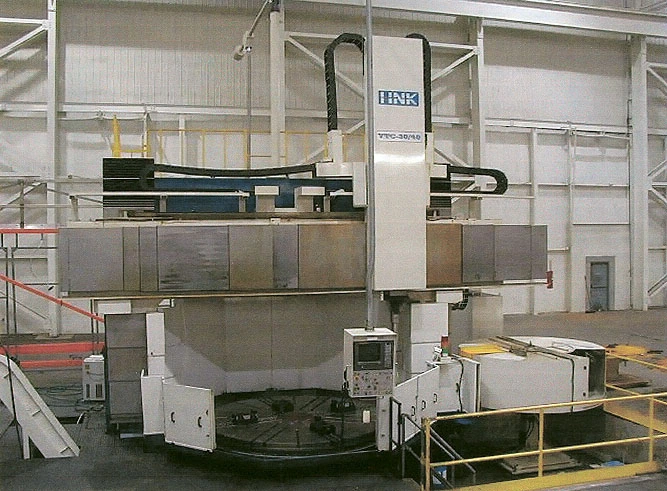

THIS HANKOOK MODEL VTC-30/40 CNC VTL VERTICAL BORING MILL WITH LIVE TOOLING SWINGS 157" AND 137" X-AXIS TRAVEL, FANUC 18 TC CONTROL, 16 TOOLS AND A HEAVY DUTY CAT 50/ 50 RPM SPINDLE.
SPECIFICATIONS
MACHINING CAPACITY:
TABLE DIAMETER 118.1"
MAX. SWING 157.5"
MAX. TURNING HEIGHT 86.6"
TABLE W/C-AXIS:
TABLE SPEED (2 STEPS) 1-50 RPM
MIN. INDEXING DEGREE 0.001 DEGREE
MAX. LOAD ON TABLE 5 5,100 LBS
TABLE DRIVE MOTOR 73/104 HP
RAM HEAD W/LIVE SPINDLE:
HORIZONTAL TRAVEL (X-AXIS) 136.8"
LIVE SPINDLE MOTOR 30/40 HP
LIVE SPINDLE SPEED 15 - 1,500 RPM
SPINDLE TAPER CAT #50
CROSS RAIL VERTICAL TRAVEL (Z-AXIS) 59"
POSITIONING 9.8" X 6 STEPS
RAPID TRAVERSE RATE 315 IPM
FEED RATE .394 - 118 IPM
FANUC SERIES 18-TC CNC CONTROL MOUNTEDIN PENDANT W/COLOR CRT
RS 232 PORT SPLASH GUARD ATC - 16 TOOLS (12 MILLING/4 TURNING)
4 JAW CHUCK
6 TURNING TOOL HOLDERS
RIGHT ANGLE MILLING ATTACHMENT
CHIP CONVEYOR
X-Z AXIS SCALES SPINDLE OIL COOLER
TRANSFORMER
FLOOD COOLANT SYSTEM LIFT UP CHIP CONVEYOR
ALL AVAILABLE MANUALS
