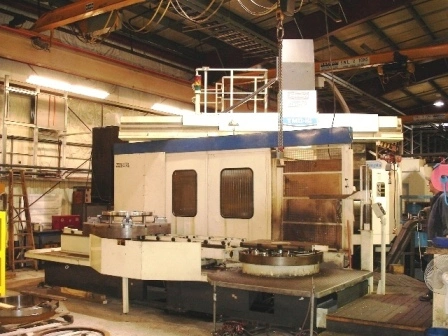

**SOLD TOSHIBA TMD 16 TWIN PALLET CNC VERTICAL TURNING & MILLING CENTER **SOLD
Have one to sell?
ConditionUsed
1 available
THIS BIG & BEEFY TOSHIBA TMD 16 TWIN PALLET CNC VERTICAL TURNING & MILLING CENTER COMES WITH (2) 63" TABLES, SWINGS 78.7" AND CAN HANDLE WORKPIECES UP TO 11,600 LBS. INCLUDES AN 86 POSITION ATC, FANUC CONTROL, COOLANT THRU AND 360,000 POSITION C-AXIS.
SPECIFICATIONS:
MAX TABLE LOAD CAP 3300
NUMBER OF TABLES 2
TABLE DIAMETER 63"TABLE
INDEXING .001
MAXIMUM SWING 78.7"
MAXIMUM CUTTING DIAMETER 78.7"
TABLE TO RAM BOTTOM 53.1
MAXIMUM CUTTING HEIGHT 45.3"
MAXIMUM WORKPIECE WEIGHT 11,600 LBS.
NUMBER OF SPEED RANGES 2
TABLE SPEED 1.6-280 RPM
TABLE HORSE POWER 60/50 HP AC
ROTARY SPINDLE SPEEDS 12.5-1500 RPM
SPINDLE DRIVE MOTOR 20 HP AC
AUTO TOOL CHANGER 86 ATC VERTICAL
RAM TRAVEL (Z-AXIS) 31.5"
LOGINHORIZONTAL RAM TRAVEL (X-AXIS) -31.7" - 44.1"
CROSS RAIL TRAVEL (UP & DOWN) 19.7"
RAM CROSS SECTION 8.66" X 8.66"
TRAVEL SPEED OF CROSSRAIL 11.8 IPM
RAPID TRAVERSE RATE X,Z, 472 / 315 IPM C-AXIS 800 DEG/MIN
CUTTING FEED RATES X,Z, .0-78.7 IPM
TABLE FEED RATES C-AXIS 1-315 DEG/MIN
MACHINE WEIGHT 72,200 LBS.
FANUC 15TC CNC CONTROL
EXTENDED MEMORY
CHIP CONVEYOR
C-AXIS 360,000
CAT 50 TAPER
AUTO PALLET CHANGER(2) 63"
FACE PLATE STYLE CHUCKS
TELESCOPIC GUARDS & COOLANT SHEILDS
COOLANT THRU TOOL
COOLANT SYSTEM
