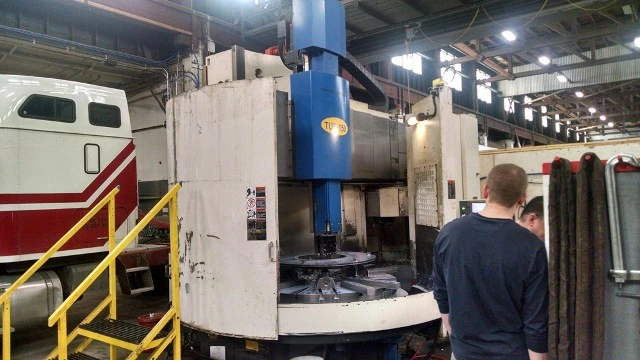

TOSHIBA TUE 150 CNC VTL

SPECIFICATIONS:
TABLE DIAMETER                                  57.09"
MAXIMUM SWING                                   78.74"
MAXIMUM HEIGHT FROM TABLE TOP TO RAIL           67.7"
MAXIMUM CUTTING HEIGHT                          61.02"
MAXIMUM CUTTING DIAMETER                        78.74"
MAXIMUM WORKPIECE WEIGHT                        17,600 LBS.
HORIZONTAL TRAVEL OF RAIL HEAD (X-AXIS)         3.94 ~ 45.28
VERTICAL TRAVEL OF RAM (Z-AXIS)                 35.43
MAXIMUM TORQUE                                  11,250 FT. LBS.
TABLE SPEEDLOW:                                 2 ~ 100 HIGH: 8 ~ 400
TABLE HORSE POWER                               50HP AC
AUTO TOOL CHANGER                               12 ATC
TOOL CHANGE TIME                                30 SEC.
VERTICAL TRAVERSE OF ARM                        41.3"
RAM CROSS SECTION                               9.87" X 8.7"
RAPID TRAVERSE RATE                             394 IPM
MACHINE WEIGHT                                  37,480 LBS.
HEIGHT                                          17.72'
FLOOR AREA                                      16.73' X 12.30'
