DAEWOO PUMA 240MSB
CNC LATHES MULTI AXIS.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

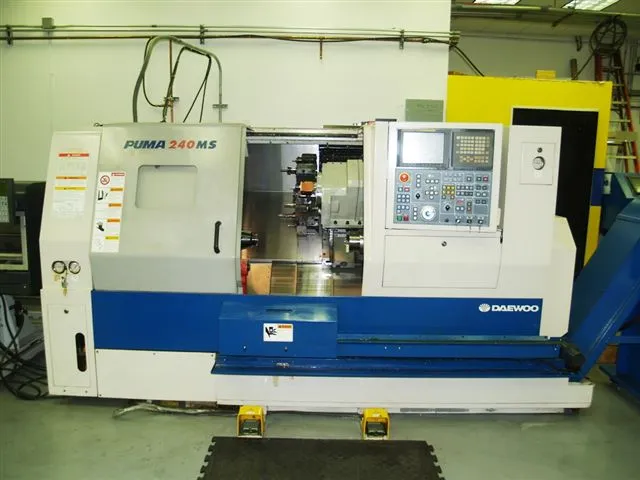

DAEWOO PUMA 240MSB MULTI AXIS CNC LATHE INCLUDES A FANUC 18i-TB CONTROL, FULL C AXIS, LNS BAR FEEDER, PARTS CATCHER, 5c ROYAL COLLET CHUCKS MAIN/SUB AND CHIP CONVEYOR.
| Maximum Swing | 21.7" |
| Max Turning Diameter | 11.4" |
| Main Spindle Bore/Max Bar Capacity | 2.99/ 2.68 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 15.4" |
| X-Axis Travel (X1, X2, X3) | 8" |
| Z-Axis Travel (Z1, Z2, Z3) | 22.8" |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Type | Collet |
| Main Spindle Bore Diameter | 2.99" |
| Main Spindle Maximum Bar Work | 2.68" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 25 |
| Sub Spindle/2nd Spindle Chuck Type | Collet |
| Turret Tool Positions 1, 2 | 12 |
| B-Axis Travel | 22.8 |
| B Axis Rotary Tool Spindle Speed | 6000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 5 hp |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Control | CNC (FANUC 18i-TB) |
| Dimensions | 135" x 66" x 72" |
| Weight | 10,040 LBS |
MAX SWING OVER BED 21.7"
SWING OVER CARRIAGE 15.4"
MAX TURN DIAMETER 11.4"
X AXIS TRAVEL 8"
Z/B AXIS TRAVEL 22.8"
RAPID TRAVERSE RATES (X/Z) 945/1200 IPM
SPINDLE SPEEDS 50-5000 RPM
SPINDLE MOTOR 25 HP
SPINDLE BORE DIAMETER 2.99"
DRAW TUBE 2.68"
TOOL CHANGER 12 POSITION
ROTATING TOOL SPEED 6000 RPM
ROTATING TOOL SPINDLE MOTOR 5 HP
MACHINE DIMENSIONS (L/W/H) 135" x 66" x 72"
MACHINE WEIGHT 10,040 LBS
EQUIPPED WITH:
FANUC 18i-TB CONTROL
FULL C AXIS
5c ROYAL COLLET CHUCKS MAIN/SUB
LNS BARFEEDER
PARTS CATCHER
CHIP CONVEYOR
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
7 LIVE HOLDERS!!
