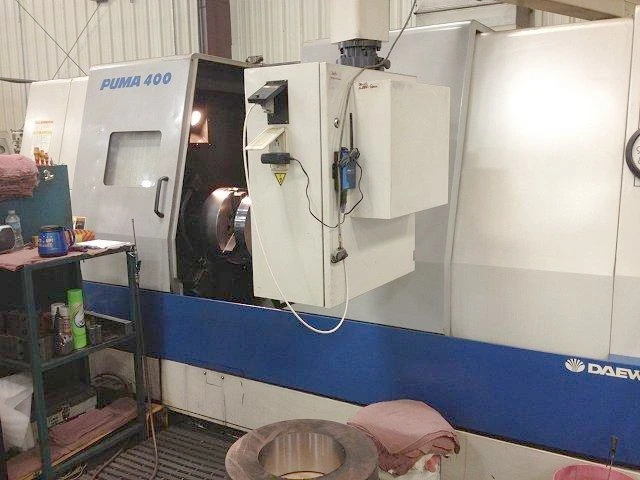

DAEWOO PUMA 400B
CNC LATHES 2 AXIS
DAEWOO PUMA 400B FEATURES A FANUC 18T CONTROL, 18" 3-JAW HYDRAULIC CHUCK, TAILSTOCK AND 40" CENTERS.
| Max. Swing | 30.3" |
| Max Turning Diameter | 22.4" |
| Spindle Bore/Max Bar Capacity | 5.2/4.5 |
| Z Travel | 43.5" |
| X Travel | 14.3" |
| Machining Length | 41.1" |
| Chuck Size | 18" |
| Chuck Type | Hydraullic |
| Spindle Motor | 50 hp |
| Spindle Speeds (RPM) | 2000 |
| Spindle Bore | 5.2 in |
| Max. Bar Capacity | 4.5" |
| Turret Tool Positions | 12 |
| Tailstock | YES |
| Chip Conveyor | Yes |
| Control | CNC (FANUC 18T) |
| Weight | 20,800 LBS |
SPECIFICATIONS:
MAX. SWING 30.3"
SWING OVER CARRIAGE 23.2"
MAX. TURNING DIA. 22.4"
MAX SHAFT LENGTH 41.1"
SPINDLE BORE DIA. 5.2"
X-AXIS TRAVEL 14.3"
Z-AXIS TRAVEL 43.5"
SPINDLE NOSE A2-11"
SPINDLE SPEED 20-2000 RPM
SPEEDS 2-SPEED GEAR BOX
SPINDLE TORQUE 1810 FT-LBS
TURRET CONFIGURATION 12
RAPID TRAVERSE 550/710 IPM
TAIL STOCK DIA. 4.7"
TAIL STOCK QUILL STROKE 4.7"
PROGRAMABLE T.S. BODY / TRAVEL STANDARD / 39.4"
MAIN MOTOR 50 HP AC
MACHINE WEIGHT 20,800 LBS.
FANUC 18T CNC CONTROL
18" 3-JAW HYDRAULIC CHUCK
TOOL SETTER
FULLY PROGRAMABLE BODY AND QUILL TAILSTOCK
CHIP CONVEYOR
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOL HOLDERS
