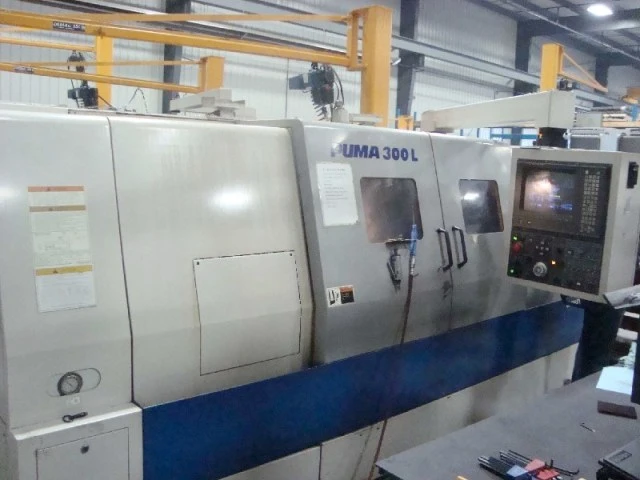

DAEWOO PUMA 300LC
CNC LATHES 2 AXIS
DAEWOO PUMA 300LC CNC LATHE COMES WITH A FANUC 21iT CONTROL, 50" CENTERS,, LNS PROGRAMMABLE STEADY REST, TAILSTOCK AND 12" CHUCK WITH 4.5" BAR CAPACITY.
| Max. Swing | 23" |
| Machining Length | 52.8" |
| Chuck Size | 12" |
| Max. Bar Capacity | 4.05" |
| Tailstock | Yes |
| Control | CNC (FANUC 21iT) |
| Weight | 16,380 |
SPECIFICATIONS:
MAX. SWING 22.4"
MAX. TURNING DIA. 19"
MAX SHAFT LENGTH 51.6"
SPINDLE BORE DIA. 5.1"
MAX BAR CAPACITY 4.5"
X-AXIS TRAVEL 10.2"
Z-AXIS TRAVEL 51.3"
SPINDLE NOSE A2-11"
SPINDLE SPEEDS 20 - 2000 RPM
SPEED RANGES 2 SPEED
TURRET CONFIGURATION 10
RAPID TRAVERSE 480/630 IPM
TAIL STOCK DIA. MT #5
TAIL STOCK QUILL STROKE 4.0"
MAIN MOTOR 35 HP AC
MACHINE WEIGHT 16,380 LBS.
FANUC 21iT CNC CONTROL
LNS HYDRAULIC PROGRAMMABLE STEADY REST
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL MANUALS
