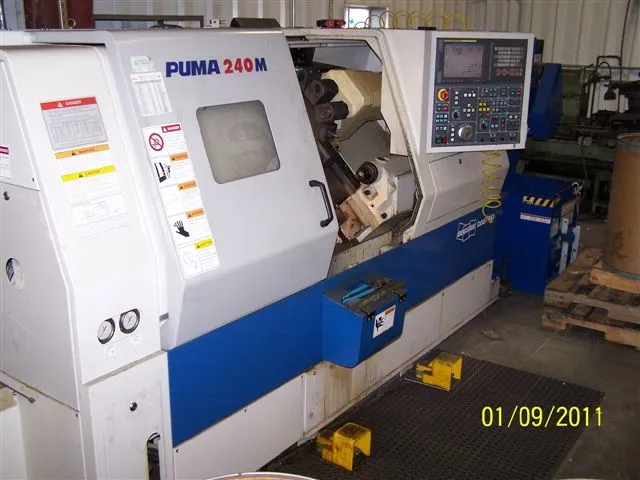

DAEWOO PUMA 240MC - LIVE TOOLING CNC LATHE, TAILSTOCK

DAEWOO PUMA 240MC - LIVE TOOLING CNC LATHE, TAILSTOCK

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DAEWOO
Model:
PUMA 240MC
Year:
2006
Stock #:
3120
Status:
For Sale

Description

DAEWOO PUMA 240MC WITH LIVE TOOLING CNC LATHE INCLUDES TAILSTOCK, FANUC 21I-TB, CONTROL
10" CHUCK (NEW IN BOX), WITH 3" BAR CAPACITY.

Maximum Swing21.7"551.18 mm
Max Turning Diameter19.7"500.38 mm
Main Spindle Bore/Max Bar Capacity3.54/ 3.033.54/ 3.03
Tail Stock/Sub SpindleTail StockTail Stock
Maximum Swing Over Cross Slide15.4"391.16 mm
Distance Between Centers20"508 mm
Maximum Cutting Length19.7"500.38 mm
X-Axis Travel (X1, X2, X3)8.38.3
Z-Axis Travel (Z1, Z2, Z3)22.822.8
C-Axis Indexing (1, 2).001.001
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.54"89.916 mm
Main Spindle Maximum Bar Work3.03"76.962 mm
Main Spindle Speed3,500 RPM3,500 RPM
Turret Tool Positions 1, 21212
B Axis Rotary Tool Spindle Speed5,000 RPM5000 rpm
B-Axis Rotary Tool Spindle Horsepower7.5 hp
Parts CatcherYesYes
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
(HQR) Standard Chuck Dia. Main Spindle (L)10"254 mm
ControlCNC (FANUC 21I-TB)CNC (FANUC 21I-TB)
Weight97009700

SPECIFICATIONS:
SWING OVER BED                    21.7"
SWING OVER CARRIAGE               15.4"
MAXIMUM TURNING LENGTH            19.7"
SPINDLE NOSE                      A2-8
SPINDLE BORE                      3.54"
DRAW TUBE I.D                     3.03"
SPINDLE SPEED                     3,500 RPM
SPINDLE MOTOR                     25HP
TURRET TOOL POSITIONS             12
ROTATING TOOL                     7.5 HP
ROTATING TOOL SPEED               5000 RPM
MACHINE WEIGHT                    9,710 LBS.

FANUC 21I-TB CONTROL
10" CHUCK (NEW IN BOX)
TOOL SETTER
PARTS CATCHER
MISC LIVE & STANDARD HOLDERS
TAILSTOCK
CHIP CONVEYOR
