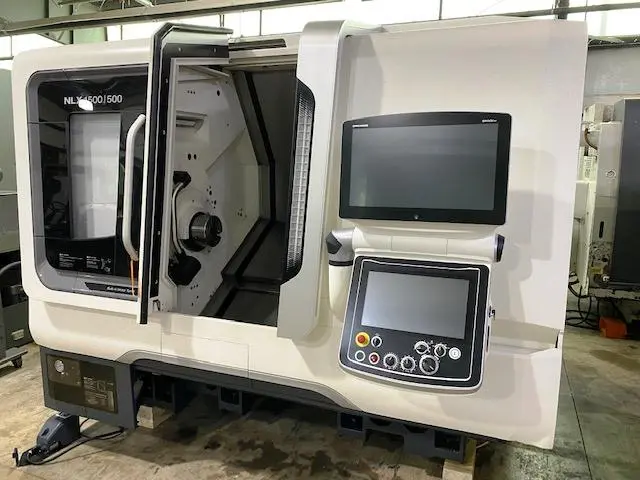

DMG MORI NLX 1500Y/500

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DMG-MORI
Model:
NLX 1500Y/500
Year:
2018
Stock #:
5658
Status:
For Sale

Description

THIS 2018 DMG MORI NLX 1500Y/500 CNC LATHE FEATURES A CELOS CONTROL, 2 LIVE TOOL HOLDERS, 0.0001 C-AXIS, 6" CHUCK, 6000 RPM AND 1000 PSI CHIPBLASTER.

Maximum Swing36.4"924.56 mm
Max Turning Diameter15.1"383.54 mm
Main Spindle Bore/Max Bar Capacity2.4/ 2.02.4/ 2.0
Tail Stock/Sub SpindleTail StockTail Stock
Distance Between Spindles20.2"513.08 mm
X-Axis Travel (X1, X2, X3)10.2"10.2"
Z-Axis Travel (Z1, Z2, Z3)23.2"23.2"
Y-Axis Travel (Y1, Y2, Y3)3.9"3.9"
C-Axis Indexing (1, 2).0001.0001
Main Spindle Chuck Size6"152.4 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.4"60.96 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed6,000 RPM6,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)2020
Turret Tool Positions 1, 21212
B Axis Rotary Tool Spindle Speed10,000 RPM10000 rpm
B-Axis Rotary Tool Spindle Horsepower7.5 hp
Chip ConveyorYesYes
Chip ConveyorSideSide
High Pressure Coolant System (PSI)10001000
Number of Available Live Tool Holders22
(HQR) Standard Chuck Dia. Main Spindle (L)6"152.4 mm
ControlCNC (CELOS CNC CONTROL)CNC (CELOS CNC CONTROL)
Weight11,000 LBS11,000 LBS

SPECIFICATIONS:
SWING OVER BED         36.4"
TURNING DIAMETER       15.1"
TURNING LENGTH         20.2"
CHUCK SIZE             6"
SPINDLE NOSE           A2-5
SPINDLE BORE DIAMETER  2.4"
BAR CAPACITY           2.0"
SPINDLE SPEEDS         6000 RPM
SPINDLE HORSEPOWER     20 HP
X - AXIS TRAVEL        10.2"
Z - AXIS TRAVEL        23.2"
Y - AXIS TRAVEL        3.9"
C - AXIS INDEXING      .0001 DEGREES
RAPID TRAVERSE RATES   1181 IPM
RAPID TRAVERSE RATES   1181 IPM
RAPID TRAVERSE RATES   393 IPM
TURRET TOOL POSITIONS  12
ROTARY TOOL SPEED      10000 RPM
TURRET ROTARY TOOL HP  7.5 HP
TAILSTOCK TAPER        MT 4
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL       22.2"
MACHINE WEIGHT         11,000 LBS.

CELOS CNC CONTROL
(2) LIVE HOLDERS, 1 AXIAL 1 RADIAL
CHIP BLASTER HIGH PRESSURE COOLANT SYSTEM
CHIP CONVEYOR
FULL COMPLIMENT OF STATIC TOOL HOLDERS
TOOL PRESETTER
ALL AVAILABLE MANUALS
