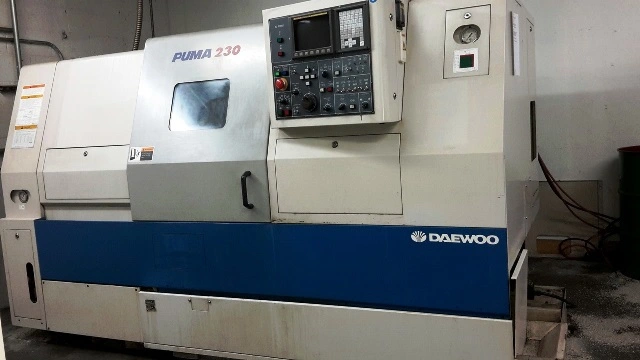

DOOSAN PUMA 230C

DOOSAN PUMA 230C
NEW 2001

SPECIFICATIONS:
SWING OVER BED          20.1"
MAX TURNING DIAMETER    13.78"
MAX TURNING LENGTH      21.57"
MAX BAR CAPACITY        3.0"
X AXIS TRAVEL           9.53"
Z AXIS TRAVEL           22.83"
RAPID TRAVERSE X AXIS   87 IPM
RAPID TRAVERSE Z AXIS   1000 IPM
SPINDLE NOSE            A2-8
SPINDLE BORE            3.54
SPINDLE SPEED           35 - 3500 RPM
SPINDLE MOTOR           15/18.5 KW
TURRET CAPACITY         10 STATIONS
TURRET INDEX TIME       0.1 SECOND
TAILSTOCK TAPER         MT-4
TAILSTOCK  QUILL DIA.   2.95"
TAILSTOCK QUILL TRAVEL  3.15"
POWER                   220V / 3-PHASE
OVERALL DIMENSIONS      117" X 64" X 69" HIGH
WEIGHT                  9400 LBS
