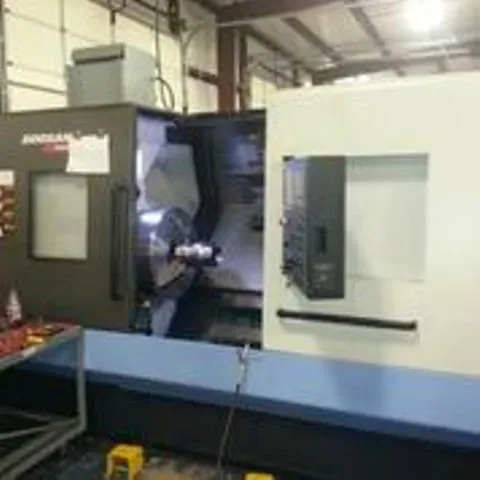

DOOSAN PUMA 480

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
DOOSAN
Model:
PUMA 480
Year:
2012
Stock #:
3527
Status:
For Sale
Serial #:
ML0144-000376

Description

THIS DOOSAN PUMA 480 HAS A 24" CHUCK WITH 6.5' BAR CAP, FANUC 32i CONTROL WITH 1500 RPM SPINDLE.

Max. Swing35.5"901.7 mm
Max Turning Diameter26"660.4 mm
Spindle Bore/Max Bar Capacity7.1"/ 6.5"7.1"/ 6.5"
Z Travel40"1,016 mm
X Travel14.3"363.22 mm
Machining Length39"990.6 mm
Chuck Size24"609.6 mm
Chuck TypeHydraullicHydraullic
Spindle Motor60 hp
Spindle Speeds (RPM)15001500
Spindle Bore7.1 in
Max. Bar Capacity6.5"165.1 mm
Turret Tool Positions1010
TailstockYesYes
ControlCNC (FANUC 32i)CNC (FANUC 32i)

SPECIFICATIONS:
MAXIMUM SWING:          35"
TURN DIAMETER:          26"
MACHINING LENGTH:       39"
SPINDLE BORE:           7.1"
BAR CAPACITY:           6.5"
CHUCK SIZE:             24"
SPINDLE SPEED:          1500 RPM
MAIN MOTOR:             60 HP
TURRET POSITION:        10
LIVE TOOLING/MILLING:   NO

FANUC SERIES 32I MODEL A CNC CONTROL
24” CHUCK
7.1” BORE
2 SPEED GEAR BOX
CHIP CONVEYOR
