DOOSAN PUMA 480LM
Have one to sell?
ConditionUsed
1 available

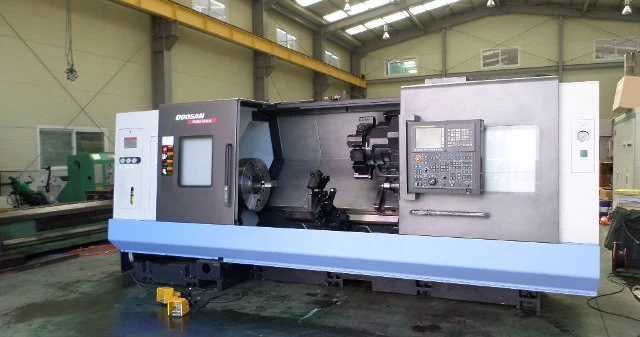

THIS BIG DOOSAN PUMA 480LM CNC LATHE WITH FANUC CONTROL HAS 80" CENTERS, TAILSTOCK, 24" HYDRAULIC CHUCK, STEADY REST AND A 6.62" BAR CAPACITY.
SPECIFICATIONS:
MAX. SWING 35.4"
SWING OVER CARRIAGE 28.34"
MAX. TURNING DIA. (SHAFT) 25.54"
MAX. TURNING DIA. (CHUCKING) 35.4"
MAX SHAFT LENGTH 82.4"
SPINDLE BORE DIA. 7.12"
X-AXIS TRAVEL 14.25"
Z-AXIS TRAVEL 83.5
C-AXIS 0.001 N/C
SPINDLE NOSE A2-15"
SPINDLE SPEED 1500 RPM
SPEEDS 2-SPEED GEAR BOX
SPINDLE TORQUE 2944 FT-LBS 107
TURRET CONFIGURATION 12
RAPID TRAVERSE 550/710 IPM
ROTARY TOOL POSITIONS 12
ROTARY TOOL HORSEPOWER 20 HP AC
ROTARY TOOL SPEEDS 4000 RPM
TAIL STOCK DIA. 4.7"
TAIL STOCK QUILL STROKE 4.7"
PROGRAMABLE T.S. BODY /
TRAVEL STANDARD / 39.4"
MAIN MOTOR 60 HP AC
MACHINE WEIGHT 25,800 LBS.
FANUC 32ITA CNC CONTROL
24" 3-JAW HYDRAULIC CHUCK W/ 6.62" THRU HOLE
TOOL SETTER
FULLY PROGRAMABLE BODY AND QUILL TAILSTOCK
(2) X - AXIS (2) Z - AXIS
STEADY REST (1.37" - 9.645")
CHIP CONVEYOR
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOL HOLDERS & MANUALS
**** 25 CUTTING HOURS ****
THIS BIG DOOSAN PUMA 480LM CNC LATHE WITH FANUC CONTROL HAS 80" CENTERS, TAILSTOCK, 24" HYDRAULIC CHUCK, STEADY REST AND A 6.62" BAR CAPACITY.
Imperial
| Maximum Swing | 35.4" |
| Max Turning Diameter | 25.54" |
| Main Spindle Bore/Max Bar Capacity | 7.12/ 6.62 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 28.34" |
| Maximum Cutting Length | 82.4" |
| X-Axis Travel (X1, X2, X3) | 14.25" |
| Z-Axis Travel (Z1, Z2, Z3) | 83.5" |
| C-Axis Indexing (1, 2) | .001 N/C |
| Main Spindle Chuck Size | 24" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 7.12" |
| Main Spindle Maximum Bar Work | 6.62" |
| Main Spindle Speed | 1,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 60 |
| Turret Tool Positions 1, 2 | 12 |
| B Axis Rotary Tool Spindle Speed | 4000 rpm |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Number of Available Live Tool Holders | 4 |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 24" |
| Control | CNC (FANUC 32i-TA) |
SPECIFICATIONS:
MAX. SWING 35.4"
SWING OVER CARRIAGE 28.34"
MAX. TURNING DIA. (SHAFT) 25.54"
MAX. TURNING DIA. (CHUCKING) 35.4"
MAX SHAFT LENGTH 82.4"
SPINDLE BORE DIA. 7.12"
X-AXIS TRAVEL 14.25"
Z-AXIS TRAVEL 83.5
C-AXIS 0.001 N/C
SPINDLE NOSE A2-15"
SPINDLE SPEED 1500 RPM
SPEEDS 2-SPEED GEAR BOX
SPINDLE TORQUE 2944 FT-LBS 107
TURRET CONFIGURATION 12
RAPID TRAVERSE 550/710 IPM
ROTARY TOOL POSITIONS 12
ROTARY TOOL HORSEPOWER 20 HP AC
ROTARY TOOL SPEEDS 4000 RPM
TAIL STOCK DIA. 4.7"
TAIL STOCK QUILL STROKE 4.7"
PROGRAMABLE T.S. BODY /
TRAVEL STANDARD / 39.4"
MAIN MOTOR 60 HP AC
MACHINE WEIGHT 25,800 LBS.
FANUC 32ITA CNC CONTROL
24" 3-JAW HYDRAULIC CHUCK W/ 6.62" THRU HOLE
TOOL SETTER
FULLY PROGRAMABLE BODY AND QUILL TAILSTOCK
(2) X - AXIS (2) Z - AXIS
STEADY REST (1.37" - 9.645")
CHIP CONVEYOR
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOL HOLDERS & MANUALS
**** 25 CUTTING HOURS ****
