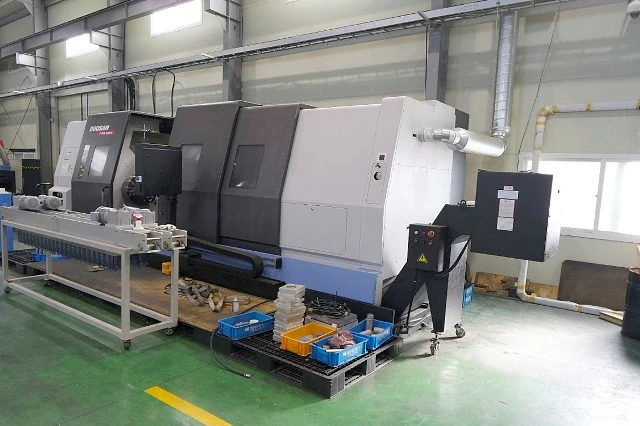

DOOSAN PUMA 600LM CNC TURNING AND MILLING CENTER

SPECIFICATIONS:
MAX. SWING                        40.5"
MAX. TURNING DIA. (SHAFT WORK)    31.5"
MAX. TURNING DIA. (CHUCKING)      35.4"
DISTANCE BETWEEN CENTERS          125.9"
SPINDLE BORE DIA.                 5.98"
X-AXIS TRAVEL                     18.5"
Z-AXIS TRAVEL                     127.36"
SPINDLE NOSE                      A2-15"
SPINDLE SPEEDS                    1,800 RPM
GEAR RANGES                       3
SPINDLE TORQUE                    3,998 FT-LBS
TURRET CONFIGURATION              12
ROTARY TOOL HORSE POWER           15 HP
MAXIMUM TORQUE                    103 FT/LBS.
MAXIMUM TOOL RPM                  3,000 RPM
RAPID TRAVERSE                    400/630 IPM
TAIL STOCK DIA.                   6.3"
TAIL STOCK QUILL STROKE           5.9"
PROGRAMABLE T.S. BODY             STANDARD
TAILSTOCK TRAVEL                  101.98"
MAIN MOTOR                        60 HP AC
MACHINE WEIGHT                    48,000 LBS.
